Axis M3905-R 1080p Dome Camera (10-Pack)

Axis Communications M3905-R RJ45 2.8mm Overview

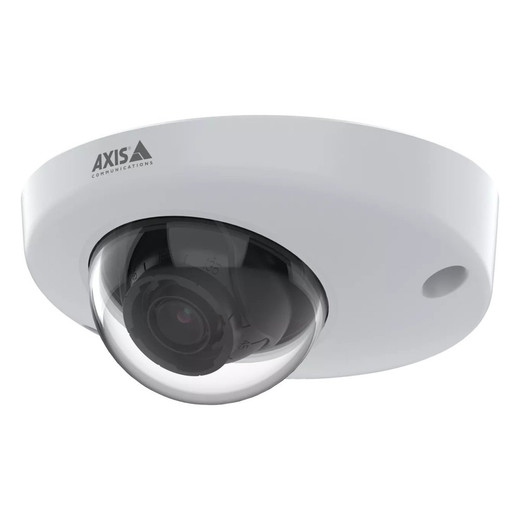

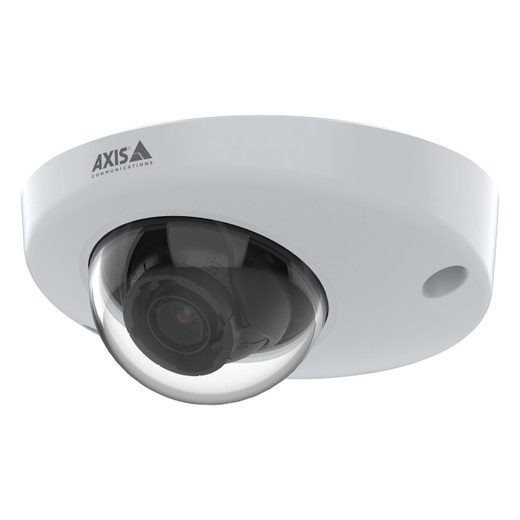

The AXIS M3905-R RJ45 2.8mm is a compact 1080p fixed dome onboard camera designed for mobile and stationary deployments requiring robust network-based video capture. Supplied as a bulk 10-pack (MPN 03118-021), this camera combines a fast 2.8mm F1.2 fixed lens with an IP66/IP67 rated rugged enclosure, making it suitable for demanding indoor and outdoor environments. The integrated RJ45 network connector on the pigtail provides direct Ethernet connectivity without requiring additional adapters.

Axis Communications M3905-R RJ45 2.8mm Key Features

• 1080p (2 MP) Resolution: Captures full HD video at 1920x1080 across multiple configurable resolutions including 16:9 (1920x1080 to 640x360), 16:10 (1280x800 to 640x400), and 4:3 (1280x960 to 320x240) aspect ratios for flexible deployment scenarios.
• Fast F1.2 Fixed Lens (2.8mm): Wide 107° horizontal and 56° vertical field of view with F1.2 aperture optimized for low-light performance. Minimum focus distance of 0.3m (1 ft) enables close-range monitoring. M12 mount with fixed iris.
• Advanced Low-Light Performance: Minimum illumination as low as 0.02 lux at 30 fps with F1.2 aperture (color), or 0.07 lux at 50 Hz. Forensic WDR supports dynamic range up to 120 dB depending on scene, with selectable noise reduction via spatial (2D) and temporal (3D) filtering.
• Multi-Codec Video Streaming: Supports H.264 (MPEG-4 Part 10/AVC Main and High Profiles), H.265 (MPEG-H Part 2/HEVC Main Profile), and Motion JPEG compression. Frame rates reach 25/30 fps (50/60 Hz) for H.264 and H.265 across all resolutions; Motion JPEG at 15 fps. Zipstream technology enables configurable frame rate and bandwidth optimization via VBR/ABR/MBR modes.
• Up to 4 Configurable Video Streams: Delivers multiple individually configurable streams in H.264, H.265, and Motion JPEG simultaneously, supporting diverse client and storage requirements. Maximum of 3 unique streams recommended for optimized user experience and bandwidth utilization.
• Rugged IP66/IP67 Rating: Sealed enclosure protects against dust, low-pressure water jets, and temporary immersion, suitable for outdoor and harsh industrial environments without compromise to optical clarity.
• Advanced Mechanical Positioning: Pan ±30°, tilt 15–90°, rotation ±175° with digital PTZ, preset positions, guard tour functionality, and control queue management for flexible coverage without motorized adjustments.
• Comprehensive Image Control: Includes compression, brightness, sharpness, contrast, white balance, exposure control with multiple zones, ForensicWDR, image rotation (0°, 90°, 180°, 270°) with corridor format support, dynamic overlay, 32 individual polygonal privacy masks, and image mirroring.
• Scene Profiles: Selectable forensic, vivid, and traffic overview profiles optimize image processing for specific deployment contexts.
• High-Performance SoC (S6LM55): Onboard System-on-Chip with 1024 MB RAM and 512 MB Flash enables edge processing, Zipstream, ForensicWDR, and Lightfinder technologies without external compute resources.
• Robust Shutter Control: Adjustable electronic shutter speeds from 1/19000 s to 1/5 s (with WDR) or 1/17000 s to 1/5 s (without WDR) deliver precise exposure across extreme lighting conditions.
• Included Lens Tool: Bulk pack includes dedicated lens adjustment tool for field focus and iris adjustments without requiring additional equipment.

Axis Communications M3905-R RJ45 2.8mm Integration & Compatibility

The M3905-R integrates with ONVIF-compliant video management systems and supports standard network surveillance platforms. RJ45 connectivity via integrated pigtail connector enables direct PoE+ integration into standard Ethernet networks. Digital PTZ, preset positions, and guard tour controls are accessible through compatible NVR and VMS software supporting ONVIF protocols. The camera's multi-format video output (H.264, H.265, Motion JPEG) ensures broad compatibility across legacy and modern recording and playback systems.

Axis Communications M3905-R RJ45 2.8mm Package Contents

• 10x AXIS M3905-R RJ45 2.8mm cameras
• Lens tool
