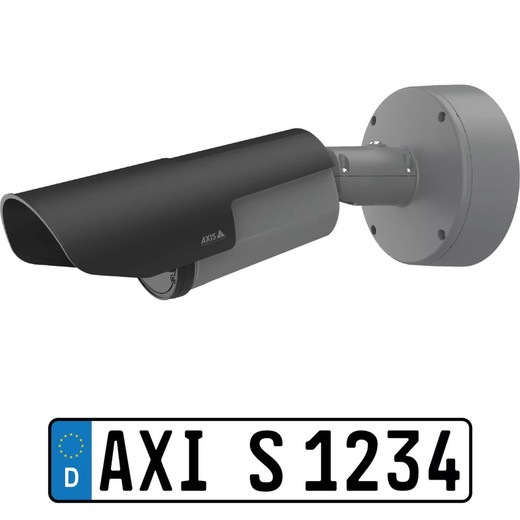

Axis Communications Q1800-LE-3 License Plate Verifier Kit Overview
The Axis Q1800-LE-3 is a purpose-built, outdoor license plate capture system designed for high-speed vehicle identification in traffic enforcement, parking management, and access control applications. This robust 2 MP/1080p fixed bullet camera combines a varifocal lens with integrated License Plate Verifier application software to deliver accurate plate detection and recognition from vehicles traveling at speeds up to 200 km/h (124 mph) at capture distances of 20–100 meters. Built to NEMA 4X, IP66, and IK10 specifications, the Q1800-LE-3 withstands harsh outdoor environments, vandalism, and extreme temperatures from -40°C to +60°C.
Axis Q1800-LE-3 Key Features
- Integrated License Plate Verifier Application: Preinstalled edge-based recognition software with configurable allow/block list logic, barrier modes (open to all, allowlisted, or blocklisted), event logging up to 1,000 entries with thumbnail images on camera storage, and detection time under 1 second.
- High-Performance Varifocal Lens: 7–137 mm varifocal with 20x optical zoom, F1.5–4.0 aperture, 38° to 2.3° horizontal field of view, P-Iris control, and remote zoom and focus for precise framing. Minimum focus distance of 1.2 meters enables flexible mounting and targeting.
- Optimized Day/Night Imaging: OptimizedIR with power-efficient 850 nm LED technology provides 0.06 lux color and 0.01 lux B/W capture at F1.5, with automatic IR-cut filter switching between day and night modes. Day and night color imaging ensures readable license plates in all lighting conditions.
- 1/2.8-inch Progressive Scan Sensor: RGB CMOS sensor with 2.9 µm pixel size and advanced image processing delivers sharp, high-contrast plate images optimized for optical character recognition.
- Flexible Deployment Capabilities: Supports mounting heights up to 10 meters with distance to road up to 10 meters, and automatic tilt and roll angle detection simplifies field installation. Traffic Camera Installation Assistance optimizes video settings based on mounting height, vehicle distance, and expected speed.
- Dual Video Compression and High Frame Rates: H.264 and H.265 compression with Zipstream technology reduces bandwidth up to 50% while maintaining quality. Delivers 1080p at up to 90 fps in corridor format with electronic imaging stabilization and motion JPEG support for flexible recording and archival.
- Advanced Analytics and Event Management: AXIS Object Analytics, video motion detection, shock detection, and active tampering alarms protect against camera interference. FIFO event logging stores up to 1,000 license plate captures with images; integration with AXIS Surveillance Cards extends storage to 100,000 entries with configurable retention.
- Industrial-Grade Weatherproofing: NEMA 4X, IP66, and IK10 ratings provide protection against dust, moisture, and impact. IP66-rated cable glands and optional IDC punch connectors ensure sealed installation. Barrel distortion correction and defogging enhance image clarity in adverse conditions.
- Enterprise Cybersecurity: AXIS Edge Vault with FIPS-certified TPM secures sensitive plate data and ensures firmware integrity through signed boot and secure storage of credentials.
- Flexible Power and I/O Options: Powered via PoE Class 4 (IEEE 802.3at), 10–28 V DC, or 20–24 V AC. Audio input and supervised I/O port enable integration with access control and alarm systems. 30W PoE out supports downstream powered devices. microSD memory card slot provides local backup storage.
- System Integration and API Support: Open API and event streaming enable seamless integration with camera management systems, I/O control, and notifications. Direct integration with Axis network door controllers and A91 Network I/O Relay Modules for automated gate or barrier control.
- Deep Learning Processing: On-board Deep Learning Processing Unit (DLPU) offloads AI inference to the edge, enabling real-time analytics without external servers.
Axis Q1800-LE-3 Integration and Compatibility
The Q1800-LE-3 supports open standards for broad VMS integration. Event streaming integrates with standard camera management platforms to trigger I/O actions, send notifications, and activate edge storage. Direct API integration with Axis network door controllers and A91 Network I/O Relay Modules enables automated access control workflows. MQTT support facilitates integration with enterprise IoT and event management systems. Web-based configuration allows remote zoom, focus, and camera settings adjustment without on-site visits.
Axis Q1800-LE-3 Package Contents
- AXIS Q1800-LE-3 License Plate Verifier Kit (camera unit with preinstalled License Plate Verifier application)
- Integrated wall and ceiling mounting bracket
