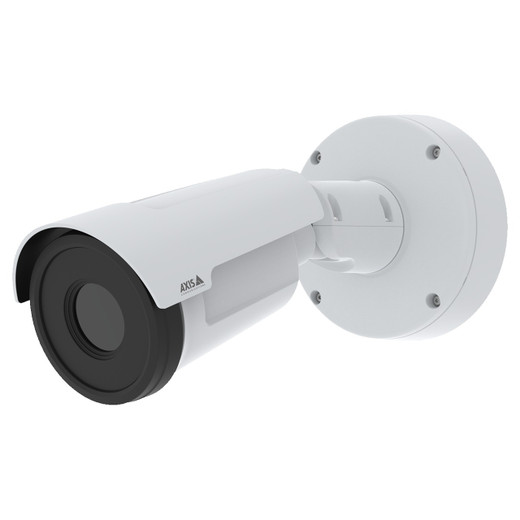

Axis Bullet Camera 384x288

Axis Communications 02949-001 Overview

The Axis Communications 02949-001 is a fixed-mount outdoor thermal network camera engineered for perimeter security, critical infrastructure monitoring, and harsh-environment surveillance. Rated IK10 for extreme impact resistance and IP66/IP67 for complete dust and water ingress protection, this camera delivers thermal imaging in QVGA resolution (384x288 pixels) with NETD thermal sensitivity below 30 mK at 25°C, enabling reliable detection and identification across temperature extremes, darkness, fog, and obscured visibility conditions where visible-light cameras fail. The camera integrates ARTPEC-8 processing, Zipstream bandwidth optimization, and support for AXIS Camera Application Platform, positioning it as a turnkey solution for integrators deploying large-scale thermal surveillance networks with minimal infrastructure overhead.

Axis Communications 02949-001 Key Features

• Thermal imaging with F1.0 optics: QVGA (384x288) thermal sensor with sub-30 mK NETD sensitivity at 25°C and F1.0 aperture captures temperature-based detection independent of ambient lighting, fog, rain, or dust—ideal for perimeter fencing, building envelope monitoring, and critical asset protection.
• Extreme environmental durability: IK10 rated for impact resistance up to 20 joules (equivalent to 5 kg dropped from 40 cm), IP66/IP67 sealed enclosure, NEMA 4X stainless-steel construction, and MIL-STD-810H compliance (Section 521.4 vibration) ensure deployment in offshore platforms, power plants, border fences, and industrial zones subject to severe weather and mechanical stress.
• Dual compression codecs with Zipstream: H.265 and H.264 video encoding with Axis Zipstream technology reduce bandwidth consumption by up to 50% compared to standard compression, enabling high-frame-rate thermal surveillance over congested or limited-capacity WAN links without sacrificing storage efficiency.
• Multi-modal analytics and detection: Video Motion Detection (VMD), audio detection via supervised audio input, and shock detection trigger alerts on environmental anomalies. Support for AXIS Camera Application Platform enables installation of AXIS Perimeter Defender with AI-based intrusion detection, loitering prevention, and direction-of-travel analytics—extending thermal surveillance beyond simple motion to intelligent threat classification.
• Flexible I/O and local storage: Two supervised digital I/O ports integrate external sensors (door contacts, fence vibration detectors, siren triggers) with tamper-resistant logic; local storage support accommodates microSD recording for mission-critical footage retention independent of network connectivity.
• Audio input capability: Integrated audio input supports external microphones or line-level audio feeds, enabling synchronized audio-thermal logs for incident reconstruction and forensic investigation.
• ONVIF compliance and integration-ready: Full ONVIF Profile S support ensures plug-and-play compatibility with third-party VMS platforms (Milestone, Genetec, Hanwha, etc.), eliminating proprietary lock-in and enabling rapid deployment into existing security ecosystems.
• Electronic Image Stabilization (EIS): Compensates for thermal drift, building sway, and mechanical vibration caused by wind or traffic, maintaining stable image registration for accurate long-term motion detection and AI analytics.
• EU-sourced thermal sensor with export compliance: Thermal image sensor manufactured within the European Union and subject to EU export control regulations. Compliant integrators and end-users must verify local export authorization before deployment to restricted jurisdictions.
• Sustainable, halogen-free design: Free from PVC, BFR (brominated flame retardants), and CFR (chlorofluorocarbons), meeting RoHS and environmental compliance requirements for critical infrastructure and government procurement mandates.

Axis Communications 02949-001 Integration & Compatibility

The 02949-001 supports ONVIF Profile S, enabling seamless integration with leading Video Management Systems (VMS) including Milestone XProtect, Genetec Security Center, Hanwha SmartVMS, and open-source platforms. ARTPEC-8 processor architecture supports both H.265 and H.264 encoding simultaneously, allowing live thermal streaming to modern clients while archiving H.264 for legacy system compatibility. AXIS Camera Application Platform (ACAP) enables deployment of AXIS Perimeter Defender for AI-based thermal intrusion detection, reducing false alarms from animals, vegetation movement, and weather effects common in unattended outdoor environments. Two-way audio input supports external microphones for integrated audio-thermal event correlation. Ethernet 10/100/1000 Base-T connectivity supports both standard PoE and direct IP network integration; consult Axis power specifications for PoE class requirements. Wall and ceiling mount compatibility accommodates eave-mounted, pole-mounted, and direct-surface installations typical of perimeter fence lines, building rooflines, and maritime platforms. ONVIF compliance ensures future-proof platform independence and avoids single-vendor dependencies.
