Axis F4105-SLRE Stainless Steel Mini-Dome Sen

Axis Communications AXIS F4105-SLRE Overview

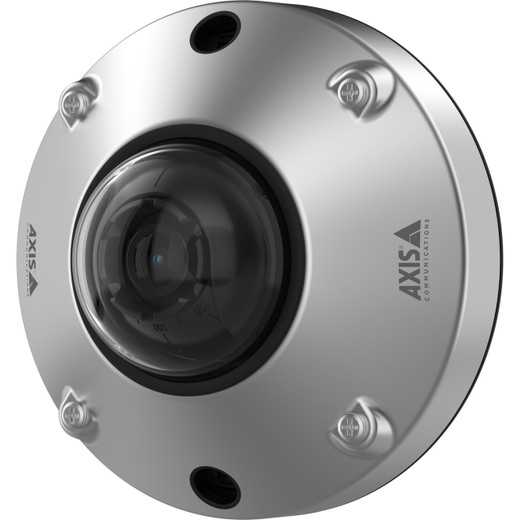

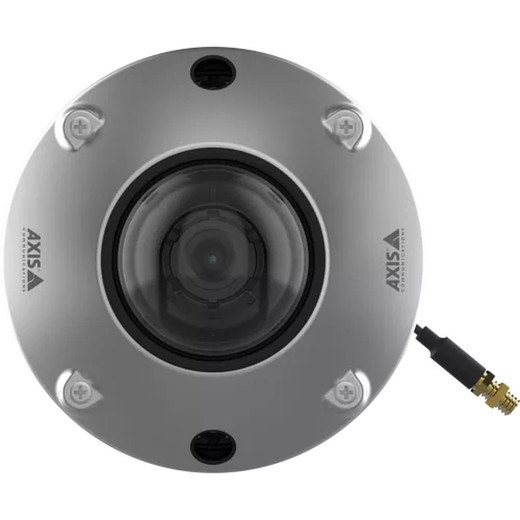

The AXIS F4105-SLRE is a 1080p mini-dome sensor engineered for hygienic, corrosion-prone environments such as food and beverage processing plants and catering facilities. Housed in electropolished SS 316L stainless steel with polycarbonate hard-coated dome and IK10 impact resistance, this compact sensor delivers rugged IP66, IP67, and IP69-rated performance outdoors and in wash-down environments. The 02927-021 bulk pack includes 8 units, optimizing transport costs and storage footprint for integrators deploying multi-camera systems.

Axis Communications AXIS F4105-SLRE Key Features

• Food & Beverage Industry Certification: NFS/ANSI Standard 169 certified (Certificate C0759806) for food processing, beverage production, and catering applications, ensuring compliance with hygiene and safety standards.
• Stainless Steel Construction: Electropolished SS 316L casing with captive stainless steel screws, polycarbonate hard-coated dome, and dehumidifying membranes for durability in high-moisture, corrosive, or salt-spray environments.
• 1080p Full HD Resolution: Captures maximum 1920x1080 HDTV at up to 60 fps in 1080p mode, or up to 180 fps in 720p mode (requires AXIS F9111 main unit) for high-frame-rate motion capture and incident review.
• Detachable M12 Lens System: Ships with 2.8mm, F1.6 fixed lens (110° horizontal FOV at 1080p, 60° vertical) with option to purchase alternative M12 lenses separately for different horizontal field of view and focal length configurations to match specific deployment layouts.
• Built-in Infrared Illumination: Two individually adjustable 940nm IR LEDs provide low-light capability with 10+ meters (33+ feet) reach depending on scene reflectivity; automatic infrared-cut filter removes IR during day operation and deploys for night vision.
• Exceptional Weatherproofing & Impact Resistance: IP66, IP67, and IP69 ratings certified per IEC 60529 and NEMA 250 Type 4X; IK10 impact resistance per IEC/EN 62262 protects against vandalism and accidental contact in harsh production environments.
• Low Power Consumption: Typical 1.9 W and maximum 4.16 W operation reduces energy overhead in large multi-camera deployments.
• Minimum Illumination: 0.3 lux at 50 IRE with F2.0 aperture in color mode, 0 lux with IR illumination enabled for continuous monitoring in near-total darkness.
• Adjustable Pan, Tilt, and Rotation: Pan ±180°, tilt 120°, rotation ±90° via mounting bracket for flexible installation on walls, ceilings, or junction boxes (single-gang compatible).
• Environmental Robustness: Rated for operating temperatures -30°C to 55°C (-22°F to 131°F); tested to IEC 60068-2 standards for thermal shock, vibration, moisture, and salt-fog resistance ensuring long-term reliability in production facilities.
• Global Compliance & Sustainability: UL, CE, KC, NFS, VCCI, RCM, and WEEE certifications; PVC and BFR/CFR-free materials; RoHS and REACH compliant; TAA-compliant for U.S. federal procurement.

Axis Communications AXIS F4105-SLRE Integration & Compatibility

The AXIS F4105-SLRE sensor integrates with Axis F-series main units (AXIS F9114-B and F9111) to deliver networked video surveillance over standard IP infrastructure. The sensor outputs uncompressed video to the paired main unit for encoding and compression (H.265, H.264, MJPEG, or Zipstream) before transmission. ONVIF compliance enables integration with third-party VMS platforms and video management software. SMA connector supports standardized network cabling for secure, low-latency capture in food processing plants requiring FDA and FSMA compliance documentation.

Axis Communications AXIS F4105-SLRE Package Contents

• 8x AXIS F4105-SLRE Dome Sensor units (stainless steel casing, 2.8mm M12 lens, built-in IR, mounting bracket with junction box holes)
