Axis AXIS F2115-R Varifocal Modular Camera

Axis Communications F2115-R Varifocal Sensor Overview

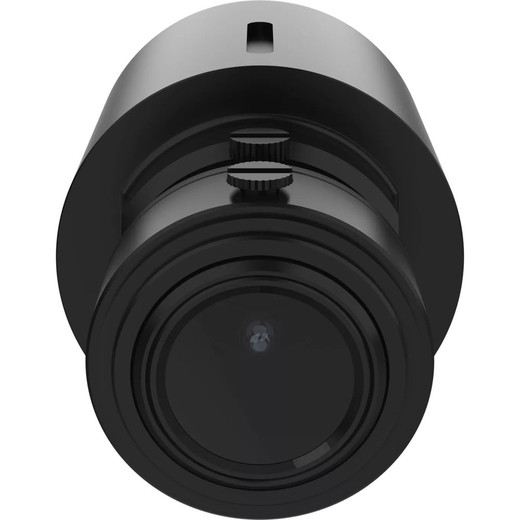

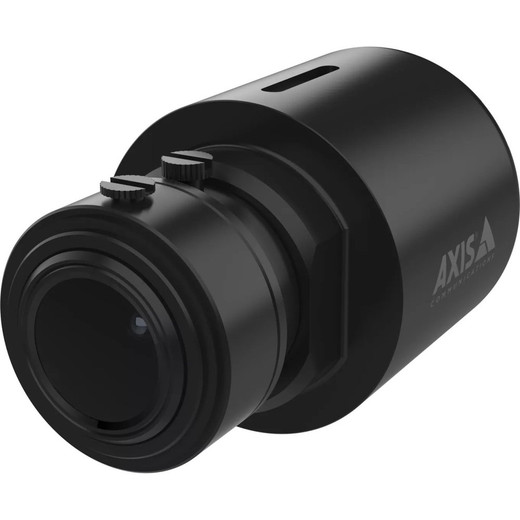

The Axis F2115-R Varifocal Sensor is a modular image sensor component designed for integration into Axis F-series camera systems. This compact sensor module delivers flexible focal length adjustment via its 3.2-5.7mm varifocal lens (F2.2-F3.1 aperture), enabling field-adjustable framing without requiring multiple fixed-lens units. The F2115-R is supplied here as a bulk 8-pack (part number 02639-021), optimizing procurement and logistics for system integrators and installers managing multi-camera deployments.

Axis F2115-R Varifocal Sensor Key Features

• Varifocal 3.2-5.7mm lens with wide-angle coverage: Horizontal field of view ranges from 107.4° (at 1080p) to 56.3° (at 1080p) across the focal range, accommodating both wide-area monitoring and targeted detail capture without lens swaps.
• Progressive-scan 1/2.8" CMOS image sensor: Delivers clean, motion-artifact-free video capture with excellent low-light sensitivity (0.1 lux color minimum illumination) and true day/night operation via fixed IR-cut filter.
• Up to 60/50 fps at 1080p; 180/175 fps at 720p: Frame rate scales with capture mode and selected main unit, supporting both smooth full-motion surveillance and high-speed analytics workloads when paired with compatible main units (F9111, F9111-R MkII).
• Fixed iris and M12 mount: Simplified mechanical design with M12 connector for secure, tool-free field installation; fixed iris reduces complexity and ensures consistent exposure across varying light conditions.
• IP50 environmental rating: Sealed design protects against dust and splash, suitable for indoor and covered outdoor deployments; operates reliably from -40°C to +60°C, with maximum operating temperature of 74°C per NEMA TS2.
• Low power consumption: Typical 1W draw, maximum 1.7W, enabling efficient PoE delivery and minimizing thermal dissipation in compact chassis.
• Modular form factor with bulk packaging: 8-pack format (02639-021) reduces per-unit material and transport costs while enabling standardized procurement across large multi-sensor deployments; 50g unit weight and 50mm length support space-efficient installation in densely-mounted arrays.
• Multiple frame-rate and WDR modes: Sensor pairs with F9111/F9111-R MkII main units supporting both standard and wide-dynamic-range capture modes, with independent shutter speeds up to 1/43500s for forensic detail preservation.

Axis F2115-R Varifocal Sensor Integration & Compatibility

The F2115-R sensor module is designed for use with Axis F-series main units, specifically the AXIS F9111 and AXIS F9111-R MkII. Capture mode specifications (resolution, frame rate, and WDR support) depend on the selected main unit. The sensor connects via SMA connector and integrates with standard Axis PoE infrastructure using AXIS TU6004-EC or AXIS TU6005 plenum cables. Environmental compliance covers EMC (EN55032 Class A, EN55035, EN61000-6-1, EN61000-6-2, FCC Part 15B Class A, ICES-3(A), VCCI Class A, CISPR35, KSC9832/9835, EAC), Safety (IEC/EN/UL 62368-1), and mechanical environment standards (IEC60068-2 series, IEC/EN60529 IP50, IEC/EN61373 Category 1 Class B, NEMA TS2). Consult Axis documentation and your main unit specifications for ONVIF profile, codec, and analytics capabilities.

Axis F2115-R Varifocal Sensor Package Contents

• AXIS F2115-R Varifocal Sensor module (qty. 8)
• Installation guide
