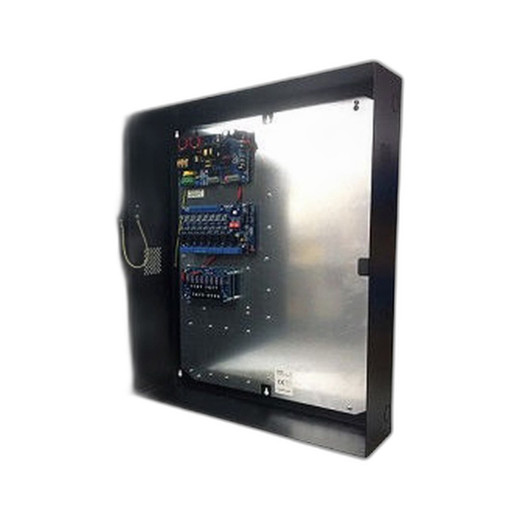

Altronix T2AGK3F8 8-Door Access Control Integration Kit

Altronix T2AGK3F8 8-Door Access and Power Integration Kit

Overview

The Altronix T2AGK3F8 is a comprehensive 8-door access and power integration solution combining the Trove2AG2 access control platform with the eFlow6NB network bridge, ACM8 module, VR6 reader interface, and PDS8 power distribution system. This kit is engineered for security integrators and IT managers deploying multi-door access control systems requiring coordinated power management, door control, and network connectivity. The T2AGK3F8 delivers pre-integrated hardware that reduces on-site configuration time while maintaining the flexibility needed for enterprise-grade facility protection.

Key Features

• 8-Door Capacity: Supports up to 8 controlled access points from a single integrated platform
• Trove2AG2 Core Platform: Advanced access control engine with real-time authorization and event logging
• eFlow6NB Network Bridge: Enables IP-based communication and remote system management across distributed facilities
• ACM8 Access Control Module: Manages door lock control, credential validation, and access policy enforcement
• VR6 Reader Interface: Supports multiple reader technologies and credential types for flexible authentication
• PDS8 Power Distribution: Centralized 8-output power management ensuring reliable voltage delivery to locks, readers, and controllers
• Integrated System Architecture: All components pre-configured and compatible, reducing integration complexity and field labor
• Scalable Design: Modular structure supports future expansion and integration with third-party IP security devices
• Enterprise-Grade Reliability: Built for commercial and institutional environments requiring 24/7 access control availability
• Audit Trail Capability: Complete event logging for compliance, forensics, and operational oversight

Integration and Compatibility

The T2AGK3F8 kit is purpose-built for integrators working with Altronix access control ecosystems. The eFlow6NB network bridge provides seamless IP communication, allowing the system to operate on standard Ethernet infrastructure alongside existing security cameras, intercoms, and network-attached sensors. The ACM8 module supports industry-standard door control protocols, enabling integration with electromagnetic locks, magnetic contacts, request-to-exit devices, and door position sensors. The VR6 reader interface accepts badge readers, keypad entry, biometric devices, and mobile credential platforms compatible with standard Wiegand and IP reader outputs. The PDS8 power distribution system delivers regulated voltage across all access points, eliminating the need for separate power supplies at each door location.

Package Contents

The Altronix T2AGK3F8 kit includes the Trove2AG2 access control platform, eFlow6NB network bridge module, ACM8 access control module, VR6 reader interface card, and PDS8 8-output power distribution unit. All components are factory-integrated and ready for deployment. Integrators should verify site-specific power requirements, network connectivity, and door control device compatibility before installation.

Ted Perry

I've evaluated the Altronix T2AGK3F8 during planning phases for mid-scale access control rollouts, and the kit approach significantly reduces integration overhead. Rather than sourcing and configuring individual components, the pre-integrated T2AGK3F8 arrives with core platform, network bridge, door control module, reader interface, and power distribution already aligned. This matters operationally—it cuts commissioning time and minimizes field compatibility issues.

Technical Highlights:

• Unified Power Architecture: The PDS8 distributes regulated voltage to all 8 doors from a single source, eliminating voltage drop across distributed lock circuits and ensuring consistent reader operation
• Network-Native Design: eFlow6NB bridge enables IP-based communication, allowing remote credential updates, real-time event notification, and centralized audit reporting across multi-site deployments
• Reader Flexibility: VR6 interface supports Wiegand, IP, and proprietary reader outputs, making it compatible with existing badge infrastructure and modern mobile credential platforms
• Modular Expansion: 8-door platform can be extended through network-connected additional modules without replacing core hardware

Deployment Considerations:

• Verify site electrical supply capacity before installation; PDS8 power budget must accommodate all connected locks and readers at maximum draw
• Plan network infrastructure early—eFlow6NB requires reliable Ethernet connectivity for real-time synchronization and remote management capability
• Test credential types (badges, keypads, biometric) against VR6 reader interface in lab before field deployment to confirm compatibility
• Commission door position sensors and request-to-exit devices at each controlled access point; ACM8 logic depends on accurate door state feedback

The T2AGK3F8 is well-suited for institutional and commercial deployments where integrators need rapid, reliable 8-door access control without building from individual components. It's a practical choice for facilities requiring both immediate deployment speed and long-term audit compliance.
