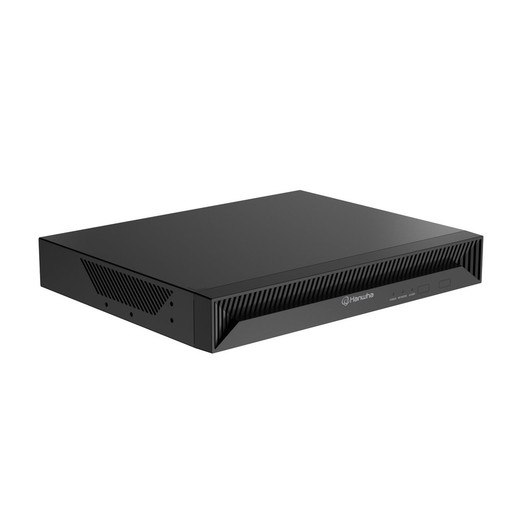

Hanwha AIB-800A-LU AI appliance with Lumeo Advanced Analytics.

Hanwha AIB-800A-LU Overview

The Hanwha AIB-800A-LU is an all-in-one edge AI appliance designed for distributed video analytics deployment. Built on NVIDIA Jetson Orin NX 8GB processor with 256GB NVMe SSD storage and Lumeo AI Gateway pre-installed, the AIB-800A-LU delivers on-premise intelligence while maintaining cloud connectivity for remote management and storage. Supports up to 10 camera channels and ships with 4 camera channels and 1 year enterprise license included. Ideal for security integrators and IT teams deploying scalable AI analytics across multiple sites without reliance on cloud-only processing.

Hanwha AIB-800A-LU AI Analytics & Integration

• NVIDIA Jetson Orin NX 8GB processor with JetPack v6 pre-configured
• Lumeo AI Gateway and Advanced Analytics pre-installed
• Supports up to 10 camera channel inputs (up to 8 direct channels)
• Object detection: Person, Face, Vehicle, License Plate
• Motion detection and IVA analytics: Virtual line/area, Enter/Exit, Loitering, Direction monitoring
• Encrypted edge-to-cloud connections for remote command and control
• Cloud storage integration: 7-day, 30-day, and 60-day options
• AI-powered forensic search: Natural language event and object search
• Hierarchy-based dashboard aggregation across multiple cameras and sites
• ONVIF Profile S compliant; TCP/IP, UDP/IP, RTSP, HTTPS, HTTP, DHCP, SNMP networking protocols
• Compatible with WAVE, Genetec, and Milestone VMS platforms

Hanwha AIB-800A-LU Physical & Environmental Specifications

• Form Factor: 1U rack-mount appliance (300W × 47.6H × 240.9D mm)
• Weight: 1.39 kg (3.06 lbs)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 20–85% RH
• Power Supply: 100–240VAC, 50/60Hz; 12V, 4A adapter included; 28W consumption
• Front Panel: LED status indicators (Power, Alarm, Network)
• Connectivity: 1× RJ-45 1Gbps Ethernet; 1× USB 3.0 (rear, debug); 8× alarm inputs with relay reset; 4× relay outputs (NO/NC/COM switchable)
• Operating System: Windows 11/10 or macOS 10.13
• Web Browser Support: Google Chrome, Microsoft Edge, Safari

Hanwha AIB-800A-LU Package Contents

• AIB-800A-LU AI appliance with Lumeo Advanced Analytics pre-installed
• NVIDIA Jetson Orin NX 8GB with 256GB NVMe SSD and JetPack v6
• 4× Camera Channels 1 Year Enterprise License
• 1U rack mount brackets
• Power supply (12V, 4A, 100–240VAC)
