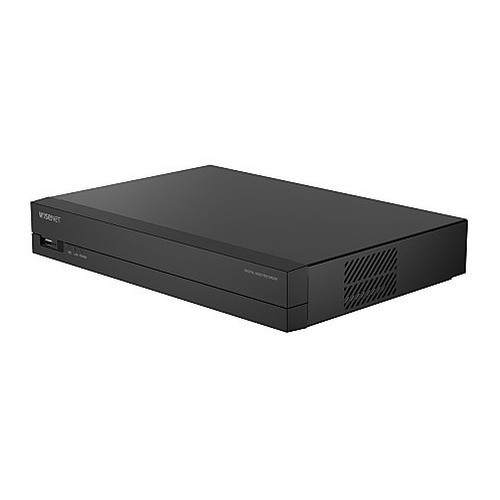

Hanwha ARD-410-2TB 4-Channel Pentabrid DVR Recorder

Hanwha ARD-410-2TB Overview

The Hanwha ARD-410-2TB is a 4-channel pentabrid digital video recorder designed for hybrid analog and IP surveillance deployments. This compact A-Series DVR accepts AHD, TVI, CVI, and CVBS analog signals up to 5MP half resolution, plus two additional network camera channels, making it ideal for integrators upgrading legacy analog systems or building mixed-technology installations. Pre-loaded with 2TB SATA storage and NDAA/FCC compliant, the ARD-410-2TB delivers reliable recording and playback for small-to-mid-scale security operations.

Hanwha ARD-410-2TB Key Features

• Pentabrid Video Input Support: Accepts AHD (5MP half, 4MP half, 1080p), HD TVI (5MP half, 4MP half, 1080p), HD CVI (5MP half, 4MP half, 1080p), and CVBS (NTSC/PAL) analog camera signals on four dedicated BNC inputs, plus two additional network camera channels for flexible hybrid deployments.
• Maximum 6-Channel Configuration: Total of 4 analog channels plus 2 network camera channels (up to 6CH), with 1 IP channel available for each unused analog input, enabling future expansion without hardware replacement.
• High-Efficiency Compression: Records in H.265, H.264, and MJPEG codecs with maximum recording bandwidth of 30Mbps, optimizing storage utilization and reducing data redundancy.
• Flexible Frame Rate Recording: Delivers 12 fps @ 5MP half resolution (NTSC/PAL), 15 fps @ 4MP half resolution (NTSC/PAL), and 15 fps @ 2MP, supporting continuous and event-triggered recording modes.
• Dual Monitor Output & Multi-Screen Layout: HDMI and VGA outputs support simultaneous live monitoring with dynamic layout and up to 6-division virtual channel view on local monitors. Web interface supports 1, 2, 3, 4, 6, 1+5, 1+7, and 9 layout configurations for remote viewing.
• 2TB Expandable Storage: Supplied with 2TB SATA HDD; supports up to 6TB single-drive expansion for extended retention periods without RAID complexity.
• Intelligent Event Management: Dual-track recording (manual and schedule modes), alarm input on 4 channels with motion detection, video loss, and tampering detection for analog inputs; network camera support for sensor, motion detection, and video analytics events.
• Coaxial Control & Alarm I/O: Integrated coaxial control protocol, 4 alarm inputs and 1 relay output for integration with access control and third-party alarm systems.
• Audio Integration: 1-channel audio input and 1-channel audio output for integrated voice or alert capability.
• NDAA and FCC compliant design, suitable for federal and critical infrastructure deployments.
• P2P QR Code Connectivity: Built-in Hanwha P2P service with QR code mobile app connection for remote monitoring without complex network configuration.

Hanwha ARD-410-2TB Integration & Compatibility

The ARD-410-2TB integrates with network cameras via SUNAPI (Wisenet) and ONVIF protocols, enabling interoperability with third-party IP camera brands. Local display outputs (HDMI and VGA) support standard video formats up to 3840×2160 resolution in single-monitor mode and 1920×1080 in dual-clone mode. Event actions include e-mail, event push notification, PTZ preset triggering, alarm relay output, buzzer alert, monitor-out display, FTP archival, SUNAPI command execution, and system shutdown triggers. Recording modes support continuous recording, schedule-based recording, event-triggered pre/post recording, and dual-track simultaneous recording for compliance or forensic review.
