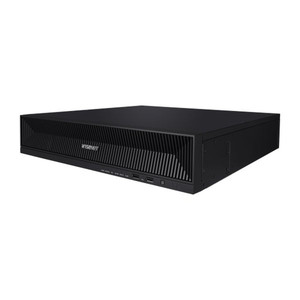

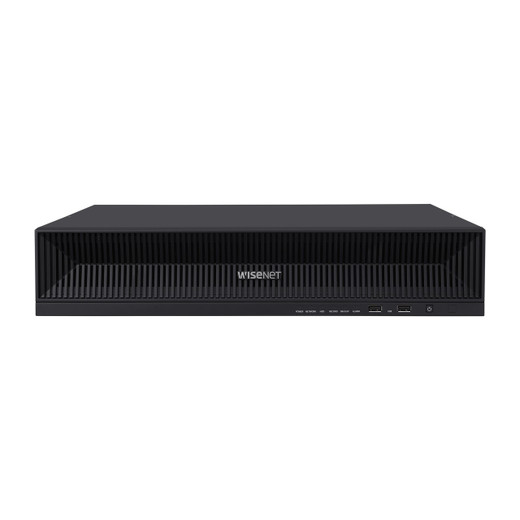

Hanwha XRN-1620B2-16TB 8K NVR (Intel based)

Hanwha XRN-1620B2-16TB Overview

The Hanwha XRN-1620B2-16TB is a 16-channel network video recorder engineered for mid-to-large surveillance deployments requiring high-resolution recording and multi-monitor output. This embedded Linux-based NVR supports up to 32-megapixel camera resolution with H.265, H.264, and MJPEG compression, delivering 140Mbps maximum recording bandwidth and up to 32Mbps playback capacity. Designed for security integrators and IT managers managing complex camera networks, the unit ships pre-configured with 16TB raw storage (8 fixed internal SATA HDDs, 10TB max per drive) and includes dual-stream recording, WiseStream bandwidth optimization, and Wisenet AI metadata search for rapid incident review.

Hanwha XRN-1620B2-16TB Performance & Recording Features

• 16-channel network camera input (SUNAPI, ONVIF protocols)
• 140Mbps maximum recording bandwidth; up to 32Mbps simultaneous playback
• 32MP resolution support with H.265 (15fps), H.264 (up to 25fps), and MJPEG compression
• Dual-stream recording with flexible scheduling (continuous, event-triggered, pre/post-event, bookmark)
• WiseStream technology for intelligent bandwidth reduction without quality loss
• Automatic Recovery Backup (ARB) and N+1 failover for business continuity
• Event triggers: alarm input, video loss, camera sensor events, motion detection, video analytics, defocus, audio triggers, dynamic events, and user-defined events
• Event actions: email notification, event push, PTZ preset control, alarm relay output, buzzer, FTP, SUNAPI commands, and system shutdown

Hanwha XRN-1620B2-16TB Display & Playback Capabilities

• Dual display: FHD (1920x1080) via HDMI and VGA simultaneous output; UHD single monitor via HDMI
• Local display layout: dynamic, virtual channel view, clone mode (up to 16 divisions), expand mode (up to 9 divisions)
• Web interface: 1, 2H, 2V, 3V, 4, 6, 8, 9 channel layouts; no plugin required
• Fisheye dewarping: available in CMS and web UI (CIF to 32MP, H.264 up to 9MP, H.265 up to 32MP)
• Multi-user playback: up to 4 simultaneous users (1 local, 3 remote); up to 64 channels (16 local, 16 per remote user)
• Playback controls: forward/backward, fast/slow mode, frame-by-frame step
• Smart search with date/time calendar, event list, text search, and AI search (Wisenet AI cameras only)

Hanwha XRN-1620B2-16TB Storage & System Specifications

• 8 fixed internal SATA HDD bays (up to 10TB per drive; 80TB maximum capacity)
• Pre-configured with 16TB raw storage
• Embedded Linux operating system
• QR code support for quick camera
