Hanwha SLA-F2480WA 5MP

Hanwha SLA-F2480WA Overview

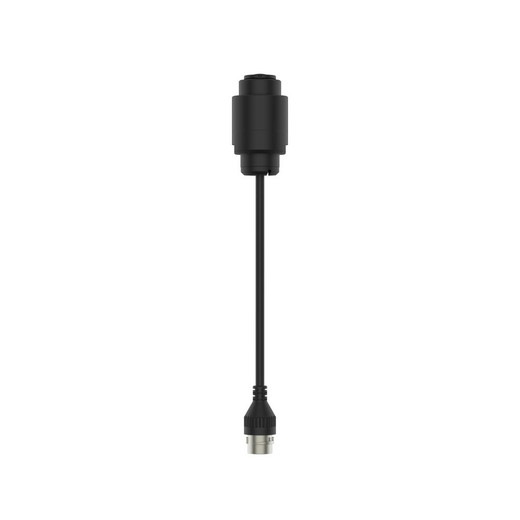

The Hanwha SLA-F2480WA is a 5MP outdoor-rated lens module designed for remote head camera systems. Built as a straight-body fixed lens unit with an integrated 8-meter cable, the SLA-F2480WA delivers wide field of view and robust environmental protection for outdoor surveillance deployments. It is compatible with the PNM-C20000QB remote camera head.

Hanwha SLA-F2480WA Optical & Environmental Performance

• 5MP resolution with 1/2.8" CMOS sensor
• 2.4mm fixed focal length; horizontal FOV 123°, vertical FOV 91°
• 0.08 lux minimum illumination (color, 1/30 sec @ 30 IRE) for low-light outdoor operation
• IP66 and NEMA 4X rated for water and dust protection in harsh outdoor environments
• IK10 impact resistance classification
• Operating temperature range -30°C to +55°C (-22°F to +131°F); storage to -50°C/+60°C
• 0–95% RH humidity tolerance

Hanwha SLA-F2480WA Physical & Connectivity

• Straight body form factor; dimensions 35mm diameter × 63.2mm length
• 8-meter (26 ft) integrated lens cable with RJ12 connector to main camera unit
• 102.3g (0.23 lb) lens weight; 350g (0.77 lb) cable weight
• Fixed focus control
• Black metal construction

Hanwha SLA-F2480WA Compliance & Standards

• FCC 47 CFR 15 Subpart B Class A; ICES-3(A)/NMB-3(A)
• CE/UKCA; EN 55032 Class A; EN 50130-4; EN 61000-3-2; EN 61000-3-3
• VCCI CISPR 32 Class A; RCA/NZS CISPR 32 Class A; KSC 9832; KSC 9835

Hanwha SLA-F2480WA Package Contents

• SLA-F2480WA outdoor lens module
• 8-meter integrated lens cable
