Hanwha SLA-F2480WDA 5MP

Hanwha SLA-F2480WDA Overview

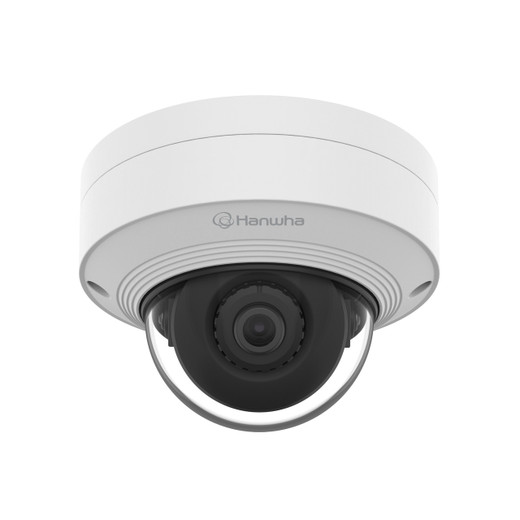

The Hanwha SLA-F2480WDA is a 5MP outdoor-rated dome lens module engineered for integration with compatible Hanwha network camera heads. This fixed 2.4mm lens module delivers wide-angle coverage with a 123° horizontal field of view, making it suitable for perimeter monitoring, entrance surveillance, and general area coverage in harsh outdoor environments.

Hanwha SLA-F2480WDA Environmental & Optical Performance

• 5 MP resolution via 1/2.8" CMOS sensor
• 2.4mm fixed lens with F2.0 maximum aperture
• Wide angular field of view: 123° (H), 91° (V), 159° (D)
• 0.08 lux minimum illumination (1/30 sec, 30 IRE) in both color and black & white
• IP66 and NEMA 4X rated for outdoor/wet environment protection
• IK10 impact resistance (vandal-resistant dome construction)
• Operating temperature range: -30°C to +55°C (-22°F to +131°F)
• Metal dome construction, 110.0mm diameter × 77.0mm height

Hanwha SLA-F2480WDA Mechanical & Connectivity

• RJ12 connector interface for integration with PNM-C20000QB remote head
• Pan/Tilt/Rotate capability: Pan 0°–350°, Tilt 0°–70°, Rotate 0°–355°
• 8m (26 ft) lens cable included
• Product weight: 455g (1.00 lb), Cable weight: 350g (0.77 lb)
• UL 62368-1 and CAN/CSA C22.2 No. 62368-1 safety certified
• EMC compliance: FCC, ICES-3, CE/UKCA, VCCI, RCA
• Environmental testing per IEC 60068 standards

Hanwha SLA-F2480WDA Package Contents

• SLA-F2480WDA Outdoor 5MP dome lens module
• 8m (26 ft) RJ12 lens cable
