Hanwha WRR-P-S204S-220TB 2U WAVE Network Video Recorder with 4

Hanwha WRR-P-S204S-220TB Overview

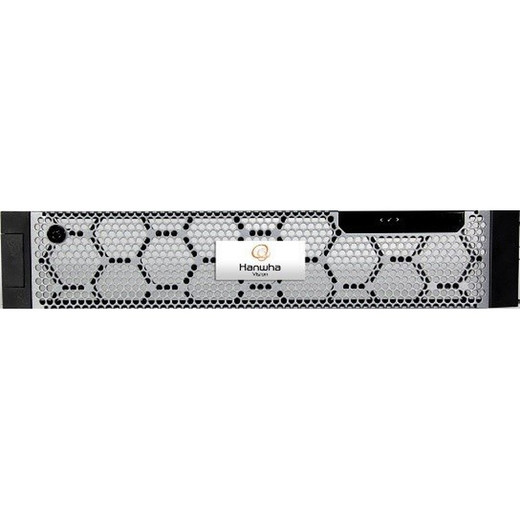

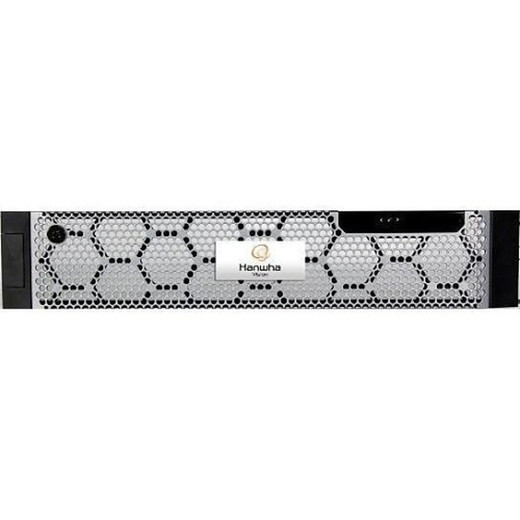

The Hanwha WRR-P-S204S-220TB is a 2U rackmount network video recorder purpose-built for enterprise surveillance deployments requiring substantial raw storage capacity and sustained recording throughput. This model ships with Wisenet WAVE video management system pre-installed and configured, 4 included Wave Professional licenses, and 220TB of raw video-optimized storage across 12 hot-swappable 3.5-inch drive bays. The WRR-P-S204S-220TB delivers 470 Mbps recording bandwidth and supports up to 256 simultaneous IP camera channels, making it suitable for large-scale multi-site and campus deployments where centralized video management and high-capacity archival are critical.

Hanwha WRR-P-S204S-220TB Key Features

• 220TB Raw Storage Capacity (182TB Usable): 12 front-mounted, hot-swappable 3.5-inch drive bays configured in RAID 5 after formatting, providing 182TB of usable capacity with fault tolerance and continuous 24/7 duty cycle support.
• 470 Mbps Recording Bandwidth: Sustained throughput rated for high-volume simultaneous multi-camera ingest, enabling real-world deployments of 100+ cameras without frame rate compromise.
• Wisenet WAVE VMS Pre-Installed: Professional video management software comes fully loaded, configured, and licensed with 4 Wave Professional licenses included, reducing deployment time and integration complexity.
• Intel Xeon 4410Y Processor with 16GB RAM: Enterprise-grade CPU and memory allocation ensure responsive performance under sustained recording loads and support for analytics-enabled workflows.
• Dual 480GB SSD OS Drives in RAID 1: Redundant system drives protect operating system integrity and enable rapid recovery in the event of drive failure.
• Windows Server 2022 Standard Operating System: Runs Wisenet WAVE on a dedicated Windows Server 2022 Standard environment, offering broad third-party software compatibility and familiar IT operations integration.
• 4 x 1GbE Network Interfaces (Standard); Optional 10GbE SFP: Standard dual gigabit Ethernet connectivity with optional upgrade to dual 1GbE + dual 10GbE SFP ports for high-bandwidth camera feeds and network isolation.
• RAID 0/1/5/6 Support with 8GB NV Cache: Flexible RAID configurations accommodate varying redundancy and performance requirements; non-volatile write cache improves I/O consistency.
• Redundant 800W 80 Plus Platinum Power Supplies: N+1 power redundancy with high-efficiency PSU design minimizes downtime risk in mission-critical installations.
• IPMI Lights-Out Management: Out-of-band management capability enables remote monitoring, restart, and troubleshooting without reliance on network video software.
• Dual Video Outputs (mDP and VGA): Local monitoring and KVM integration via miniDisplayPort and VGA connectors for on-site diagnostics and maintenance.
• 5-Year Next Business Day Hardware Warranty with Keep Your Hard Drive Protection: Extended hardware support includes replacement hard drives, minimizing unplanned downtime in archive-critical deployments.

Hanwha WRR-P-S204S-220TB Integration & Compatibility

The WRR-P-S204S-220TB supports Wisenet and ONVIF-conformant IP cameras, enabling broad camera vendor interoperability across existing and new deployments. Wisenet WAVE VMS provides native integration with Hanwha Vision's complete camera portfolio and third-party ONVIF Profile S/T-compliant cameras. The system manages up to 256 simultaneous video channels and includes 1 x USB 2.0 front port and 1 x USB 2.0 + 1 x USB 3.0 rear ports for backup, forensics, and peripheral expansion. IPMI management allows IT teams to integrate the recorder into existing out-of-band management infrastructure alongside other enterprise servers. The system is compatible with standard 19-inch rackmount infrastructure and includes sliding rail kit with cable management arm for simplified data center deployment.

Hanwha WRR-P-S204S-220TB Package Contents

• WRR-P-S204S-220TB 2U Rackmount Recording Server (chassis only, HDD bays empty)
• USB Mouse and Keyboard
• Sliding Rack Rail Kit with Cable Management Arm
