Hanwha WRR-P-S204S-160TB Overview

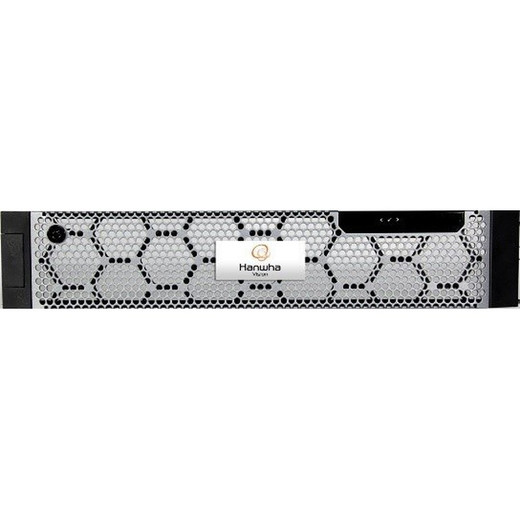

The Hanwha WRR-P-S204S-160TB is a 2U rackmount network video recording server purpose-built for enterprise-scale surveillance deployments. Pre-loaded with Wisenet WAVE video management system and Windows Server 2022 Standard, this recorder delivers 470 Mbps recording throughput across up to 256 channels, making it suitable for large multi-site integrations, critical infrastructure monitoring, and high-density camera networks requiring centralized, reliable video storage and management.
Hanwha WRR-P-S204S-160TB Key Features
- 160TB Raw Storage Capacity (131TB Usable) — Accommodates extended retention periods for large camera networks. Usable capacity reflects RAID 5 configuration with disk formatting overhead, providing redundancy and data protection for mission-critical surveillance environments.
- 470 Mbps Recording Bandwidth — Supports simultaneous ingest from high-resolution multi-megapixel cameras with minimal latency, ensuring no frame loss during peak recording periods.
- 12 Hot-Swappable 3.5-Inch HDD Bays — Front-facing drive configuration enables rapid storage expansion and drive replacement without system downtime, critical for 24/7 operations.
- Pre-Installed Wisenet WAVE Professional Licenses (4 Included) — Ships with four Wave Professional licenses for immediate deployment. WAVE VMS supports both Wisenet and ONVIF-conformant IP cameras, enabling mixed vendor integrations.
- Dual 480GB SSD OS Drives in RAID 1 — System redundancy ensures platform availability. Dedicated operating system drives separate from video storage optimize performance and reliability.
- Intel Xeon 4410Y Processor with 16GB DDR4 RAM — Enterprise-grade CPU and memory support high-throughput concurrent streaming, metadata processing, and search operations across 256 channels.
- RAID 0/1/5/6 Support with 8GB NV Cache — Flexible storage configurations accommodate various redundancy and capacity requirements. Non-volatile cache improves write performance during peak recording loads.
- Quad 1GbE Network Interfaces (4x RJ45) — Standard configuration; optional upgrade to dual 1GbE + dual 10GbE SFP for high-bandwidth applications. Supports segregated camera, management, and export networks.
- IPMI Out-of-Band Management — Remote power control, sensor monitoring, and hardware diagnostics via dedicated management interface, enabling proactive maintenance and rapid issue resolution.
- Dual 800W 80 Plus Platinum Power Supplies — Redundant power architecture with high efficiency (80%+) reduces operational costs and prevents single point of failure. 100–240V AC input supports global deployment.
- Windows Server 2022 Standard or Windows 11 IoT Enterprise LTSC 2024 Operating System — Industry-standard OS ensures broad software compatibility, security patching, and enterprise IT integration.
- Up to 256 Camera Channel Support — WAVE VMS scales to large deployments; supported by underlying hardware throughput of 1200 Mbps maximum bandwidth (470 Mbps standard configuration).
Hanwha WRR-P-S204S-160TB Integration and Compatibility
The WRR-P-S204S-160TB integrates natively with Hanwha Wisenet IP cameras and supports ONVIF-conformant cameras from third-party manufacturers, enabling flexible multi-vendor surveillance architectures. Windows Server 2022 Standard provides standard Windows Server APIs and tools for custom integrations, backup automation, and enterprise system management. IPMI support enables integration with data center management platforms and monitoring systems. The recorder ships with USB keyboard and mouse for initial configuration, and includes a sliding rack rail kit with cable management arm for seamless integration into standard 19-inch server racks.
Hanwha WRR-P-S204S-160TB Package Contents
- WRR-P-S204S-160TB 2U Rackmount Recorder (chassis, no HDDs included)
- USB Mouse
- USB Keyboard
- Sliding Rack Rail Kit with Cable Management Arm
- 4x Wave Professional Licenses (pre-installed)
