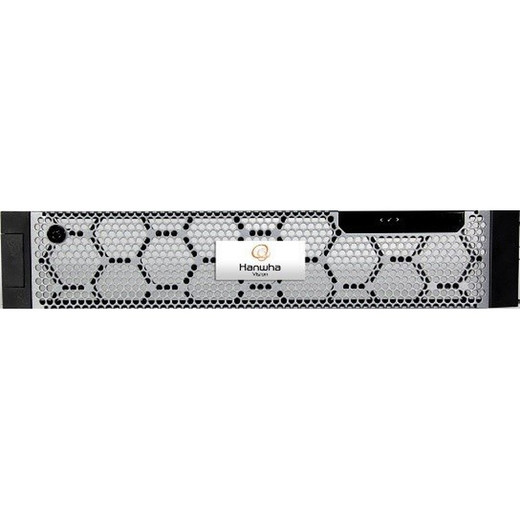

Hanwha WRR-P-S204L-160TB 2U WAVE Network Video Recorder with 4

Hanwha WRR-P-S204L-160TB Overview

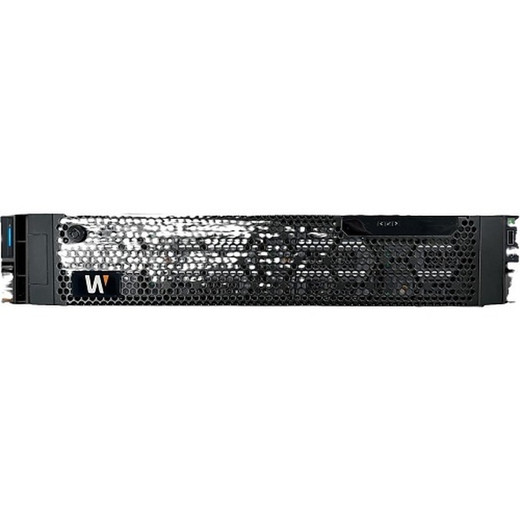

The Hanwha WRR-P-S204L-160TB is a 2U rackmount Wisenet WAVE Network Video Recorder (NVR) engineered for enterprise surveillance deployments requiring high-capacity, high-throughput video management. This model combines Hanwha's Wisenet WAVE video management system pre-installed and configured with robust hardware infrastructure, delivering 160TB raw storage capacity (131TB usable after RAID 5 formatting) and sustained 1200 Mbps recording bandwidth. Built on Ubuntu 22.04 LTS, the WRR-P-S204L-160TB serves as a turnkey solution for integrators and large-scale IP camera infrastructure deployments across enterprise, government, and critical infrastructure environments.

Hanwha WRR-P-S204L-160TB Key Features

• High-Capacity Raw Storage: Up to 160TB raw storage delivered across 12 front hot-swappable 3.5" HDD bays, yielding 131TB usable capacity after RAID 5 configuration and disk formatting. Storage is optimized for 24/7 video duty-cycle drives, ensuring sustained performance under continuous recording loads.
• 1200 Mbps Recording Throughput: Supports simultaneous multi-stream ingest at 1200 Mbps sustained bandwidth, enabling concurrent recording from multiple high-resolution camera feeds without bottlenecking.
• Pre-Installed Wisenet WAVE VMS: Ships with Wisenet WAVE video management software pre-loaded and configured, coupled with 4 Professional licenses included, eliminating VMS licensing delays and enabling immediate deployment upon power-on and network integration.
• Server-Grade Processor and Memory: Features Intel Xeon 4410Y processor paired with 16GB DDR4 RAM, providing the computational headroom for real-time video processing, metadata extraction, and multi-user concurrent access across enterprise deployments.
• Redundant Power and RAID Flexibility: Dual 800W 80 Plus Platinum power supplies deliver N+1 redundancy and high efficiency for continuous operation. Supports RAID 0/1/5/6 configurations with 8GB NV cache, allowing administrators to balance performance, availability, and capacity per deployment requirements.
• Persistent OS Infrastructure: Dual 480GB SSD OS drives in RAID 1 (internally mounted) ensure boot integrity and operating system resilience, protecting against single-drive OS failure.
• Quad-Gigabit Network Connectivity: Standard configuration includes 4 x 1GbE RJ45 NICs; optional upgrade to 2 x 1GbE + 2 x 10GbE SFP ports available for high-bandwidth camera aggregation in large-scale deployments.
• Multi-Platform Operating System Support: Ships configured on Ubuntu 22.04 LTS; also supports Windows 11 IoT Enterprise LTSC 2024 and Windows Server 2022 Standard, offering flexibility to match existing enterprise OS standardization and management frameworks.
• Video Output and Local Management: Equipped with both mDP and VGA video outputs for direct monitoring and troubleshooting. Includes IPMI (Intelligent Platform Management Interface) for out-of-band hardware management, remote power cycling, and system diagnostics without OS dependency.
• Enterprise Camera Compatibility: Supports Wisenet IP cameras as well as ONVIF-conformant cameras from third-party manufacturers, with capacity for up to 256 channels, supporting mixed-vendor surveillance ecosystems.
• Complete Deployment Package: Includes USB keyboard and mouse for initial configuration, sliding rack rail kit with cable management arm for secure 19" rack installation, and dual serial ports for legacy device integration or OOB management access.

Hanwha WRR-P-S204L-160TB Integration and Compatibility

The WRR-P-S204L-160TB runs Wisenet WAVE VMS natively and supports ONVIF-conformant IP cameras, enabling integration across heterogeneous camera vendor ecosystems. With 4 x 1GbE NICs standard and optional 10GbE SFP uplinks, the recorder connects to enterprise network infrastructure at scale. IPMI management provides remote hardware access independent of the operating system or VMS, critical for NOC management and disaster recovery workflows. The system supports up to 256 camera channels, accommodating large multi-site deployments or single-site high-density surveillance architectures. Operating system options (Ubuntu, Windows Server, Windows IoT) align with existing IT security policies and patch management cadences.

Hanwha WRR-P-S204L-160TB Package Contents

• WRR-P-S204L-160TB 2U Rackmount Recorder (chassis, pre-populated with Wisenet WAVE and 4 Professional licenses)
• USB Keyboard and Mouse
• Sliding Rack Rail Kit with Cable Management Arm
• Power Cords (2 x AC)
• Documentation and Quick Start Guide
