Hanwha WRN-1632S-8TB 2U WAVE PoE NVR (Intel based) with 4

Hanwha WRN-1632S-8TB Overview

The Hanwha WRN-1632S-8TB is a 2U rack-mount edge-based network video recorder engineered for mid-to-large deployments requiring embedded PoE power distribution and high-throughput recording. This Intel-based platform delivers 250 Mbps maximum recording bandwidth across 32 channels, with integrated Wisenet WAVE software pre-installed and AI metadata support for intelligent video management. The WRN-1632S-8TB is ideal for integrators deploying IP surveillance infrastructure where consolidated recording, native PoE delivery, and cloud-capable client support are critical operational requirements.

Hanwha WRN-1632S-8TB Key Features

• 32-Channel Capacity with Integrated PoE Power Distribution: Supports up to 32 IP camera channels with 16 integrated PoE/PoE+ ports and 200W total PoE power budget, eliminating the need for external PoE injectors or separate power distribution infrastructure in medium-scale deployments.
• High-Throughput Recording Architecture: 250 Mbps maximum recording bandwidth supports simultaneous multi-stream capture from diverse camera types without bottlenecking, essential for mixed-resolution and mixed-compression deployments.
• Multi-Codec Support with Efficient Compression: Native H.265, H.264, and MJPEG codec support enables compatibility with legacy and modern camera portfolios; Wisenet Stream (Wisestream) technology optimizes bandwidth utilization across variable bitrate streams.
• Scalable Internal Storage with Hot-Swap Design: Four SATA drive bays support up to 10TB per drive slot (maximum 40TB total storage), with this SKU configured at 8TB. SATA architecture enables field-replaceable hard drive upgrades without system downtime.
• Dual Display Outputs for Configuration and Local Monitoring: HDMI and DisplayPort outputs provide independent display control for both system configuration and real-time video review, reducing dependency on networked client access during setup phases.
• Dual Gigabit Network Interfaces with Segregated WAN/LAN: Two dedicated 1 Gbps Ethernet ports allow separation of LAN recording traffic from WAN cloud synchronization or remote access, improving network reliability and security posture.
• Embedded Ubuntu 22.04 LTS Operating System: Linux-based OS with long-term support guarantees patching continuity and reduces licensing complexity compared to Windows-based recorders.
• AI Metadata Extraction: Built-in support for AI metadata enables intelligent search, automated alerting, and forensic video analysis workflows without external analytics appliances.
• Wisenet WAVE Client Ecosystem: Pre-installed WAVE platform supports Wave desktop client, mobile applications, and cloud synchronization, providing multi-device remote access and redundancy options.
• 4 Professional WAVE Licenses Included: Package includes four simultaneous user licenses for professional-grade client access, eliminating per-user licensing friction for initial deployment.
• Rack-Mount Form Factor with Thermal Management: Compact 2U form factor (440 x 89.8 x 428.4 mm) integrates into standard 19-inch server racks; 340W rated power consumption and 0–40°C operating temperature range support indoor data center and secure facility deployment.

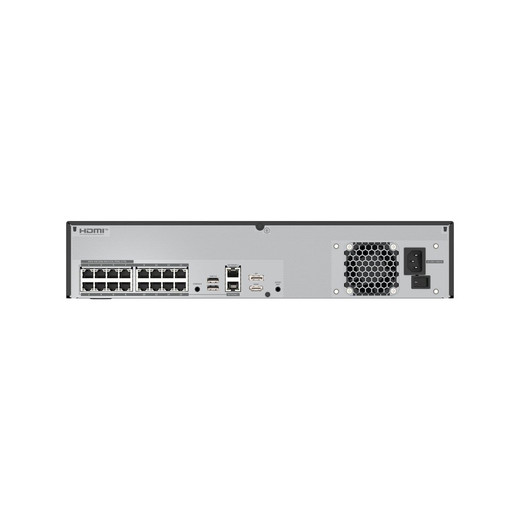

• Comprehensive I/O Connectivity: Two USB 2.0 front ports and two USB 3.0 rear ports enable rapid evidence export, backup operations, and accessory integration; included USB mouse simplifies navigation during on-site configuration.

Hanwha WRN-1632S-8TB Integration & Compatibility

The WRN-1632S-8TB operates as an ONVIF-compatible IP video recorder, supporting standard network camera interfaces for vendor-neutral camera integration. Wisenet WAVE provides native integration with Hanwha IP camera lines while maintaining compatibility with third-party ONVIF Profile S/T-compliant cameras. Cloud Sync functionality enables asynchronous backup and redundancy workflows without dedicated WAN infrastructure. The embedded PoE power delivery simplifies cabling in single-rack deployments; dual GbE NICs support network segmentation for security-conscious environments. This recorder is designed for indoor deployment in climate-controlled facilities such as corporate security operations centers, retail headquarters, transportation hubs, and enterprise data centers where rack density and consolidated storage are valued.

Hanwha WRN-1632S-8TB Package Contents

• WRN-1632S-8TB Network Video Recorder (2U, pre-installed with Wisenet WAVE software)
• USB Mouse
• Rack Mount Brackets
