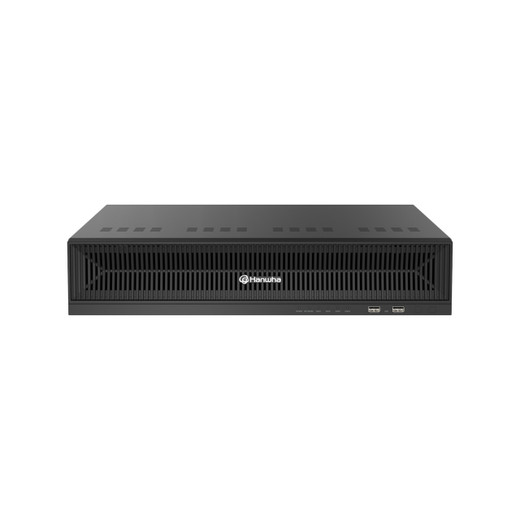

Hanwha WRN-1632S-40TB 2U PoE NVR with 40TB Storage

Hanwha WRN-1632S-40TB Overview

The WRN-1632S-40TB is an Intel-based 2U edge NVR designed for mid-to-large scale surveillance deployments requiring integrated PoE power delivery and substantial local storage. This system combines Hanwha's Wisenet WAVE software platform with professional-grade hardware to deliver 250 Mbps recording throughput across up to 32 channels, making it ideal for security integrators deploying enterprise video surveillance in indoor facility environments.

Hanwha WRN-1632S-40TB Key Features

• 32-Channel Network Support with Integrated PoE: Supports up to 32 camera channels with 16 dedicated PoE/PoE+ ports delivering 200W total PoE budget, eliminating separate midspan injectors for mid-sized deployments.
• 40TB Raw Storage Capacity: Four internal SATA HDD slots, each supporting up to 10TB drives, provide up to 40TB total raw storage for extended retention periods and high-throughput recording scenarios.
• 250 Mbps Recording Throughput: Handles demanding bandwidth requirements across multiple concurrent streams without bottlenecking, supporting continuous recording at full resolution across all channels.
• Flexible Video Compression: Hardware-accelerated support for H.265, H.264, and MJPEG codecs allows bandwidth optimization and compatibility with legacy and modern camera ecosystems.
• Wisestream Technology: Integrated intelligent bitrate management reduces storage footprint and bandwidth consumption while maintaining video quality during critical events.
• Wisenet WAVE Platform Pre-Installed: Comes with Wisenet WAVE software and 4 Professional licenses, enabling immediate cloud sync, mobile client access, and AI metadata support without additional software licensing.
• AI Metadata Support: Processes AI metadata for object analytics and advanced search capabilities, enhancing investigative workflows and post-event analysis.
• Dual GbE NIC Architecture: Two 1 Gbps RJ-45 WAN ports plus 16 PoE/PoE+ LAN ports provide flexible network topology configuration for redundancy or segmented traffic management.
• Dual Video Output: HDMI and DisplayPort outputs enable simultaneous local monitoring and configuration without dedicated external adapters.
• Intel Quad-Core CPU with 8GB DDR4 RAM: Ensures responsive system performance for simultaneous recording, playback, and client connections under sustained load.
• Embedded Ubuntu 22.04 LTS Operating System: Provides long-term stability, security patching, and proven reliability in production surveillance environments.

Hanwha WRN-1632S-40TB Integration & Compatibility

The WRN-1632S-40TB is supported by Wisenet WAVE client software, mobile applications, and Cloud Sync services. The system supports standard IP camera connectivity and integrates with Hanwha Vision camera ecosystems. Four Professional licenses are included, licensing concurrent users for Wave client and remote access. Dual RJ-45 WAN ports support network segmentation and provide connection flexibility for integration with enterprise IT infrastructure. The system includes USB mouse and rack mount brackets for immediate 2U rackmount deployment in standard IT enclosures.

Hanwha WRN-1632S-40TB Package Contents

• WRN-1632S-40TB NVR unit
• USB mouse
• Rack mount brackets
