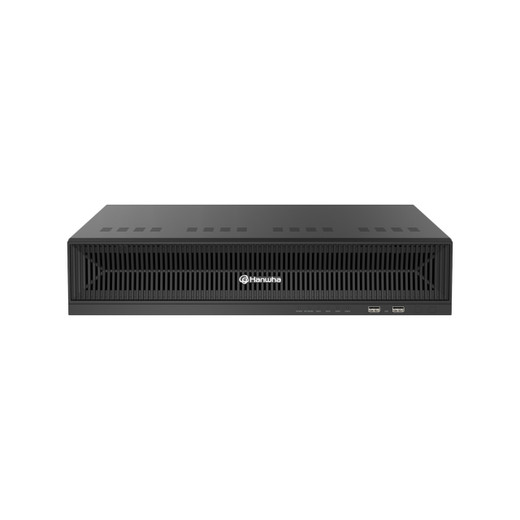

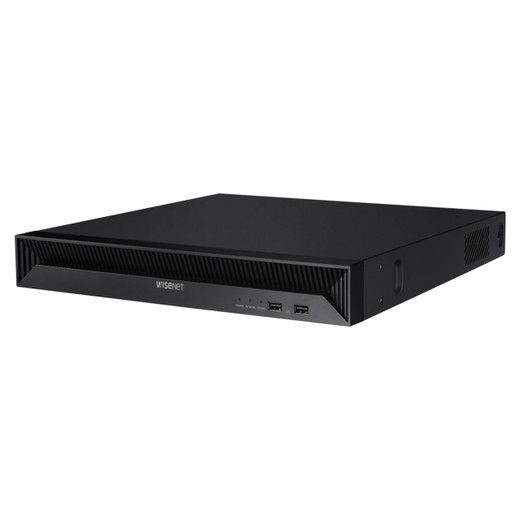

Hanwha WRN-1632S-30TB Overview
The Hanwha WRN-1632S-30TB is a 2U form factor PoE+ network video recorder designed for mid-to-large enterprise surveillance deployments. Built on Intel-based architecture with embedded Ubuntu 22.04 LTS, this platform delivers 250 Mbps recording throughput and integrates Wisenet WAVE software pre-installed. The WRN-1632S-30TB supports up to 32 channels with comprehensive video codec support including H.265, H.264, and MJPEG compression, making it suitable for integration with existing IP camera infrastructures and cloud-enabled monitoring workflows.
Hanwha WRN-1632S-30TB Key Features
- 32-Channel Network Video Support: Supports up to 32 IP camera channels with scalable deployment flexibility across mid-to-large installations.
- Integrated PoE+ Power Delivery: 16 dedicated PoE/PoE+ ports with 200W total power budget eliminate the need for external power injectors on compatible camera models, simplifying network cabling and reducing infrastructure complexity.
- High-Capacity Internal Storage: Four SATA HDD slots supporting up to 10TB per drive (maximum 40TB raw internal storage) with pre-configured 30TB baseline capacity for extended retention periods.
- Professional-Grade Recording Performance: 250 Mbps maximum recording bandwidth with support for H.265, H.264, and MJPEG compression codecs enables efficient bandwidth utilization and storage optimization across variable camera bitrates.
- Wisenet WAVE Platform Pre-Installed: Embedded Wisenet WAVE client software with AI metadata support, mobile client, and Cloud Sync integration provides browser-based configuration and remote monitoring without additional licensing overhead.
- Dual Gigabit Ethernet NICs: Two dedicated 1 Gbps LAN ports plus 16 PoE RJ-45 ports provide network redundancy and segmentation options for enterprise deployments requiring separation of management and video traffic.
- Dual Monitor Output: HDMI and DisplayPort outputs support simultaneous configuration and basic local monitoring on independent displays without dedicated graphics hardware.
- Quad-Core Processing: Intel-based quad-core processor with 8GB DDR4 RAM and 32GB eMMC storage delivers responsive configuration interface and consistent real-time recording under peak load conditions.
- Four Professional Licenses Included: Pre-loaded with four Wisenet WAVE professional licenses to enable advanced analytics and metadata handling on supported camera models.
- Enterprise-Class Thermal Design: 340W maximum power consumption with fanless or low-noise cooling design rated for continuous operation in 0°C to 40°C environments with 20–85% relative humidity tolerance, suitable for climate-controlled server rooms and field installations.
- Rack-Mount Ready: 2U metal chassis (440 x 89.8 x 428.4 mm; 5.56 kg) with included rack mount brackets for vertical installation in standard 19-inch server racks, reducing floor space in NOCs and security operations centers.
- USB Connectivity: Two USB 2.0 ports (front) and two USB 3.0 ports (rear) for mouse input, backup media, and external storage expansion without additional adapter hardware.
Hanwha WRN-1632S-30TB Integration & Compatibility
The WRN-1632S-30TB operates on embedded Ubuntu 22.04 LTS, ensuring compatibility with standard IP surveillance infrastructure. Wisenet WAVE software supports Wave client, mobile, and Cloud Sync platforms, enabling remote access and multi-site management. The recorder is compatible with Hanwha Wisenet IP cameras and third-party ONVIF-compliant devices. Dual GbE NICs support network redundancy and segmentation for enterprise security architectures. HDMI and DisplayPort outputs facilitate integration with existing control room monitoring setups. The PoE+ ports accommodate a wide range of 802.3at compliant IP cameras, simplifying mixed-camera deployments without external power infrastructure.
Hanwha WRN-1632S-30TB Package Contents
- WRN-1632S-30TB 2U PoE NVR unit (pre-loaded with Wisenet WAVE and 4 professional licenses)
- USB mouse
- Rack mount brackets (19-inch standard)
