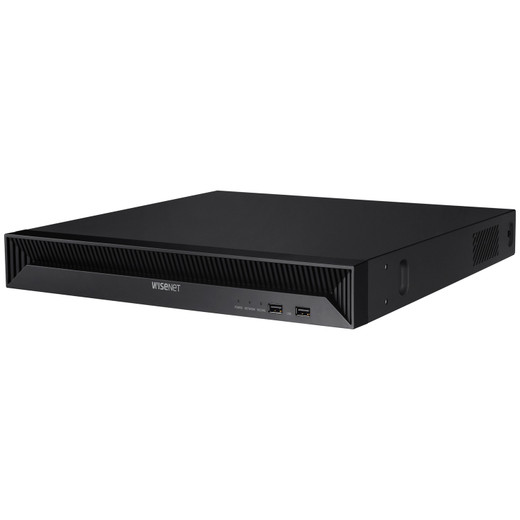

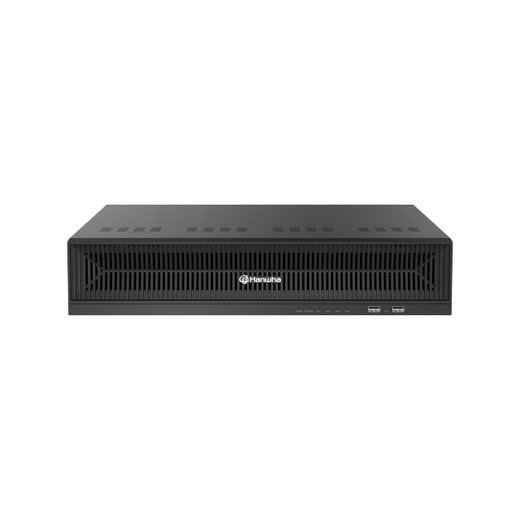

Hanwha WRN-1632S-24TB 2U PoE NVR

Hanwha WRN-1632S-24TB Overview

The Hanwha WRN-1632S-24TB is a 2U rackmount edge network video recorder designed for medium-to-large enterprise IP surveillance deployments. Pre-installed with Wisenet WAVE software, this Intel-based NVR supports up to 32 channels of simultaneous video recording with integrated PoE power delivery, eliminating the need for separate PoE injectors in many installations. The WRN-1632S-24TB delivers 250 Mbps of recording throughput and supports up to 40TB of internal HDD capacity, making it suitable for retention-heavy surveillance environments.

Hanwha WRN-1632S-24TB Key Features

• 32-Channel IP Camera Support with independent stream management and local H.264, H.265, and MJPEG decompression for multi-channel live view and playback.
• Integrated PoE Power Delivery: 16 RJ-45 PoE/PoE+ ports with 200W total power budget, supporting up to 95.3W per port for power-hungry cameras and edge devices without additional infrastructure.
• 24TB Usable Storage (Pre-Configured) with support for up to 40TB total capacity via four internal SATA HDD slots, each rated for up to 10TB drives, providing flexible retention periods for high-throughput deployments.
• 250 Mbps Recording Throughput enables simultaneous capture from 32 channels without bottlenecking, critical for multi-sensor or high-resolution mixed-codec environments.
• Wisenet WAVE Software Pre-Installed with AI metadata support, Wave client, mobile app, and Cloud Sync capabilities for distributed monitoring and cloud-integrated workflows.
• Multi-Codec Compression Engine supports H.265, H.264, and MJPEG encoding, allowing you to optimize bitrate per camera type and network condition while reducing storage footprint via Wisestream adaptive bitrate technology.
• Dual GbE Network Interfaces: Two 1 Gbps RJ-45 WAN ports for redundancy and load balancing, separate from the 16 PoE LAN ports, enabling isolated management networks and failover configurations.
• Dual Video Output with HDMI and DisplayPort for local configuration, live monitoring, and playback without requiring a separate KVM or external display adapter.
• Compact 2U Form Factor (440 × 89.8 × 428.4 mm) fits standard 19-inch server racks, occupying minimal rack space while delivering high channel density and storage capacity.
• Embedded Ubuntu 22.04 LTS Operating System with 8GB DDR4 RAM and 32GB eMMC storage for OS and temporary buffers, ensuring stability and long-term vendor support.
• Low Power Consumption at 340W typical operation makes the WRN-1632S-24TB suitable for facilities with power constraints or remote/unattended installations.
• Professional Licensing Included: Supplied with 4 professional licenses for Wisenet WAVE, enabling advanced features and multi-user access out of the box.

Hanwha WRN-1632S-24TB Integration & Compatibility

The WRN-1632S-24TB supports Wisenet WAVE ecosystem integration including Wave client software, mobile applications, and Cloud Sync for hybrid on-premises and cloud-connected surveillance. AI metadata support enables integration with third-party analytics platforms and rule-based event triggering. Dual GbE WAN ports support isolated network segmentation for secure management traffic. Four USB ports (two front USB 2.0 and two rear USB 3.0) provide device connectivity for external storage, keyboards, and peripherals. HDMI and DisplayPort outputs enable direct integration with monitoring stations and display systems without additional interface cards.

Hanwha WRN-1632S-24TB Package Contents

• Hanwha WRN-1632S-24TB 2U PoE NVR unit
• USB mouse
• Rack mount brackets
