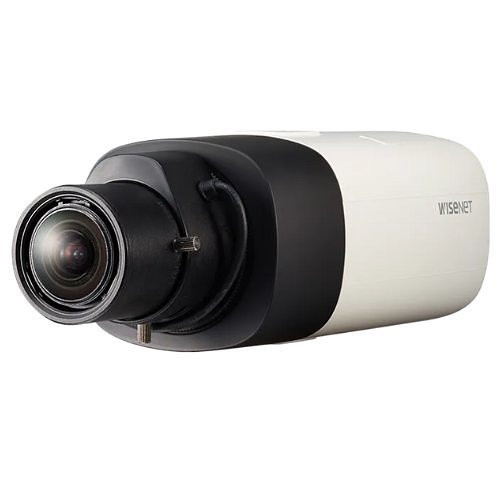

Hanwha XNB-6000 2MP Fixed Box Camera

Hanwha XNB-6000 Overview

The Hanwha XNB-6000 is a 2MP fixed box network camera designed for professional surveillance installations requiring compact form factor, efficient compression, and advanced on-board analytics. This fixed-frame camera integrates edge storage and motion intelligence in a space-constrained housing, making it suitable for indoor deployments where discrete mounting and local recording redundancy are priorities.

Hanwha XNB-6000 Key Features

• 2MP resolution at up to 60 fps — delivers smooth motion capture at all resolutions using H.265 or H.264 codec, reducing bandwidth and storage requirements without sacrificing frame rate
• Extreme low-light performance — 0.01 lux in color mode at F1.2 and 0.001 lux in black and white, enabling reliable imaging in dimly lit environments with optional IR enhancement
• WDR (Wide Dynamic Range) up to 150dB — simultaneously captures detail in high-contrast scenes with simultaneous bright and dark areas, critical for mixed-lighting environments
• Day & Night with IR and ICR — integrates infrared cut filter removal for automatic transition between color and monochrome modes based on ambient light levels
• Dual microSD/SDHC/SDxC card slots with 512GB maximum capacity — enables local edge recording independent of network connectivity, supporting resilient surveillance architectures
• Advanced motion and behavioral analytics — built-in loitering detection, directional detection, digital autotracking with gyro sensor, fog detection, sound classification, and tampering alerts for proactive monitoring
• H.265 compression with WiseStream II support — intelligent video compression reduces stored and transmitted bandwidth while maintaining forensic clarity
• Hallway view mode — optimizes framing for corridor and narrow-space deployments with corrected aspect ratio
• IP-based access control and secure communication — HTTPS, WSS (WebSocket Secure), and SRTP protocols with encrypted credentials and device certificate authentication via Hanwha Vision Root CA
• PoE flexibility — operates on PoE (IEEE 802.3af Class 3) at 7.5W maximum, or alternative 12VDC (6.5W) and 24VAC (9W) power inputs for installation flexibility
• Compact aluminum housing — 73.1mm width × 66.6mm height × 147.8mm depth with ivory or black color options, weighing 420g for discrete mounting
• 1GB RAM and 256MB Flash — supports efficient codec processing and local intelligence without requiring external compute resources

Hanwha XNB-6000 Operating Environment & Resilience

Operates reliably in indoor environments within -10°C to +55°C (-14°F to +131°F) temperature range and 0–90% relative humidity (non-condensing). Storage conditions support -50°C to +60°C (-58°F to +140°F) temperature range. Access/System/Event Log management provides audit trails for compliance and forensic investigation. Device certificate-based authentication and encrypted credential storage meet enterprise security standards for IP surveillance infrastructure.

Hanwha XNB-6000 Integration & Compatibility

Compatible with Hanwha network video recorders including SHB-4200H, SHB-4200, SHB-4301HP, STB-4150V, and SHB-4300H1. Supports standard network camera integration protocols and edge storage configurations for distributed surveillance deployments where centralized NVR recording may be limited or backup recording is required.
