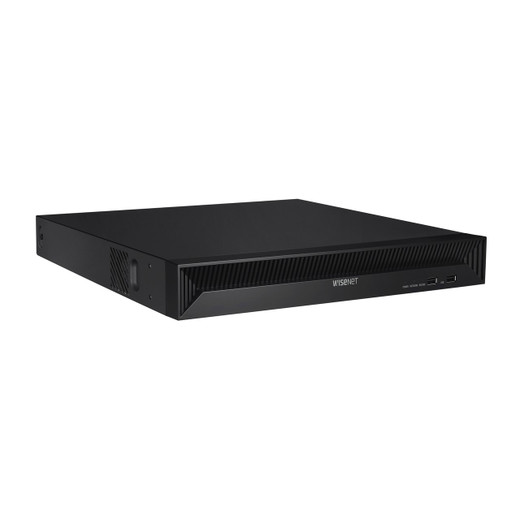

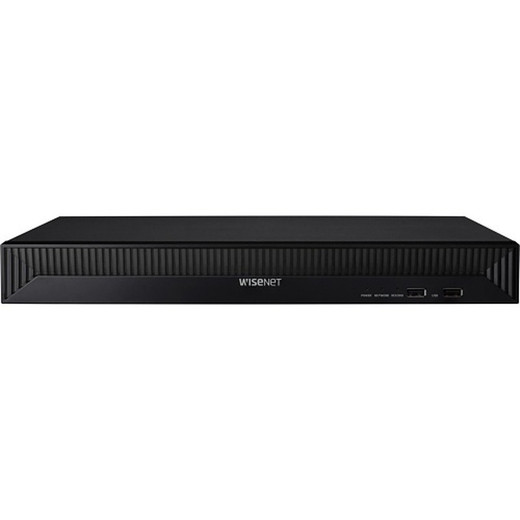

Hanwha QRN-1630S-16TB 16-Channel PoE NVR

Hanwha QRN-1630S-16TB Overview

The Hanwha QRN-1630S-16TB is a 16-channel PoE Network Video Recorder designed for medium-scale IP surveillance deployments. This model delivers integrated PoE power delivery with up to 16 cameras, supports 8 megapixel resolution recording, and includes 16TB of internal storage via two fixed SATA drives. It is purpose-built for integrators and IT managers seeking plug-and-play deployment without external PoE infrastructure, combined with enterprise-grade recording and playback capabilities.

Hanwha QRN-1630S-16TB Key Features

• 16-Channel PoE Power Delivery — Integrated 16 PoE ports (802.3af) with 130W total PoE budget enable true plug-and-play camera deployment without separate PoE injectors or switches, reducing installation complexity and cost.
• 8MP Resolution Support — Captures and records up to 8 megapixel video from connected network cameras, supporting CIF through 8MP resolution on a per-channel basis.
• Multiple Codec Support — Records simultaneously in H.265, H.264, and MJPEG formats, allowing flexible bitrate optimization and legacy camera compatibility.
• 128 Mbps Network Recording Bandwidth — Handles high-throughput recording across all 16 channels without bottlenecking, ensuring continuous multi-stream capture at line rate.
• Dual-Stream Recording Mode — Enables simultaneous primary and secondary stream recording, supporting remote viewing at reduced bitrate while maintaining local archive quality.
• 16TB Internal Storage — Two fixed 10TB SATA HDDs (max 20TB total capacity) provide extended retention periods; supports up to 10TB per drive per manufacturer specification.
• Dual 4K HDMI Display Outputs — HDMI1 outputs 4K resolution (3840×2160 at 30Hz) for primary monitoring; HDMI2 outputs 1080p (1920×1080 at 60Hz) for secondary display, with support for dynamic layout and up to 16-way split view on HDMI2.
• Local Decoding Performance — Supports live playback of 8MP at 60fps, 1080p at 240fps, and 720p at 480fps on local monitors, enabling high-speed forensic review and evidence search.
• Automatic Recovery Backup (ARB) — Edge recording retrieval feature automatically recovers video from connected cameras when network connectivity is restored, preventing data loss during network interruptions.
• Alarm Integration — Four alarm inputs and two alarm outputs plus RCA audio output enable integration with external sensors, sirens, and audio systems for event-driven responses.
• Mobile Access and P2P Connectivity — QR code-based P2P connection support with native Wisenet Mobile App (iOS and Android) and free Wisenet Viewer software for remote access without complex network configuration.
• Event Trigger and Recording Modes — Supports continuous, scheduled, pre/post-event, and event-driven recording with triggers from alarm inputs, video loss detection, camera sensor events, motion detection, video analytics, defocus detection, and audio events.

Hanwha QRN-1630S-16TB Integration and Compatibility

The QRN-1630S-16TB is fully compliant with ONVIF standards (SUNAPI and ONVIF protocols supported), enabling integration with third-party IP cameras and compatible Video Management Systems. Supports up to four simultaneous local users and three remote users for multi-operator monitoring. Web-based access enables playback layouts in 1, 2H, 2V, 3V, 4, 6, 8, and 9-way configurations. Maximum simultaneous playback capacity reaches 40 channels (16 local, 8 per remote user). The embedded Linux operating system provides a stable, isolated platform for surveillance operation.

Hanwha QRN-1630S-16TB Compliance and Security

This model carries NDAA and FCC compliance certifications, meeting U.S. federal procurement and electromagnetic compatibility standards. NDAA compliance qualifies this unit for government and defense contractor deployments where supply-chain verification is mandatory.
