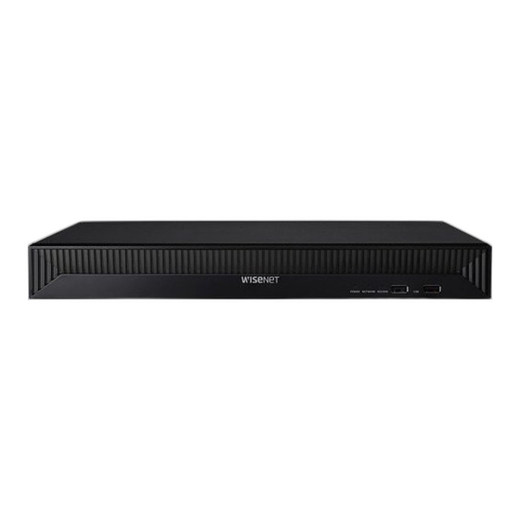

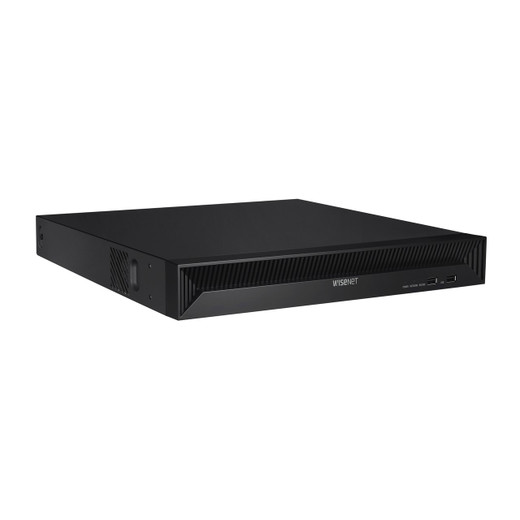

Hanwha QRN-1630S-12TB Overview
The Hanwha QRN-1630S-12TB is a 16-channel PoE network video recorder designed for mid-to-large scale IP surveillance deployments. This NVR combines integrated PoE power delivery, native 8MP recording support, and dual storage drives into a single rack-mount appliance, eliminating the need for external PoE switches and simplifying network camera integration. It is ideal for security integrators and IT managers deploying Hanwha Wisenet cameras or ONVIF-compatible third-party devices in corporate, retail, education, and municipal environments.
Hanwha QRN-1630S-12TB Key Features
- 16-Channel PoE Input with 130W Budget: Built-in 16 PoE ports (802.3af) deliver up to 130W total PoE power, eliminating separate PoE switch requirements for small-to-medium camera deployments and reducing infrastructure complexity.
- 8MP Native Recording Support: Supports up to 8MP resolution cameras across all 16 channels with H.265, H.264, and MJPEG codec options, future-proofing deployments for higher-resolution sensors while maintaining backward compatibility.
- 128 Mbps Network Recording Bandwidth: Maximum throughput of 128 Mbps enables simultaneous recording from all 16 channels at full resolution without bandwidth bottlenecks.
- Dual HDMI 4K Local Display: HDMI1 outputs 4K resolution (3840×2160 @ 30Hz) and HDMI2 outputs 1080p (1920×1080 @ 60Hz), allowing independent monitoring at two different resolutions and refresh rates for enhanced operator visibility.
- Dual Stream Recording Option: Supports simultaneous recording of primary and secondary streams from each camera, enabling flexible storage optimization and playback quality selection without additional storage overhead.
- 12TB Total Storage with Two 10TB SATA Drives: Two internal 3.5-inch SATA HDD slots accommodate up to 10TB per drive (20TB maximum), providing substantial retention capacity with support for up to 240 fps playback at 1080p resolution.
- Automatic Recovery Backup (ARB) Feature: Integrated edge recording retrieval automatically recovers footage from camera edge storage if NVR connection is lost, ensuring no critical video data is abandoned during network interruptions.
- Event-Driven Recording with Multiple Triggers: Configurable recording modes—Normal, Dual Stream, Continuous Schedule, and Event-based (with pre/post event capture)—support alarm input, video loss detection, camera motion detection, and sensor triggers for efficient storage utilization.
- P2P QR Code Connection and Wisenet Mobile Access: Simplified setup via QR code pairing and direct integration with Wisenet Mobile App (iOS and Android) and free Wisenet Viewer software eliminate complex networking configuration for remote access and multi-site management.
- Four Alarm Inputs and Two Alarm Outputs: Integrated I/O connectors support external alarm devices, door sensors, and relay outputs, enabling integration with access control and intrusion systems.
- NDAA and FCC Compliance: Meets U.S. federal procurement requirements and regulatory standards, qualifying for government and enterprise contracts with restricted supply-chain mandates.
Hanwha QRN-1630S-12TB Integration & Compatibility
The QRN-1630S-12TB supports SUNAPI and ONVIF protocols, enabling integration with third-party IP cameras and compatible VMS platforms. Embedded Linux operating system provides stability and reduced maintenance overhead. Multiple user accounts allow up to 4 simultaneous local or remote users, with maximum 40-channel simultaneous playback (16 local channels and up to 8 channels per remote user). Dynamic layout and clone-mode display on HDMI1 and up to 16-division screen layout on HDMI2 provide flexible monitoring configurations. Maximum 32 Mbps playback bandwidth supports smooth remote access without excessive network utilization. Fisheye dewarping mode is supported for compatible panoramic cameras. File backup in BU, EXE, AVI, and JPG formats via GUI and network options simplifies evidence export and archival workflows.
