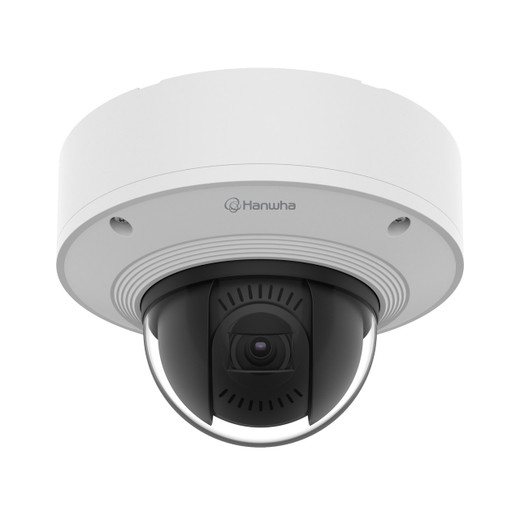

Hanwha XNV-6081Z/KAN Overview
The Hanwha XNV-6081Z/KAN is a 2MP outdoor vandal-resistant dome camera engineered for demanding surveillance environments requiring weather protection and impact durability. Built on the Wisenet X series Plus platform powered by Wisenet 5 technology, this camera delivers Full HD (1080p) at 60 fps with motorized vari-focal zoom and advanced video analytics. Ideal for integrators deploying systems in high-vandalism zones, harsh climates, and perimeter security applications where both environmental and mechanical robustness are critical.
Hanwha XNV-6081Z/KAN Key Features
- 2MP Full HD resolution at 60 fps — Captures 1080p video at high frame rates for motion-heavy environments and smooth playback without dropped frames.
- Motorized vari-focal 4.3x zoom lens (2.8–12mm) — Field of view ranges from 119.5° (wide) to 27.9° (telephoto), enabling scene composition flexibility without camera repositioning.
- Pan/Tilt/Roll/Zoom (PTRZ) capability — Electronic pan, tilt, and roll combined with motorized zoom provide adaptive framing for dynamic scenes.
- 150dB WDR (Wide Dynamic Range) — Extreme WDR performance handles simultaneous bright sunlit and shadowed regions, critical for outdoor entry/exit monitoring and backlit scenarios.
- Triple codec support with WiseStream II compression — H.265, H.264, and MJPEG encoding with WiseStream II adaptive bitrate technology minimizes bandwidth and storage while maintaining image quality, reducing infrastructure costs.
- True Day/Night with advanced low-light processing — Automatic mechanical IR cut filter switching and defog detection maintain image clarity across 24/7 lighting conditions and adverse weather.
- Advanced video analytics and business intelligence — Sound classification, shock detection, hallway view mode, and HLC (High Light Compensation) provide actionable insights beyond traditional motion detection.
- IP67/IP66 weatherproofing with IK10+ vandal rating — Sealed against dust and water ingress; impact-resistant construction withstands mechanical abuse. NEMA 4X compliance confirms corrosion resistance for coastal and chemical environments.
- Extended operating temperature range -50°C to +60°C (-58°F to +140°F) — Maintains performance in Arctic, desert, and extreme seasonal climates without de-rating or thermal throttling.
- Dual SD/SDHC/SDxC card slots with AES-256 encryption — Up to 1TB total edge storage with encrypted partition support; enables local failover recording and offline evidence preservation.
- Multiple power options: PoE (802.3af), 12VDC, 24VAC — PoE max 11W (typical 4.8W) provides flexible deployment with standard Ethernet runs; 12VDC and 24VAC options support legacy infrastructure and high-current branch circuits.
- USB port for installation and maintenance — Simplifies firmware updates, SD card management, and field diagnostics without network connectivity requirements.
- Audio playback capability — Enables active deterrence messaging and two-way communication for access control integration.
- Gyro-stabilization (DIS) — Reduces vibration-induced motion blur from wind, traffic, or structural movement.
- White finish with included ivory skin and optional black skin cover — Aesthetic customization for blend-in deployments or high-visibility deterrence.
Hanwha XNV-6081Z/KAN Integration & Compatibility
ONVIF Profile S, G, and T support ensures seamless VMS integration with Milestone, Genetec, and other ONVIF-compliant platforms. Hanwha Vision Open Platform and SUNAPI (HTTP API) enable custom application development and edge analytics deployment. IPv4/IPv6 dual-stack with standard protocols (TCP/IP, UDP, RTP, RTSP, HTTP/HTTPS, SSL/TLS, DHCP, FTP, SMTP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP) supports enterprise network architectures. Secure boot, encrypted firmware, signed firmware, and 802.1X (EAP-TLS/EAP-LEAP) authentication meet government and institutional cybersecurity mandates. Credential encryption and secure recording export with AES-256 SD card partition encryption protect sensitive footage and comply with data protection regulations.
