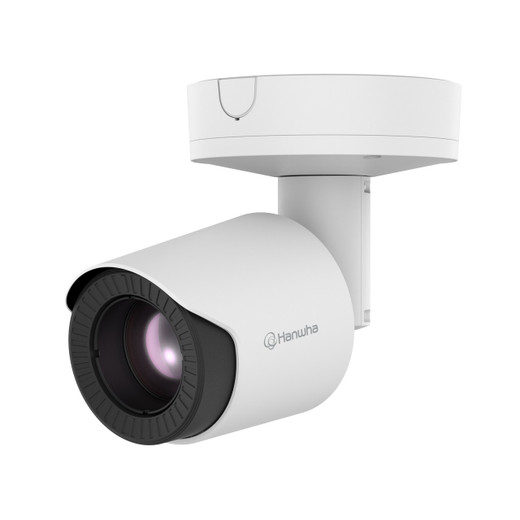

Hanwha TNO-C3082T T network thermal compact bullet camera

Hanwha TNO-C3082T Overview

The Hanwha TNO-C3082T is a Wisenet T network thermal compact bullet camera engineered for long-range thermal detection and classification in complete darkness, adverse weather, and low-contrast conditions. This QVGA thermal camera delivers 384 x 288 native resolution with support for upscaled 768 x 576 @ 8 fps, paired with a 60mm fixed focal lens (6.2° horizontal field of view) optimized for distant target acquisition. Built for outdoor and demanding indoor deployments, the TNO-C3082T combines uncooled thermal sensing (<20mK NETD), AI-powered analytics, triple codec compression, and industrial-grade weatherproofing to support perimeter security, critical infrastructure monitoring, and long-range surveillance applications where conventional visible-light cameras fail.

Hanwha TNO-C3082T Key Features

• Uncooled Thermal Sensor with Superior Sensitivity: Captures thermal signatures with <20mK NETD (Noise Equivalent Temperature Difference), enabling precise detection and classification of people and vehicles regardless of ambient lighting, fog, rain, or thermal camouflage.
• Long-Range Optics: 60mm fixed focal lens with 6.2° horizontal field of view delivers extended detection range ideal for perimeter fencing, rooftop surveillance, and applications requiring distant target identification without pan/tilt mechanics.
• AI-Based Object Detection and Analytics: WiseStream III AI engine–powered analytics including Person/Vehicle detection, Virtual line crossing and direction tracking, and Virtual area loitering/intrusion/enter/exit events enable proactive threat response and reduce false alarms.
• Comprehensive Standard Analytics Suite: Motion detection, tampering detection, audio detection, sound classification, shock detection, and virtual area appear/disappear events provide layered event coverage for integrated security workflows.
• Triple Codec Compression (H.265/H.264/MJPEG): WiseStream II and WiseStream III support delivers bandwidth optimization and flexible VMS compatibility; H.265 encoding reduces storage requirements by up to 50% versus H.264 on compatible systems.
• Industrial Durability: IP66 and NEMA4X weatherproofing, IK10 vandal rating, and -40°C to +60°C operating temperature range ensure reliable operation in harsh outdoor environments, coastal salt spray, industrial facilities, and extreme thermal conditions.
• Flexible Power and Edge Storage: PoE (802.3af Class 3, max 10.8W) or 12VDC dual power input eliminates infrastructure constraints; built-in 1TB microSD/SDHC/SDxC card slot supports extended edge recording and local archival independent of network availability.
• Enterprise Security Architecture: Signed firmware, secure boot, IEEE 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2), HTTPS/WSS communication, AES-256 SD card partition encryption, and FIPS 140-3 Level 3 secure element compliance meet corporate and government cybersecurity mandates.
• Integrated Thermal Back Box Design: Factory-integrated back box eliminates field assembly complexity and reduces installation labor while maintaining compact form factor (107.3mm diameter × 275mm length, 2.34 kg).
• PTZ Handover Support: Compatible with Wisenet PTZ systems for coordinated multi-camera thermal workflows and automated handoff between fixed thermal and pan/tilt coverage zones.

Hanwha TNO-C3082T Integration & Compatibility

The TNO-C3082T supports ONVIF Profile S, G, T, and M for universal VMS integration across Milestone, AXIS Camera Station, and third-party ONVIF-compliant platforms. IPv4/IPv6 dual-stack networking includes TCP/IP, UDP/IP, RTP (TCP/UDP), RTSP, RTCP, NTP, HTTP/HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, and CDP for seamless enterprise network deployment. SUNAPI HTTP API and Hanwha Vision Open Platform SDK enable custom integration and edge analytics extension. The camera features IP-based access control, digest authentication with brute-force attack prevention, and device-level certificate management via Hanwha Vision Root CA for zero-trust security architectures. Built-in 2GB RAM and 512MB flash support concurrent streaming, analytics processing, and firmware updates. TAA-compliant variant (TNO-C3082T/KEX) is available for U.S. federal and critical infrastructure procurement.
