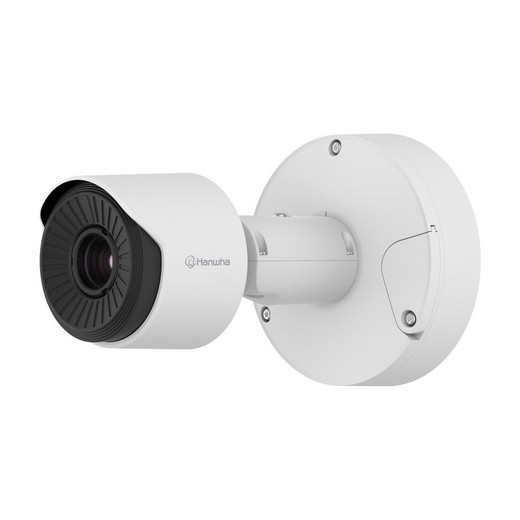

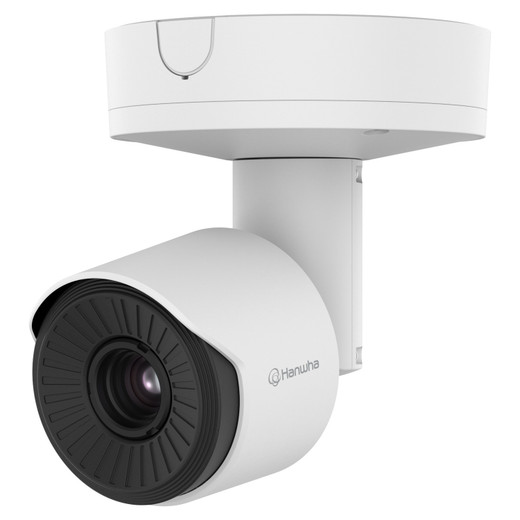

Hanwha TNO-C3052T T network thermal compact bullet camera

Hanwha TNO-C3052T Overview

The Hanwha TNO-C3052T is a compact network thermal bullet camera designed for perimeter surveillance, critical infrastructure protection, and 24/7 monitoring in outdoor and indoor environments where thermal imaging is required. This QVGA-resolution (384 x 288) uncooled thermal camera delivers thermal detection with an exceptional <20mK NETD (Noise Equivalent Temperature Difference), offering precise temperature discrimination in zero-light conditions. The TNO-C3052T combines WiseStream III AI-enabled video compression with robust IP66/NEMA4X/IK10 weatherproofing, making it suitable for harsh, vandal-prone deployments where traditional visible-light cameras are insufficient.

Hanwha TNO-C3052T Key Features

• Uncooled Thermal Sensor with Exceptional NETD: 384 x 288 native resolution thermal imaging with <20mK NETD ensures reliable person and vehicle detection in complete darkness, fog, smoke, and low-contrast environments without visible-light dependency.
• Max Resolution Support and Frame Rate Scaling: Supports up to 768 x 576 resolution at 8 fps, providing flexible resolution/frame-rate trade-offs for bandwidth-constrained networks while maintaining thermal detection accuracy.
• Triple Codec Video Compression: Integrates H.265, H.264, and MJPEG compression, with native support for WiseStream II and WiseStream III AI-based bitrate optimization, reducing bandwidth and storage requirements without sacrificing frame rate or detection performance.
• AI-Powered Object Detection and Virtual Analytics: Built-in AI engine enables real-time detection of persons and vehicles, with intelligent virtual line (crossing/direction detection), virtual area (loitering/intrusion/enter/exit), and standard motion detection events. Includes tampering, audio detection, sound classification, shock detection, and virtual area appear/disappear alerts for comprehensive situational awareness.
• Fixed 19mm Focal Length Lens: 19mm fixed focal lens with 19.3° horizontal field of view, optimized for mid-range perimeter monitoring and entry-point surveillance. No lens adjustments required post-installation, reducing field calibration overhead.
• Edge Storage and Onboard Recording: Integrated SD card slot supporting up to 1TB microSD/SDHC/SDxC storage enables autonomous edge recording, eliminating single points of failure and providing continuous fallback recording independent of network connectivity or NVR availability.
• Low Power Consumption and Dual Power Input: Operates on PoE (IEEE 802.3af, Class 3) at typical 9W, maximum 10.8W, or 12VDC at typical 7.7W, maximum 9.4W. PoE operation simplifies cabling by combining power and data on a single CAT6 run; 12VDC option allows standalone installation in power-constrained sites.
• IP66/NEMA4X/IK10 Environmental Durability: Sealed aluminum housing rated IP66 (dust-tight, high-pressure water jets) and NEMA4X (corrosion-resistant stainless-steel hardware), with IK10 impact rating (20 joules) for vandal resistance. Supports -40°C to +60°C operating temperature range, ensuring reliable performance in extreme climate conditions.
• Integrated Backbox: Factory-integrated mounting backbox eliminates the need for separate accessory brackets during standard wall or surface mounting, reducing installation labor and improving seal integrity.
• PTZ Handover Support: Integrates with PTZ camera workflows, allowing thermal TNO-C3052T to trigger or handover detection events to pan-tilt-zoom cameras for rapid zoom verification and incident response.
• Enterprise-Grade Cybersecurity: Signed firmware, secure boot, encrypted firmware, digest authentication with brute-force attack prevention, IEEE 802.1X network authentication (EAP-TLS/EAP-LEAP/EAP-PEAP/MSCHAPv2), HTTPS/WSS secure communications, and SD card AES-256 partition encryption. Includes FIPS 140-3 Level 3 certified secure element for compliance-driven deployments.
• Network Protocol Support and VMS Integration: Full IPv4/IPv6 dual-stack support with ONVIF S/G/T/M profile compatibility, RTSP/RTP streaming, MQTT for IoT integration, and open HTTP API (SUNAPI) alongside Hanwha Vision Open Platform for third-party VMS integration. Bonjour, LLDP, and CDP enable network discovery; SNMP v1/v2c/v3 MIB-2 for enterprise monitoring.

Hanwha TNO-C3052T Integration & Compatibility

The TNO-C3052T is ONVIF Profile S, G, T, and M compliant, ensuring compatibility with industry-standard VMS platforms including Milestone Husky, Genetec Omnicast, Axis Camera Station, and open ONVIF-compliant recording systems. HTTP API and SUNAPI support enable custom integration and automation workflows. The camera supports IP-based access control, audit logging (access/system/event), and secure device certificates backed by Hanwha Vision Root CA. Network authentication via 802.1X and TLS ensure enterprise-grade policy enforcement. Optional TAA-compliant model TNO-C3052T/KEX is available for U.S. federal procurement.
