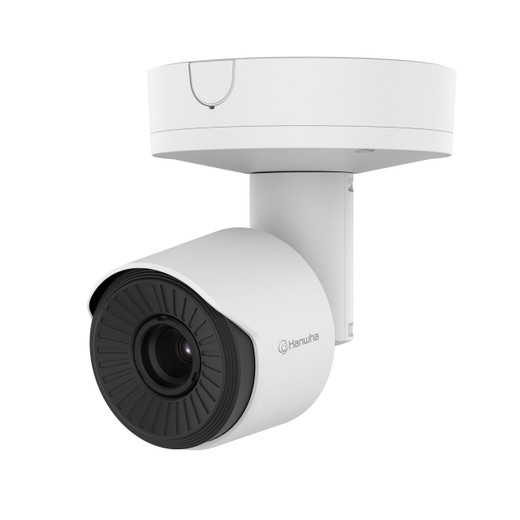

Hanwha TNO-C3042T Overview
The Hanwha TNO-C3042T is a compact QVGA thermal network bullet camera engineered for long-range detection and classification of people and vehicles in complete darkness, adverse weather, and low-contrast conditions. Built on an uncooled microbolometer sensor with <20mK NETD, this purpose-built thermal camera delivers consistent thermal contrast and accurate object detection even where visible-light solutions fail. Deploy indoors or outdoors in perimeter security, critical infrastructure, transportation, and industrial monitoring applications where thermal imaging provides unmatched situational awareness.
Hanwha TNO-C3042T Key Features
- QVGA thermal resolution with 8fps upsampling: 384 x 288 native resolution with support for upsampled 768 x 576 at 8 fps, enabling larger monitoring footprints without resolution penalty
- Long-range 13mm fixed focal lens: 28.5° horizontal field of view optimized for perimeter and mid-to-long-range surveillance; single focal length simplifies deployment planning and eliminates focus drift

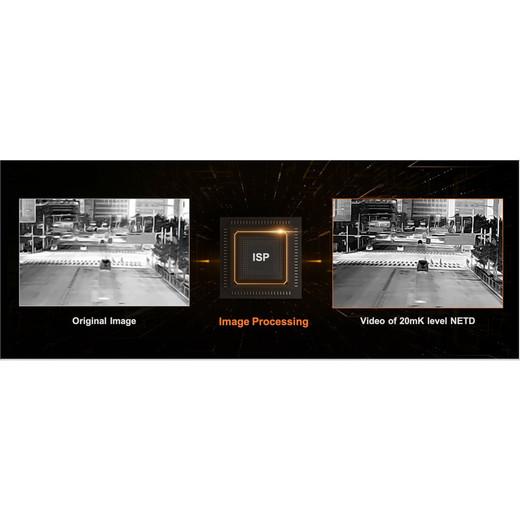

- Uncooled thermal sensor with <20mK NETD: Radiometric-class thermal performance delivers temperature measurement accuracy and superior image detail in complete darkness, fog, rain, and snow where conventional cameras are blind
- AI-powered object detection and classification: WiseStream III support enables Person and Vehicle detection with minimal false positives; integrates deep learning analytics at the edge to reduce bandwidth and false alarms
- Advanced virtual analytics events: AI-based virtual line (Crossing/Direction), virtual area (Loitering/Intrusion/Enter/Exit), plus standard motion detection, tampering, audio detection, sound classification, shock detection, and virtual area (Appear/Disappear) with PTZ handover capability
- Triple codec support with WiseStream compression: H.265, H.264, and MJPEG codecs with WiseStream II and WiseStream III support deliver bandwidth-efficient storage and streaming; adaptive bitrate reduces network load during periods of minimal motion
- Rugged IP66, NEMA4X, IK10 construction: Fully sealed aluminum bullet with integrated back box withstands high-pressure washdowns, coastal salt spray, and impacts up to 50 joules; suitable for outdoor perimeter, vehicle inspection, and vandal-prone environments
- PoE and 12VDC power flexibility: IEEE 802.3af PoE (max 10.8W typical 9W) or 12VDC (max 9.4W typical 7.7W) eliminates dependency on local AC; simplifies cabling in remote locations
- Built-in 1TB microSD/SDHC/SDxC edge storage with AES-256 encryption: On-camera recording with secure partition encryption and secure element (FIPS 140-3 Level 3, CC EAL 6+); supports continuous recording or event-triggered archive
- 2GB RAM, 512MB Flash, enterprise networking stack: Full IPv4/IPv6 support with TCP/IP, UDP, RTP, RTSP, NTP, HTTP/HTTPS, DHCP, FTP, SFTP, SMTP, SNMP, QoS, UPnP, Bonjour, LLDP, CDP, MQTT, and Syslog
- Enterprise-grade security and device management: Encrypted firmware, secure boot, signed firmware, digest authentication, IEEE 802.1x (EAP-TLS/LEAP/PEAP), HTTPS/WSS, SRTP, IP-based access control, and ONVIF S/G/T/M profiles for VMS integration and API access
- TAA-compliant variant available: TNO-C3042T/KEX meets Buy American Act compliance for U.S. government and federally funded projects
Hanwha TNO-C3042T Integration & Compatibility
ONVIF Profile S, G, T, M support ensures compatibility with standards-based VMS platforms and third-party integrations. HTTP API (SUNAPI) and Hanwha Vision Open Platform enable custom application development and system integration. IPv4/IPv6 networking with full suite of protocols (TCP/IP, UDP, RTP, RTSP, DHCP, DNS, DDNS, NTP, SNMP v1/v2c/v3, 802.1x EAP) supports enterprise network deployment. Device certificate authentication via Hanwha Vision Root CA; secure element provides FIPS 140-3 Level 3 cryptographic storage. Standard bullet conduit hole; optional adaptor for compatibility with alternative mounting configurations.
