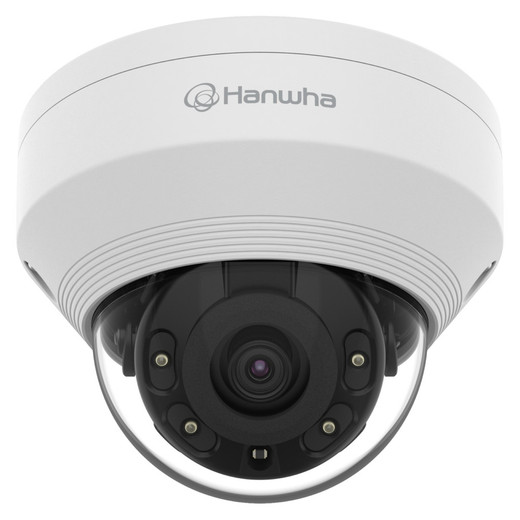

Hanwha QNV-7012RB Outdoor Vandal Dome Camera

Hanwha QNV-7012RB Overview

The Hanwha QNV-7012RB is a 4MP Wisenet Q series network dome camera engineered for outdoor vandal-resistant surveillance. This fixed-lens model combines robust IP66 and IK10 weatherproofing with intelligent video encoding and local storage, making it ideal for securing exposed infrastructure, perimeter access points, and high-risk deployment zones where camera tampering is a concern.

Hanwha QNV-7012RB Key Features

• 4MP Resolution at 30 fps: Captures 4 megapixel video at 30 frames per second, delivering sharp detail for identification and forensic review across outdoor scenes.
• 2.8mm Fixed Focal Lens (107° Field of View): Wide horizontal angle coverage minimizes blind spots in perimeter and entrance monitoring applications without requiring manual focus adjustment.
• Triple Codec Support (H.265/H.264/MJPEG): Flexible compression options enable bandwidth optimization; H.265 reduces storage and transmission load by up to 50% compared to H.264 while maintaining quality.
• Wisestream II Compression Technology: Adaptive bitrate encoding scales bandwidth and storage consumption based on scene activity, lowering operational costs in long-term retention deployments.
• 120dB Wide Dynamic Range (WDR): Forensic-grade WDR handles extreme backlighting conditions—direct sunlight, reflective surfaces, vehicle headlights—ensuring usable detail in both bright and shadowed areas simultaneously.
• IR LED Illumination (65 feet range): Integrated infrared LEDs extend night vision capability to 65 feet, enabling 24/7 surveillance without auxiliary lighting in low-light and no-light environments.
• Motion Detection & Tampering Alerts: Built-in motion detection triggers recording and alerts; tampering detection automatically logs physical interference (lens obstruction, camera displacement) with timestamp.
• Defocus Detection: Automatically detects lens fouling, obstruction, or misalignment and generates alerts, reducing false alarms and ensuring video integrity.
• Hallway View Mode: Optimizes video composition for corridor and narrow-passage monitoring; reduces unnecessary image height and increases horizontal coverage efficiency.
• One-Way Audio: Built-in speaker enables remote verbal warnings or announcements from monitoring stations without requiring external audio hardware.
• Local Storage (microSD, up to 128GB): On-board microSD card slot supports up to 128GB capacity for autonomous backup recording and failsafe retention when network connectivity is interrupted.
• IP66 & IK10 Rated Enclosure: IP66 protection shields against heavy rain, washdown, and dust; IK10 impact resistance withstands deliberate tampering and environmental abuse, qualifying for unsheltered outdoor and high-traffic zones.
• Dual Power Input (PoE & 12VDC): PoE (802.3af) operation eliminates separate power infrastructure; 12VDC alternative accommodates legacy or high-density power distribution systems.

Hanwha QNV-7012RB Integration & Compatibility

The QNV-7012RB is a standard ONVIF-compliant network camera compatible with major VMS platforms and third-party NVR systems. It integrates with Hanwha Wisenet software ecosystems and supports HTTP/RTSP video streaming protocols for flexible deployment in heterogeneous surveillance networks. Mounting options include standard ceiling and wall brackets; the vandal dome form factor is rated for semi-exposed and outdoor installations where conventional box or bullet cameras face environmental and tampering risks.
