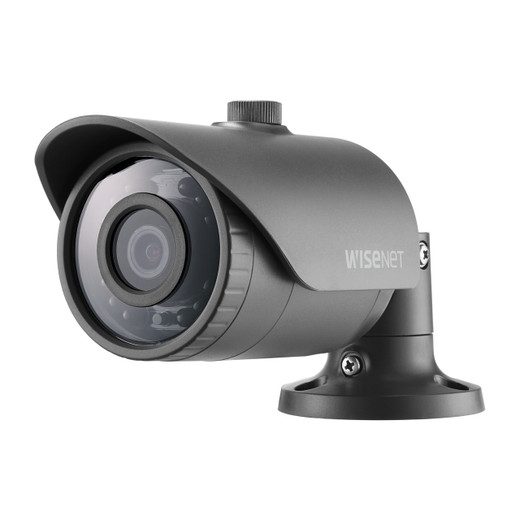

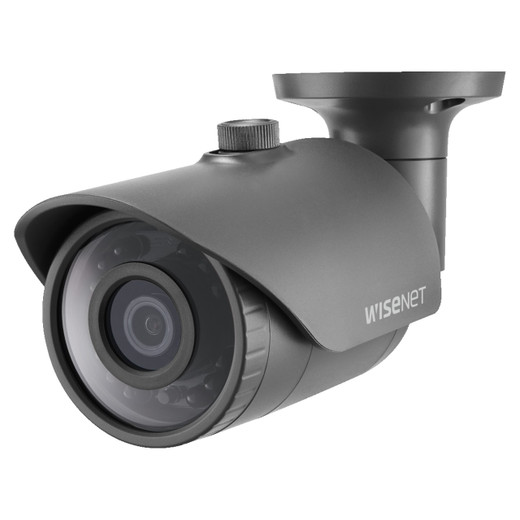

Hanwha HCO-6020R HD+ 2MP IR bullet camera

Hanwha HCO-6020R Overview

The Hanwha HCO-6020R is a 2MP Wisenet HD+ analog IR bullet camera designed for surveillance applications requiring flexible transmission over standard coaxial infrastructure. This camera delivers Full HD resolution at 1,920×1,080 with native support for multiple analog protocols—AHD, CVI, TVI, and CVBS—making it a drop-in solution for mixed-protocol deployments and legacy system migrations. The HCO-6020R is rated IP66 for outdoor installation and features integrated IR illumination for true day/night operation across demanding lighting conditions.

Hanwha HCO-6020R Key Features

• Full HD 2MP Resolution: Captures 1,920×1,080 video at full frame rate for clear identification and evidence-grade detail in surveillance coverage.
• Multi-Protocol Compatibility: Native support for AHD, CVI, TVI, and CVBS transmission formats enables integration with existing analog HD systems without protocol conversion or additional hardware.
• 98-Foot IR Range: Built-in infrared LED illumination provides 30m (98.43 feet) viewable length for complete low-light and zero-light coverage without auxiliary lighting.
• True Day/Night with ICR: Integrated IR cut filter removal automatically switches between color mode (day) and monochrome (night) for optimized image quality across 24-hour operation; achieves 0.17 lux @ F1.6 in color mode and 0 lux in B/W (IR LED on).
• 120dB Wide Dynamic Range: WDR processing handles high-contrast scenes—backlit entrances, windows, mixed indoor/outdoor zones—maintaining detail in both bright and shadow areas simultaneously.
• 4mm Fixed Lens: Purpose-built 4.0mm focal length with F1.6 maximum aperture delivers 98-degree diagonal field of view, suitable for general-purpose surveillance of corridors, entrances, and perimeter monitoring.
• Extended Transmission Distance: Achieves up to 500m coaxial transmission distance on standard cable, reducing infrastructure costs and enabling installations in larger facilities without signal repeaters.
• Compact Bullet Design: 2.31" × 6.50" dimensions (ø58.6 × 165.2mm) and 279g weight enable discrete mounting on walls, under eaves, or on poles with minimal visual footprint.
• IP66 Environmental Rating: Dust and water-tight construction rated IEC 60529 IP66 permits outdoor and semi-outdoor deployment without housing enclosures in rain, snow, and washdown environments.
• Integrated Motion Detection: Built-in motion detection analytics trigger recording or alerts on coaxial protocol for basic event-driven surveillance without external VMS requirement.
• Low Power Consumption: Operates on single 12VDC supply; maximum power draw of 5.4W reduces power infrastructure requirements and supports extended operation on battery or UPS backup systems.
• Coaxial Device Control: Full plug-and-play installation via ACP, TCP, and CCP coaxial protocols; no separate control cabling required for camera configuration and firmware updates.

Hanwha HCO-6020R Integration and Deployment

The HCO-6020R operates as a standalone analog HD camera and is compatible with any hybrid DVR or analog HD recorder supporting AHD, CVI, TVI, or CVBS video input. Integrators should verify the target recorder's protocol support before deployment. The camera's coaxial control protocol (ACP/TCP/CCP) enables remote pan, tilt, zoom, and configuration adjustments where supported by the connected recorder. For motion detection export and advanced analytics, connect the camera to an IP gateway or hybrid recorder capable of analog-to-IP conversion. No ONVIF or network connectivity is native to this analog device; for IP-based VMS integration, a coax-to-IP converter or hybrid recorder is required. Compatible mounting accessories include the SBO-100B1 backbox for weather protection and the SBP-302PM pole mount (dark gray) for standard installation.
