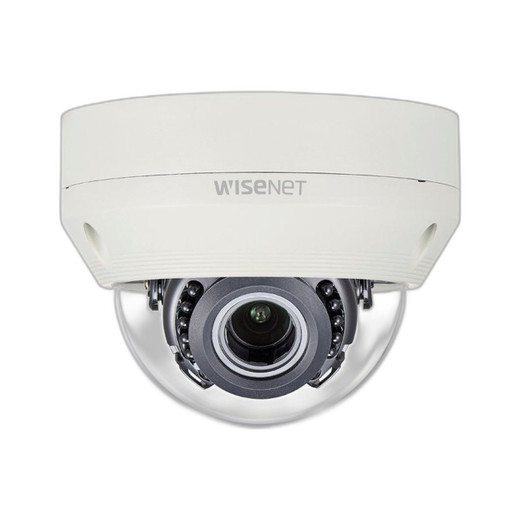

Hanwha HCV-6080R HD+ 2MP

Hanwha HCV-6080R Overview

The Hanwha HCV-6080R is a 2MP analog HD dome camera engineered for outdoor surveillance deployments requiring robust vandal resistance and reliable infrared night vision. This camera delivers Full HD (1080p) resolution at 30 fps across multiple analog HD transmission protocols (AHD, TVI, CVI, CVBS), making it compatible with existing hybrid and analog infrastructure without requiring DVR or NVR replacement. Built for harsh environments, the HCV-6080R combines motorized lens control, true day/night imaging, and advanced wide dynamic range processing to maintain video clarity in challenging lighting and weather conditions.

Hanwha HCV-6080R Key Features

• Full HD 1080p Resolution at 30 fps — Captures crisp detail with 2MP sensor delivering 1920×1080 video suitable for identification-grade surveillance in outdoor perimeter, parking lot, and property entrance applications.
• Motorized Varifocal 3.2-10mm Lens (3.1x zoom) — Provides flexible field-of-view adjustment without manual lens replacement, allowing installers to optimize coverage from a distance without site revisits.
• IR Night Vision with 98-Foot Range — Integrated IR LEDs deliver continuous monochrome surveillance up to 30 meters (98.43 feet) in total darkness (0 Lux B/W mode), enabling 24/7 perimeter monitoring without supplemental lighting.
• True Day/Night (ICR) with 120dB WDR — Intelligent Color Range switching and 120dB Wide Dynamic Range processing preserve detail in mixed lighting scenes—such as parking areas with overhead lights and dark corners—maintaining usable video during sunrise/sunset transitions.
• Dual Power Supply (24VAC / 12VDC) — Operates on either 24VAC (standard for analog systems) or 12VDC, with maximum power consumption of 5.8W, simplifying integration into existing power distribution and reducing infrastructure costs.
• IP66 Weatherproofing and IK10 Vandal Resistance — Sealed against dust and high-pressure water jets; hardened aluminum dome withstands IK10-rated impacts (20 joules), protecting the camera from casual tampering and environmental exposure in uncontrolled outdoor spaces.
• Superior Motion Detection and Privacy Masking — Supports 4 quantized motion detection zones and 8 programmable privacy masking zones, reducing false alerts and protecting sensitive areas without requiring external analytics hardware.
• Extended Transmission Distance (500m Max) — Supports coaxial transmission protocols (ACP, TCP, CCP, CVBS) with maximum 500-meter cable run capability, enabling installation in large facilities and properties without signal degradation.
• SSNR Digital Noise Reduction — Spatial-Temporal Spectral Noise Reduction (SSNR V) improves low-light video quality and reduces compression artifacts, maintaining usable detail in underlit or nighttime conditions.
• Flexible Gain Control and White Balance — Four-level gain adjustment (Low, Middle, High, Very High) and multiple white-balance modes (ATW, AWC, Manual, Indoor, Outdoor presets) optimize image quality across diverse lighting environments without DVR intervention.
• Electronic Shutter (1–1/12,000 sec) — Fast shutter speeds prevent motion blur and bloomin in high-light scenarios, ensuring sharp capture of fast-moving subjects in bright daylight.
• Compact Vandal-Resistant Housing — Aluminum construction with 725g (1.59 lb) weight and ø137×106.1mm form factor fits standard ceiling and wall mount bases, enabling discrete installation in retail, industrial, and institutional environments.

Hanwha HCV-6080R Integration & Compatibility

The HCV-6080R integrates seamlessly into hybrid analog surveillance systems and supports multiple coaxial transmission protocols: ACP (Hanwha proprietary), TCP, CCP, and standard CVBS. RS-485 control enables remote focus and zoom adjustment from compatible DVRs and control panels. The camera is compatible with a full line of Hanwha mounting accessories including wall mount bases (SBP-300B, SBP-300WM1), pole mounts (SBP-300PM1), pendant mounts (SBP-300CM), corner mounts (SBP-300KM1), parapet mounts (SBP-300LM), installation boxes (SBP-300NB), and protective domes (SPB-VAN72). Plug-and-play installation with dual power options eliminates complex configuration, reducing on-site labor and commissioning time.
