Hanwha HCD-6070R HD+ 2MP

Hanwha HCD-6070R Overview

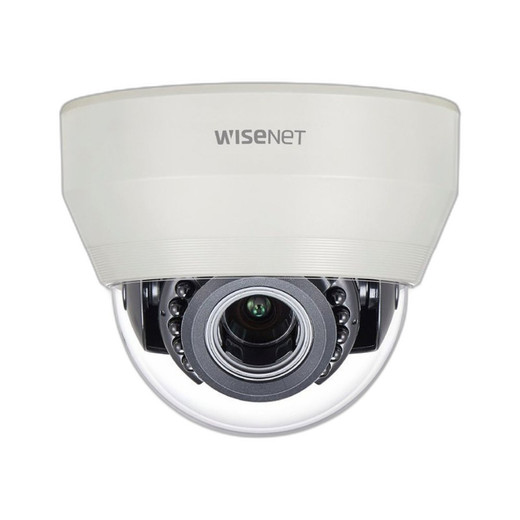

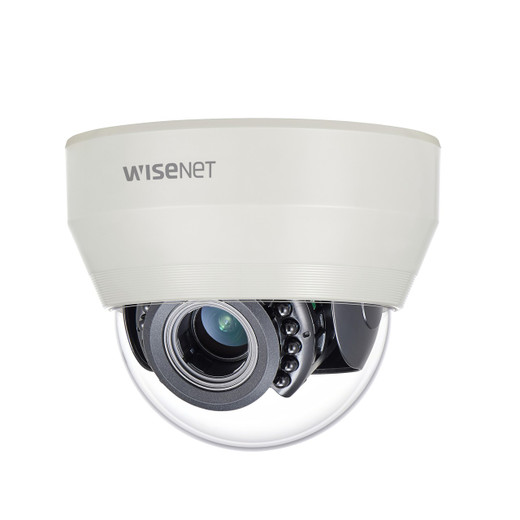

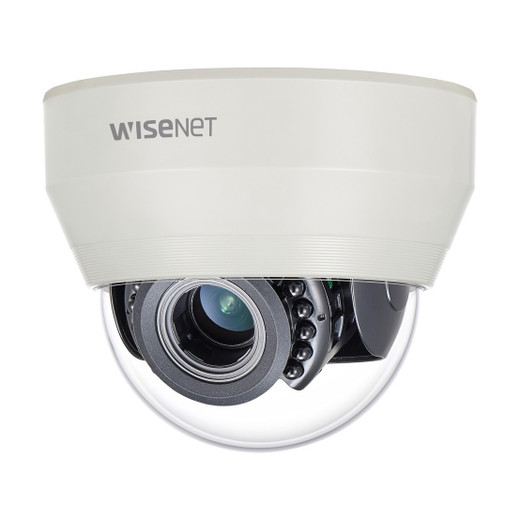

The Hanwha HCD-6070R is a 2MP Full HD (1080p) analog HD indoor dome camera purpose-built for surveillance integrators seeking multi-protocol hybrid analog compatibility and true low-light performance. Engineered for standard ceiling and wall installations in access control, retail, and facility monitoring applications, the HCD-6070R delivers full HD resolution at 30 fps with switchable AHD, TVI, CVI, and CVBS output modes, enabling seamless integration into existing analog and hybrid infrastructure without requiring backbone system changes.

Hanwha HCD-6070R Key Features

• Full HD Resolution at 30 fps — 2MP (1920×1080) image capture at 30 fps supports clear identification and forensic review in indoor facility monitoring, retail, and access control deployments.
• Multi-Protocol Analog HD Compatibility — Native support for AHD, TVI, CVI, and CVBS transmission protocols eliminates the need for costly DVR replacement; deploy over existing coaxial infrastructure with zero protocol conversion overhead.
• 3.2-10mm Manual Varifocal Lens (3.1x Zoom) — Field-adjustable lens delivers flexible field-of-view adjustment from wide to medium-telephoto coverage without requiring lens swaps; optimal for variable-distance indoor deployments such as hallways, lobbies, and retail floors.
• 120dB Wide Dynamic Range (WDR) with SSNR IV — Captures detail in high-contrast indoor environments with backlighting or mixed sunlight/artificial illumination; Smart Spatial Noise Reduction IV minimizes compression artifacts and grain in low-light scenes.
• True Day/Night with Infrared (ICR) — Integrated 65-foot IR LED array with true mechanical infrared cut filter (ICR) switching delivers 0 Lux (B/W, IR on) performance for 24/7 indoor monitoring; captures color during daylight (0.11 Lux @ F1.6) and transitions seamlessly to grayscale IR illumination in darkness.
• Motion Detection and Privacy Masking — Built-in motion detection with 4 alarm input/output channels; supports 8 rectangular privacy masking zones to obscure sensitive areas and meet compliance requirements.
• Dual Power Input (24VAC/12VDC) — Accepts both AC and DC power supplies (Max 4.2W consumption on either rail); simplifies installation in mixed power environments and provides flexible power budget allocation.
• Extended Transmission Distance (500m/1640 ft) — Supports 1640-foot maximum coaxial transmission over standard RG-59 cable for sprawling facilities; ACP, TCP, and CCP protocols optimize signal integrity at distance.
• Electronic Shutter and Gain Control — Shutter speed range 1–1/12,000 sec with selectable gain levels (Low, Middle, High, VeryHigh) and white balance modes (ATW, AWC, Manual, Indoor, Outdoor) enable fine-tuning for varied indoor lighting conditions.
• Compact Dome Housing — Polycarbonate dome enclosure (4.72" × 3.88" diameter; 0.71 lbs) fits standard ceiling fixtures; rated for -10°C to +55°C (14°F to 131°F) operation and non-condensing humidity up to 90% RH.
• RS-485 Control Interface — Supports remote lens, gain, and shutter adjustment via standard RS-485 protocol for centralized system management.

Hanwha HCD-6070R Integration & Compatibility

The HCD-6070R is engineered for hybrid analog-to-HD migration workflows. Its four coaxial protocols (AHD, TVI, CVI, CVBS) permit flexible DVR/hybrid recorder selection across major manufacturers; integrators can deploy a single camera model across multiple platform ecosystems without protocol conversion appliances. Alarm input/output (1 input, 1 output) integrate with standard access control and third-party relay systems. RS-485 PTZ control enables remote lens and exposure adjustment from compatible hybrid recorders and control panels. Hanwha provides a comprehensive mounting ecosystem including wall mounts (SBP-120WM), pendant mounts (SBP-300CM), parapet mounts (SBP-300LM), corner bases (SBP-300KM1), and installation boxes (SBP-300NB); tinted and clear bubble covers (SPB-IND6) are available for aesthetic integration.
