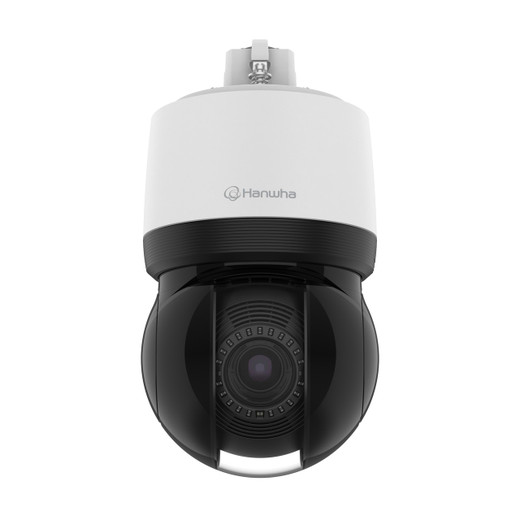

Hanwha XNP-C6403R/KEX Overview
The Hanwha XNP-C6403R/KEX is a TAA-compliant network PTZ camera engineered for large-area outdoor surveillance requiring extreme optical reach, exceptional low-light performance, and advanced AI-driven analytics. With 2MP resolution at up to 60 fps, a 4.25mm–170mm (40x optical zoom) lens, 200-meter adaptive Wise IR coverage, and 150dB extreme wide dynamic range, this camera delivers forensic-quality imagery across challenging environmental conditions. Rated IP66 and IK10 with NEMA 4X and NEMA TS 2 compliance, it is built for weather-exposed and vandalism-prone installations where reliability and performance cannot be compromised.
Hanwha XNP-C6403R/KEX Key Features
- 2MP Resolution at 60 FPS — Captures high-frame-rate video suitable for tracking fast-moving subjects and generating forensically detailed evidence without motion blur.
- 40x Optical Zoom (4.25mm–170mm Lens) — Extended focal range enables identification and monitoring from significant distances, critical for perimeter security, parking structures, and wide-area surveillance applications.
- 200-Meter Adaptive Wise IR with Lens Heater — Maintains visibility in complete darkness and adverse weather. The integrated lens heater eliminates water droplets and snow buildup, ensuring uninterrupted coverage in rain, snow, and freezing conditions.
- Extreme 150dB Wide Dynamic Range (WDR) — Captures shadow and highlight detail simultaneously in high-contrast scenes such as backlit entrances, mixed indoor/outdoor transitions, and sunlit vehicle lots.
- Day & Night ICR (Infrared Cut-off Filter Removal) — Automatic switching between color and monochrome modes optimizes image quality across all lighting conditions without manual intervention.
- AI-Powered Object Detection & Tracking — Native deep-learning analytics identify Person, Face, Vehicle, and License Plate with configurable confidence thresholds. Auto-tracking follows moving objects; Target Lock maintains focus on designated subjects. No external GPU or edge appliance required.
- Intelligent Video Analytics (IVA) — Virtual line crossing, area intrusion, loitering detection, directional movement analysis, and enter/exit events trigger alarms and recordings based on actual behavior rather than motion pixels alone.
- Supplementary Forensic Analytics — Fog detection, defocus detection, motion detection, tampering alerts, and audio/sound classification (via optional SPM-4210 I/O Box) provide comprehensive event context.
- Multi-Codec Support (H.265, H.264, MJPEG) — H.265 encoding reduces bandwidth and storage by up to 50% compared to H.264 while maintaining image fidelity. MJPEG option ensures compatibility with legacy systems.
- IP66/IK10/NEMA 4X/NEMA TS 2 Ruggedization — Sealed against dust and water jets; survives IK10 mechanical impacts (20J); rated for harsh outdoor and corrosive environments.
- FIPS 140-2 Cryptographic Compliance — Meets federal security standards for encrypted data transmission and storage authentication, essential for government and regulated enterprise deployments.
- Backlight & Highlight Compensation (BLC/HLC) and SSDR — Additional image processing modes handle edge-case lighting scenarios beyond WDR capabilities.
- PoE Power (802.3af) — Standard Power-over-Ethernet simplifies installation by eliminating separate power runs to the camera location.
Hanwha XNP-C6403R/KEX Integration & Compatibility
The XNP-C6403R/KEX supports ONVIF-compliant management platforms and integrates with standard network video management systems via SUNAPI HTTP APIs. Audio I/O and alarm relay functions require the optional SPM-4210 Network I/O Box, a PoE-powered accessory with 4 configurable relay ports and dual audio channels (input selectable as mic or line level; output at line level). The SPM-4210 connects via Ethernet without requiring direct camera wiring, simplifying installation in high-reach or difficult-access locations. Operating temperature range spans -40°C to +55°C, ensuring stable performance in arctic and desert environments.
Hanwha XNP-C6403R/KEX Package Contents
- XNP-C6403R/KEX PTZ Camera (lens included)
- Mounting bracket and hardware
- Quick start guide
- Note: PoE Injector NOT included; must be purchased separately or sourced from NVR PoE ports
