Speco V5B2M 5MP HD-TVI Bullet Camera 2.8-12mm IR

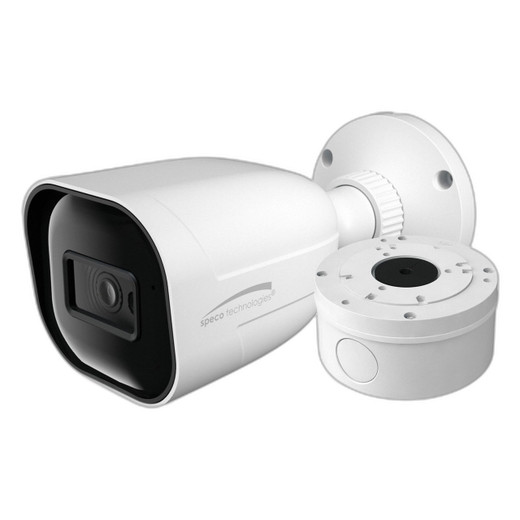

Speco Technologies V5B2M 5MP HD-TVI Bullet Camera

Overview

The Speco Technologies V5B2M is a 5MP HD-TVI bullet camera designed for outdoor surveillance deployments requiring motorized zoom capability and infrared night vision. This model combines fixed-bullet form factor durability with varifocal lens flexibility, delivering 2592x1944 resolution at 20 fps. The V5B2M integrates a 2.8-12mm motorized lens, allowing remote adjustment of field of view without camera repositioning. DC 12V power and ONVIF Profile I compatibility enable straightforward integration into existing TVI and network-based surveillance systems.

When this is the correct choice

The V5B2M is well-suited for outdoor perimeter monitoring, parking areas, and facility entry points where zoom capability provides operational flexibility without requiring PTZ infrastructure. The IP67 rating and -22 to 122°F operating temperature range support year-round deployment in temperate to cold climates. Integrators valuing motorized zoom in a fixed form factor—avoiding pan-tilt complexity—will find the V5B2M a practical middle ground. The included junction box simplifies installation on poles or walls.

When to choose a different model

If your deployment requires active pan-tilt or continuous zoom adjustments, a PTZ camera is necessary. For ultra-wide dynamic range applications (automotive, retail with direct sunlight), evaluate models with higher WDR specifications. If your site is temperature-constrained below -22°F or above 122°F, confirm alternative models' thermal ratings. For installations requiring PoE (Power over Ethernet), confirm your recorder or switch supplies DC 12V or verify AC/DC power availability.

Optics and field of view

The 2.8-12mm motorized varifocal lens provides zoom range flexibility without manual lens change. At 2.8mm, the camera delivers wide field of view for area coverage; at 12mm, telephoto framing isolates detail in distant subjects. The motorized focus and zoom mechanics allow remote adjustment via compatible TVI receivers or network integration, eliminating repeated site visits for lens adjustment. Lens-mounted iris and focus mechanisms optimize performance across changing light conditions.

Imaging performance and low light

The 1/2.7" CMOS sensor captures 5 megapixels at 20 fps, providing frame rate adequate for forensic review and real-time monitoring. Day/Night functionality with infrared LEDs enables surveillance during hours of darkness; IR operation automatically engages when ambient light falls below detection threshold. The WDR (Wide Dynamic Range) feature reduces overexposure and shadow crush in mixed-lighting environments, preserving detail across high-contrast scenes. Nighttime capability extends usable surveillance hours without relying on site illumination.

Analytics and edge capabilities

Source evidence does not specify edge-based analytics (motion detection, people counting, or object classification) on the V5B2M. Confirm analytics requirements with your VMS or DVR platform; many TVI recorders provide server-side or client-side analytics independent of the camera.

Video encoding and streaming

The V5B2M outputs HD-TVI video format, optimized for coaxial cable transport to TVI-compatible recorders. ONVIF Profile I support enables network-based integration and streaming to ONVIF-compliant management platforms. Confirm your recorder or network switch supports both TVI and ONVIF input modes to maximize flexibility.

Network and security

ONVIF Profile I compliance ensures interoperability with third-party VMS and network infrastructure. Direct TVI connectivity to legacy recorders avoids network overhead; ONVIF integration provides long-distance IP transport. Integrate within secure network segments and implement standard IP camera firewall rules (restricted access, firmware updates, credential change on deployment).

Environmental and durability ratings

IP67 ingress protection rating seals the camera against dust, rain, and spray; the plastic housing resists corrosion in outdoor environments. Operating temperature range of -22 to 122°F (-30 to 50°C) covers most North American climates; confirm suitability for your site's seasonal extremes. The included junction box provides weatherproof power and signal termination, reducing field assembly complexity.

Power and installation notes

DC 12V power input simplifies integration with standard surveillance PSUs and solar-powered installations. The camera accepts both AC/DC supply; confirm your power source delivers stable 12V at adequate amperage (typical bullet cameras draw 300-500mA). Weight of 2.46 lbs allows mounting on standard wall or pole brackets; the included junction box accommodates terminal connections. Motorized lens requires stable power during zoom/focus adjustment to prevent mid-operation shutoff.

What is included

• Speco V5B2M 5MP HD-TVI bullet camera (white finish)
• 2.8-12mm motorized varifocal lens (pre-installed)
• Junction box for outdoor power and signal termination

James Everett

During a recent perimeter deployment for a regional distribution center, I evaluated the Speco V5B2M as a cost-effective alternative to full PTZ systems. The motorized 2.8-12mm lens proved valuable for adjusting field of view post-installation without climbing the pole again—a real operational win on a 40-camera rollout. The V5B2M's IP67 rating and included junction box simplified outdoor termination, and the day/night IR mode captured clear images through rain and snow without auxiliary lighting.

Technical Highlights:

• 5MP resolution at 20 fps: Sufficient for identification-grade detail on faces and license plates within 30–50 feet, depending on lens position and illumination.
• Motorized zoom (2.8–12mm): Remote adjustment via TVI receiver or ONVIF interface eliminates physical lens swaps and reduces on-site labor.
• Day/Night IR: Automatic switching to infrared provides 24/7 surveillance; confirm IR range meets your coverage distance (typically 50–70 feet for 5MP at 2.8mm).
• IP67 + -22 to 122°F range: Outdoor durability in temperate climates; validated for salt-air and freeze-thaw cycling with proper drainage at junction box.

Deployment Considerations:

• Pair with a TVI DVR that supports motorized lens control (via RS-485 or ONVIF) to unlock zoom adjustment. Legacy coax-only recorders will lose zoom convenience.
• Install the junction box under an eave or within a protective shroud to extend lifespan in high-moisture environments; moisture ingress at terminals is the leading field failure mode.
• Confirm your power supply can sustain 12V under zoom/focus load; brief voltage sag during motorized adjustment can cause image glitches or recorder communication loss.

The V5B2M is a pragmatic choice for integrators balancing zoom flexibility and durability without full PTZ expense. Its ONVIF compliance ensures future network migration, and the motorized lens justifies careful power planning during installation. Recommended for outdoor fixed-mount deployments where operator convenience and long-term cost matter as much as pixel density.
