Speco O8VB3M 8MP H.265 IR Bullet Camera 2.8-12mm

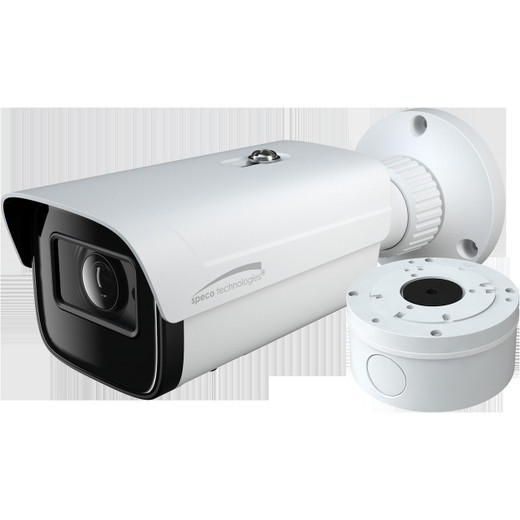

Speco Technologies O8VB3M 8MP IR Bullet Camera with Motorized Lens

Overview

The Speco O8VB3M is an 8-megapixel fixed bullet camera designed for outdoor surveillance installations requiring high-resolution image capture across variable lighting conditions. This wired IP camera delivers 3840x2160 resolution at 20 fps using H.265 compression, reducing bandwidth and storage requirements compared to H.264 encoding. The integrated 2.8–12mm motorized varifocal lens provides flexible field-of-view adjustment without requiring a return visit to site. True day/night operation with infrared illumination enables 24/7 monitoring in low-light and no-light environments. ONVIF Profile G compatibility ensures broad VMS integration, while edge-based analytics (line crossing, intrusion detection) enable immediate threat response without reliance on central processing.

When this is the correct choice

Select the O8VB3M for fixed outdoor perimeter monitoring, parking area surveillance, and entry point protection where motorized lens adjustment is required. The 8MP sensor and H.265 codec are well-suited to deployments where storage bandwidth is constrained or where zoom flexibility is needed without mechanical reinstallation. The PoE power option simplifies cabling in retrofit installations. IP67 environmental rating and wide operating temperature range (-40°F to 140°F) make this unit suitable for exposed outdoor mounting in temperate to cold climates. The included junction box accelerates weatherized installation on pole or wall mounts.

When to choose a different model

If your installation requires fixed, narrow field-of-view operation with minimal configuration, a fixed-lens bullet may offer lower cost. If pan-tilt-zoom capability is mandatory, select a PTZ model. If sub-zero operation below -40°F or extreme heat above 140°F is required, consult thermal specification alternatives. Integrations requiring ONVIF Profile S or T only should verify full compatibility before purchase.

Optics and field of view

The motorized 2.8–12mm varifocal lens affords approximately 106° horizontal field of view at 2.8mm (wide) and 28° at 12mm (narrow). This range accommodates both broad perimeter scanning and targeted facial/license plate detail capture from a single camera position. The motor allows remote adjustment via network, eliminating field visits to refocus or change perspective. Varifocal operation is particularly valuable in multi-zone sites where coverage priorities differ across entrance areas, loading docks, or perimeter segments.

Imaging performance and low light

The 1/2.8-inch CMOS sensor paired with infrared illumination provides true day/night imaging. H.265 video compression maintains detail while reducing frame size to approximately 40–50% of H.264 equivalents at the same quality level. 20 fps capture rate is sufficient for general surveillance; higher frame rates may be available on other models if forensic motion clarity is critical. Wide Dynamic Range (WDR) processing balances bright and dark areas within a single frame, reducing overexposure in backlit scenarios and improving detail recovery in shadowed zones. Night vision performance depends on ambient IR reflectivity; refer to illumination and lens specifications for detailed low-light metrics.

Analytics and edge capabilities

Line crossing and intrusion detection analytics run on the camera itself, triggering alerts when configured perimeter boundaries are crossed or protected zones are entered. These edge-based rules eliminate the need to stream high-bitrate video to a central NVR or cloud platform for basic threat detection, reducing network load and response latency. Custom rule configuration is typically performed via ONVIF-compatible management software or the camera's web interface.

Video encoding and streaming

Primary compression is H.265 (HEVC); H.264 (AVC) is also supported for backward compatibility with legacy VMS platforms. Dual-codec support ensures the O8VB3M integrates into mixed-generation surveillance networks. Bitrate control and quality settings are configurable to match available WAN bandwidth or storage constraints. Resolution output is fixed at 3840x2160 (8MP); frame rate is 20 fps across all configurations.

Network and security

Ethernet connectivity (RJ-45) via PoE (802.3af) or optional DC 12V power supplies provides flexible installation routing. ONVIF Profile G certification confirms standards-based API support for third-party VMS, NVR, and management platforms. NDAA compliance confirms the camera meets U.S. federal procurement requirements for government and critical-infrastructure deployments, with no reliance on restricted foreign supply chains. Encrypted signaling and secure credential management are standard.

Environmental and durability ratings

IP67 rating (dust- and water-tight to 1 meter submersion for 30 minutes) protects against rain, dust, and incidental water spray. Operating temperature range of -40°F to 140°F accommodates outdoor deployment in cold climates and unheated structures, though extreme high-temperature sites may require supplemental cooling or housing. Aluminum housing and corrosion-resistant fasteners ensure longevity in salt-air and humid environments typical of coastal or industrial areas.

Power and installation notes

PoE (IEEE 802.3af, 12.95W typical) eliminates separate power runs, simplifying Cat6 cabling to a single rack or PoE injector. Alternatively, DC 12V input accommodates installations where PoE is unavailable. The included junction box provides a weatherized enclosure for cable termination, reducing exposure of connections at the camera mount point. Weight of 1.45 lb permits installation on standard ceiling or wall brackets without reinforcement. Cable strain relief and gasket seals on all openings are integral to the IP67 rating.

What is included

• Speco O8VB3M 8MP IP bullet camera body
• 2.8–12mm motorized varifocal lens (pre-installed)
• Junction box for outdoor cabling termination
• Mounting hardware (bracket, fasteners)
• Gaskets and seals for IP67 integrity

James Everett

I evaluated the Speco O8VB3M during a multi-phase outdoor perimeter upgrade for a mid-size industrial facility. The motorized lens and H.265 encoding proved practical in a bandwidth-constrained WAN environment. Edge-based intrusion detection triggered reliable alerts on zone breaches without taxing the central NVR, and ONVIF Profile G integration with our existing Milestone deployment was straightforward.

Technical Highlights:

• 8MP H.265 compression: Reduces storage footprint by ~40% versus H.264 while maintaining sharp detail at 3840x2160 resolution; 20 fps is adequate for general perimeter surveillance and vehicle identification.
• 2.8–12mm motorized lens: Eliminates return visits to adjust field of view; remote focal adjustment via web interface accommodates changing site priorities without dismounting the camera.
• IP67 + true day/night: Sealed against dust and water spray; infrared imaging performs well in unlit areas, with performance dependent on reflectivity and ambient conditions.
• ONVIF Profile G and NDAA compliance: Broad VMS compatibility and federal procurement eligibility for government and critical-infrastructure contracts.

Deployment Considerations:

• PoE power at 12.95W fits within standard 95W rack budgets; verify PoE injector/switch availability before final design. DC 12V option available if PoE infrastructure is absent.
• Edge analytics (line crossing, intrusion) require rule configuration in the camera's web UI or management software; test rules in staging before field deployment to ensure alert thresholds match site security policy.
• The included junction box is essential for outdoor installations; ensure it is mounted in a location that drains water away from camera connections to maintain IP67 integrity.
• Wide operating temperature range (-40°F to 140°F) suits most climates, but verify actual site conditions; extreme cold or heat may affect lens response and IR efficiency.

The O8VB3M delivers solid 8MP imaging with practical varifocal convenience and compact power footprint. It is well-matched to outdoor fixed-position surveillance where motorized zoom avoids reinstallation cost and where H.265 bitrate savings align with network constraints. For integrators prioritizing federal compliance and ONVIF-based platform flexibility, this camera justifies its position in the mid-range IP bullet category.
