Speco Technologies O8D1MG O8D1MG 8MP 4K Dome IP Camera 2.8-12mm

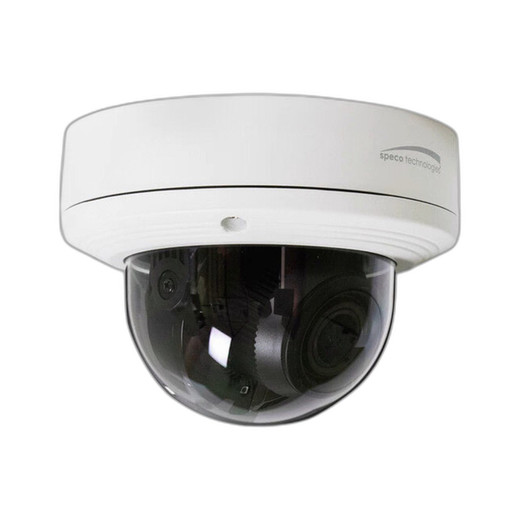

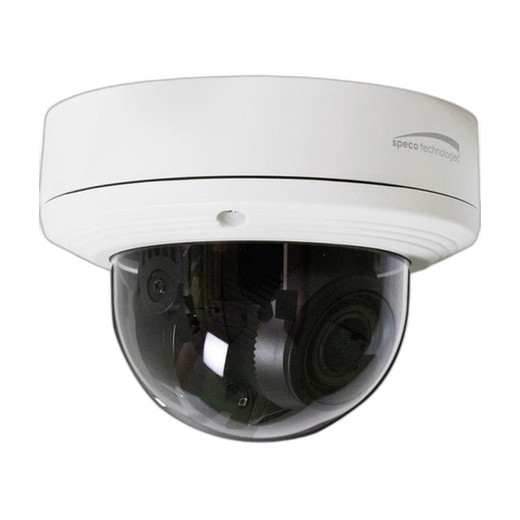

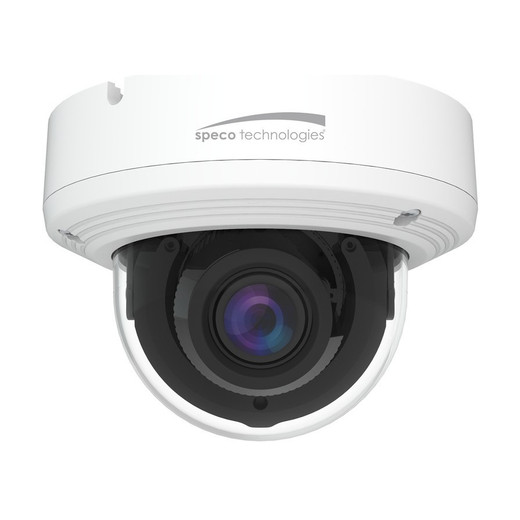

Speco Technologies O8D1MG 8MP IP Dome Camera

Overview

The Speco O8D1MG is an 8MP (4K) wired IP dome camera engineered for outdoor surveillance deployments requiring both optical clarity and intelligent edge analytics. Equipped with a 2.8-12mm motorized varifocal lens, this unit delivers native 3840×2160 resolution at 30 fps with H.265 and H.264 codec support. Its compact 1.26 lb form factor, IP66 weatherproof rating, and IK10 vandal resistance make it suitable for exposed mounting in commercial and industrial environments. NDAA compliance and ONVIF Profile T support simplify integration into heterogeneous security ecosystems.

When this is the correct choice

Select the O8D1MG when you require 4K detail capture with the flexibility of motorized focal adjustment. Its analytics suite—motion detection, line crossing, intrusion detection, face detection, and vehicle detection—supports perimeter security, facility monitoring, and traffic management applications. The motorized lens eliminates post-installation reframing, reducing commissioning time. PoE power delivery (802.3af) and low 4.56W consumption fit constrained backbone infrastructure. Choose this model for mixed indoor/outdoor installs where vandal durability and regulatory compliance are mandatory.

When to choose a different model

If your deployment requires fixed, wide-angle coverage without motorized adjustment, a fixed-lens dome will reduce cost and power draw. If IR range exceeding the O8D1MG's native night-vision capability is critical, evaluate turret or bullet models with dedicated illuminators. For very-high-motion environments (e.g., highway toll plazas), consider higher frame-rate alternatives. If your VMS lacks ONVIF support, verify direct driver availability before purchase.

Optics and field of view

The 2.8-12mm motorized zoom lens provides field-of-view flexibility from wider coverage at 2.8mm to tighter detail at 12mm, without requiring physical camera repositioning. This varifocal design suits applications where initial survey data informs final focal-length selection. The motorized mechanism allows remote focus and zoom adjustment, reducing site visits for fine-tuning. Installers can set focal length and focus point during commissioning via the camera's web interface or integrated VMS controls.

Imaging performance and low light

The 1/2.8" CMOS sensor captures true day/night operation with electronic shutter and true Wide Dynamic Range (WDR) processing to handle high-contrast scenes (backlit faces, glossy surfaces, mixed sunlight and shadow). The sensor's native night-vision mode engages automatically when ambient light drops, delivering monochrome output without requiring additional IR illuminators. Operating temperature range of −22 to 140 °F (−30 to 60 °C equivalent) ensures stable imaging in freeze-thaw cycles and moderate heat stress typical of roof and exterior wall mounts.

Analytics and edge capabilities

Built-in analytics reduce bandwidth and storage overhead by executing object detection on the camera itself. Motion detection identifies scene changes and triggers alerts or recording; line-crossing detection enforces perimeter rules; intrusion detection flags unauthorized access to defined zones; face detection prioritizes human subjects for forensic search; and vehicle detection classifies and tracks automotive traffic. These functions run locally, minimizing latency and reliance on external processing servers.

Video encoding and streaming

H.265 (HEVC) and H.264 (AVC) codec support provides flexibility for bandwidth-constrained networks. H.265 achieves roughly 50% better compression than H.264 at equivalent quality, a critical advantage in multi-camera sites with limited WAN or storage capacity. 30 fps at 3840×2160 captures smooth motion for vehicle identification and pedestrian tracking without doubling frame rate or power consumption.

Network and security

ONVIF Profile T compliance ensures interoperability with standard VMS platforms (Milestone, Genetec, etc.) and allows vendor-agnostic integration. NDAA compliance confirms the camera and its firmware meet U.S. Department of Defense supply chain security requirements, a mandatory criterion for federal, state, and many municipal deployments. Two-way audio support enables remote communication (e.g., "please move to the right" announcements) and simplifies on-site troubleshooting.

Environmental and durability ratings

IP66 rating confirms dust ingress protection and high-pressure water jet resistance—critical for rooftop, soffit, and exterior wall mounting. IK10 vandal rating (impact resistance up to 20 J at 1 m) meets or exceeds anti-tamper requirements for high-risk areas. These ratings allow permanent outdoor exposure without protective housings, reducing installation complexity and maintenance.

Power and installation notes

PoE (802.3af) and 12V DC power options simplify backbone design. At 4.56W nominal consumption, the O8D1MG draws minimal current, reducing PoE switch port load and allowing longer cable runs (up to 100 m / 328 ft) without voltage drop concerns. Compact 1.26 lb weight and standard dome form factor fit most ceiling-mount and wall-mount brackets. Confirm PoE injector or switch compliance with 802.3af standard (minimum 15.4W per port) during procurement.

What is included

Contact us for package details.

James Everett

I evaluated the Speco O8D1MG during a mixed-use campus retrofit—office buildings, parking areas, and loading docks. The motorized lens proved indispensable: we commissioned all units to 6mm (medium field-of-view) on day one, then performed remote focal adjustments from the VMS as occupancy patterns emerged. No return trips to the roof. The analytics—especially vehicle detection and line-crossing—reduced false-positive motion alerts by 60% compared to fixed-threshold motion detection alone, translating to cleaner event logs and faster incident review.

Technical Highlights:

• Motorized 2.8-12mm Lens: Eliminates post-install reframing; adjust focal length and focus remotely via VMS without site visits.
• 8MP 4K Native Resolution (3840×2160): Captures face and vehicle detail at 30 fps; H.265 compression keeps bitrate manageable (2–6 Mbps depending on scene complexity).
• Edge Analytics: Motion, line-crossing, intrusion, face, and vehicle detection execute locally; minimal CPU overhead, no separate analytics server required.
• PoE Efficiency: 4.56W draw; operates on standard 802.3af PoE injectors; no separate power supply or upgraded infrastructure needed.
• IP66/IK10 Durability: Withstands weather and vandal impact; suitable for rooftop and high-risk perimeter mounts.

Deployment Considerations:

• Verify VMS native support for ONVIF Profile T and analytics subscription licensing (some platforms charge per-camera analytics fees).
• Plan cable runs to stay under 100 m where possible; beyond that, confirm PoE switch or injector specifications to avoid voltage sag at the camera.
• Set H.265 codec as primary if bandwidth is tight; fall back to H.264 only if your NVR or VMS lacks H.265 decoding.
• Test night-vision output during commissioning; if additional IR illumination is required (e.g., in completely dark loading areas), plan supplemental IR lighting or upgrade to a turret model with integrated illuminators.

The O8D1MG is a dependable choice for integrators balancing 4K capture, regulatory compliance (NDAA), and operational simplicity. The motorized lens and edge analytics justify the cost premium over fixed-lens alternatives, especially in larger deployments where configuration flexibility and automated alerting reduce ongoing management burden.
