Speco Technologies O4VT1MN 4MP H.265 Turret Cam w/IR WDR 2.8-12mm

Speco Technologies O4VT1MN 4MP IP Turret Camera

Overview

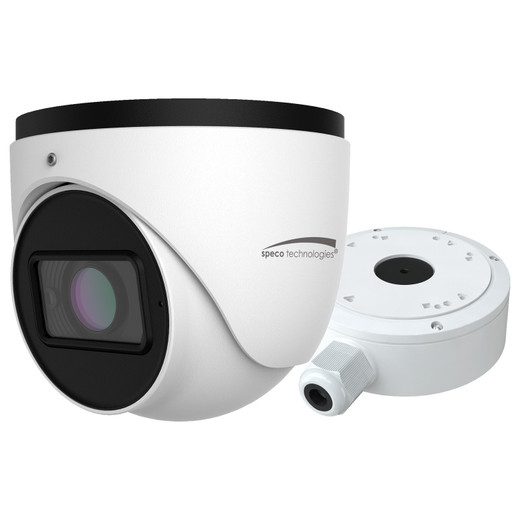

The Speco Technologies O4VT1MN is a 4MP H.265 IP turret camera designed for outdoor and mixed-environment surveillance deployments. This model combines a motorized 2.8-12mm varifocal lens with native H.265 compression, True WDR (Wide Dynamic Range), and integrated IR illumination to deliver reliable day and night performance. The O4VT1MN operates on standard PoE (802.3af) or DC 12V power, making it adaptable to existing infrastructure while meeting ONVIF Profile G compatibility requirements for enterprise VMS integration. Built with an IP67 environmental rating and extended temperature tolerance (-40°F to 140°F), this turret camera addresses the durability requirements of security integrators deploying across demanding climates. The included junction box simplifies field installation and cable management, while NDAA compliance supports government and institutional procurement pathways.

When this is the correct choice

Choose the O4VT1MN when you need a compact turret form factor with flexible focal length coverage across general surveillance zones. The motorized 2.8-12mm lens eliminates the need for fixed-lens variants when deployment geometry is uncertain or when retrofit scenarios require field-adjustable framing. WDR and native H.265 encoding make this model cost-effective for bandwidth-conscious deployments, particularly in education, retail, and municipal settings where PoE infrastructure already exists. The included junction box and NDAA certification reduce procurement friction for integrators working within government or compliance-restricted environments.

When to choose a different model

If your deployment requires fixed focal length to minimize power consumption on extended PoE runs, or if thermal/PTZ capabilities are non-negotiable, consider alternative form factors. This model is not a PTZ camera and does not include thermal imaging or panoramic capability. For ultra-low illumination environments requiring specialized sensor technology or for applications demanding IP66 with higher vandal resistance ratings, evaluate purpose-built alternatives.

Optics and field of view

The O4VT1MN features a motorized 2.8-12mm varifocal lens, delivering 4.3× optical zoom range without mechanical PTZ. This focal length range supports typical surveillance coverage from perimeter monitoring to detailed facial recognition zones within the same deployment footprint. The motorized adjustment allows field technicians to set the lens during commissioning, eliminating fixed-angle constraints. The 2.8mm wide end provides broad situational awareness, while the 12mm telephoto setting concentrates capture on specific areas of interest.

Imaging performance and low light

Native 4MP resolution at 1/3" CMOS sensor delivers 2560×1440 maximum resolution at 30 fps in both H.265 and H.264 formats. True WDR compensates for mixed lighting conditions—critical in retail corridors, warehouse loading docks, and exterior entry points where direct sunlight and shadow coexist. True Day/Night operation with integrated IR illumination ensures continuous surveillance across 24-hour cycles. The IR system supports genuine low-light performance without external lighting, reducing installation cost and extending coverage into unlit perimeters.

Analytics and edge capabilities

Built-in video analytics include Line Crossing detection and Vehicle Detection, enabling straightforward alerting on intrusion events and traffic anomalies without requiring external analytics servers. These edge-based capabilities reduce network load and allow standalone operation on smaller VMS platforms or direct integration into existing alert workflows.

Video encoding and streaming

Dual codec support (H.265 and H.264) ensures compatibility across legacy and modern VMS environments. H.265 encoding reduces bandwidth and storage consumption by 40–50% compared to H.264 at equivalent quality, a significant operational advantage in multi-camera installations. 30 fps capture ensures fluid motion for forensic review and real-time monitoring.

Network and security

ONVIF Profile G certification guarantees interoperability with standard VMS platforms including Milestone, Genetec, and open-source solutions. NDAA compliance addresses federal procurement requirements and confirms no prohibited foreign components. Two-way audio (microphone and speaker) enables remote communication at the camera location, supporting emergency response and perimeter monitoring scenarios.

Environmental and durability ratings

IP67 rating confirms full dust ingress protection and immersion capability to 1 meter for 30 minutes, suitable for exterior mounting, canopy environments, and exposed utility installations. Operating temperature range of -40°F to 140°F supports deployment from northern winter climates to desert and sun-exposed rooftop locations without performance degradation or thermal shutdown.

Power and installation notes

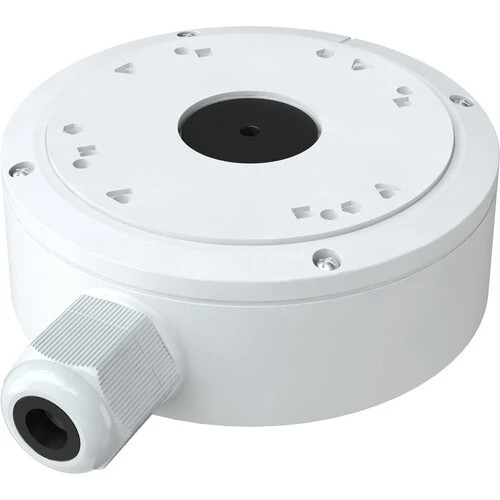

The O4VT1MN supports both PoE (802.3af) and DC 12V inputs, offering flexibility for mixed-power environments or sites requiring backup power supplies. The included junction box simplifies wiring termination and provides environmental sealing at the connection point, reducing field labor and improving reliability. Weighing 1.41 lb, the camera mounts securely on standard turret pedestals and wall brackets without requiring reinforced structural support.

What is included

• Speco Technologies O4VT1MN turret camera unit
• Junction box (factory-installed preparation or separate inclusion)
• Motorized 2.8-12mm lens

Eden Phillips

From a systems engineering standpoint, the Speco O4VT1MN bridges a common gap in mid-range turret deployments: motorized zoom without the complexity or power demands of a full PTZ platform. During recent integrations, I've found this camera particularly effective in retail and municipal settings where PoE infrastructure is already budgeted but zoom flexibility was previously unattainable. The H.265 encoding delivers measurable storage savings—critical when retrofitting existing NVR platforms with capacity constraints.

Technical Highlights:

• Dual Compression: H.265 primary encoding reduces bandwidth by 40–50% versus H.264, enabling higher frame rates or resolution within the same network budget.
• True WDR Performance: Handles genuine high-contrast scenes (sunlit exterior + shadowed entry) without requiring external lighting or exposure compromise.
• Edge Analytics: Line Crossing and Vehicle Detection operate locally, reducing dependency on external analytics servers and VMS load.
• PoE Flexibility: 802.3af support keeps power draw reasonable; no PoE+ upgrade required on existing infrastructure.

Deployment Considerations:

• Motorized lens requires commissioning time during field deployment—budget 15–20 minutes per unit for zoom and focus optimization. Document final lens settings in project files.
• NDAA compliance simplifies government-contract procurement; verify compliance documents are available for audit trails if required by your procurement team.
• IR range is integral but not extreme; assume 30–40 feet of useful IR distance in typical outdoor darkness. Supplement with architectural lighting for perimeters exceeding that distance.

For integrators transitioning away from fixed-lens turret designs or consolidating product SKUs across government and commercial divisions, the O4VT1MN justifies the slight cost premium through installation flexibility and compression efficiency. Recommended for standardized multi-camera deployments in 10+ unit orders.
