Speco O4VD2G 4MP IP Dome Camera IR WDR 2.8mm

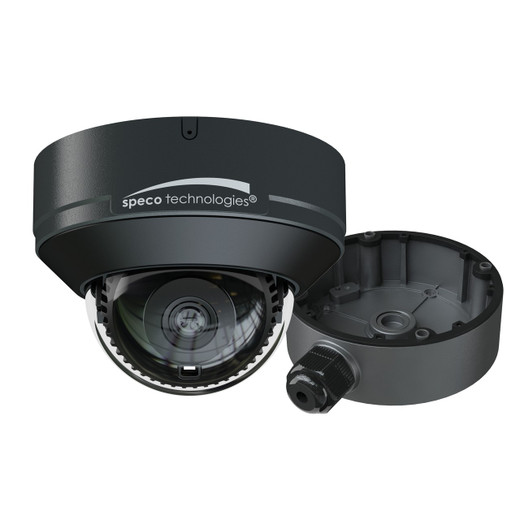

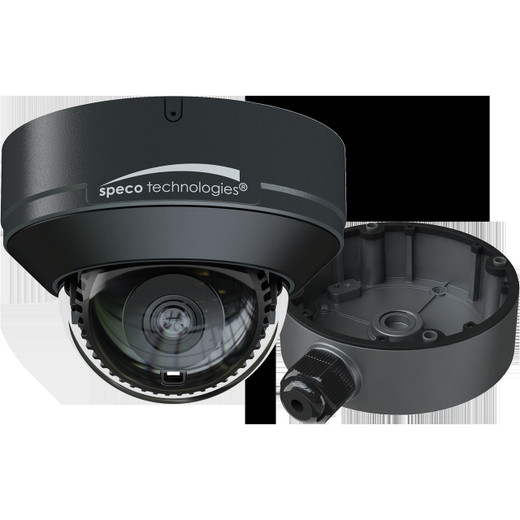

Speco Technologies O4VD2G 4MP IP Dome Camera

Overview

The Speco Technologies O4VD2G is a 4MP fixed dome camera engineered for IP-based surveillance deployments requiring reliable low-light performance and wide dynamic range imaging. Built to NDAA compliance standards, the O4VD2G combines a fixed 2.8mm lens with integrated infrared illumination and Wide Dynamic Range (WDR) processing, making it suitable for both indoor and outdoor installation scenarios where consistent image quality across varying lighting conditions is essential.

When this is the correct choice

Deploy the O4VD2G in indoor/outdoor mixed-lighting environments where you need fixed-angle coverage with solid low-light capability. This camera is ideal for integrators working with government, institutional, or defense-adjacent clients who require NDAA-listed equipment. The 2.8mm lens provides a wide field of view appropriate for lobby areas, entrance vestibules, parking structures, and facility perimeters. The fixed lens eliminates motor-driven complexity and reduces installation labor for straightforward sight-line deployments.

When to choose a different model

If your deployment requires remote pan-tilt-zoom control, select a PTZ model. If you need varifocal lens adjustment for precise focal length matching, specify a varifocal camera. For ultra-wide coverage (panoramic or multi-sensor arrays), consider alternatives outside the fixed-lens category. If you cannot accommodate NDAA compliance requirements, review non-restricted equipment lines.

Optics and field of view

The O4VD2G includes a fixed 2.8mm lens engineered to deliver a wide field of view suitable for medium-range indoor and outdoor monitoring. The fixed lens design eliminates focus drift and motor-related maintenance while simplifying commissioning. No lens adjustment is required after initial positioning.

Imaging performance and low light

Operating at 4MP resolution, the O4VD2G captures fine detail across standard surveillance scenes. WDR (Wide Dynamic Range) processing expands tonal latitude, allowing the camera to maintain detail simultaneously in bright and shadow zones—critical for perimeter fencing, entrance portals, and mixed interior/exterior transitions. Integrated infrared (IR) illumination enables viewing in darkness and low-ambient conditions, extending operational capability to 24/7 monitoring cycles without supplementary lighting infrastructure.

Analytics and edge capabilities

The O4VD2G delivers video data suitable for integration with third-party VMS analytics. ONVIF compliance ensures compatibility with standard video management platforms and analytics ecosystems, allowing centralized event detection and alerting across heterogeneous deployments.

Video encoding and streaming

The camera supports H.264 and H.265 video compression, enabling operators to balance bandwidth and storage efficiency. H.265 encoding reduces file sizes by approximately 50% compared to H.264 at equivalent quality, lowering NAS and archival costs in multi-camera installations.

Network and security

ONVIF standard compliance ensures interoperability with ONVIF Profile S-compliant systems. The camera integrates securely into IP networks via standard Ethernet. NDAA certification confirms the product meets Federal procurement restrictions and supply-chain compliance requirements for installations subject to government or institutional purchasing guidelines.

Environmental and durability ratings

The dome form factor and housing design support both indoor and outdoor deployment. The IP rating and environmental sealing protect the optics and electronics from dust, moisture, and weather exposure typical of exterior installations. Confirm specific IP rating and operating temperature range with technical specifications documentation.

Power and installation notes

The O4VD2G is PoE-powered, eliminating the need for separate power supplies and reducing installation complexity. A single Ethernet cable delivers both video and power to the camera, streamlining roughing-in during new construction or retrofit projects. Ceiling and wall mount hardware are available; verify mounting plate compatibility with your structural interface before installation.

What is included

Contact us for package details.

Marty Allison

I've worked through integrations of the Speco O4VD2G in mixed government and institutional environments. The NDAA compliance certification alone removes a significant procurement bottleneck for programs subject to federal buying restrictions. The combination of fixed 2.8mm optics with dual-mode IR and WDR creates a straightforward, reliable foundation for perimeter and entrance monitoring without overcomplicating the bill of materials.

Technical Highlights:

• 4MP resolution with 2.8mm fixed lens: Delivers adequate detail capture for standard indoor/outdoor perimeter applications without the motor-related maintenance burden of varifocal systems.
• WDR and IR imaging: Maintains visibility across bright/shadow transitions and extends 24/7 capability into darkness without supplementary lighting infrastructure.
• NDAA listed: Eliminates compliance uncertainty for institutional, government, and defense-adjacent client requirements.

Deployment Considerations:

• Fixed 2.8mm lens commits the camera to a pre-planned field of view; verify sight-line geometry during design phase to avoid costly repositioning after installation.
• PoE power simplifies rough-in and reduces electrical labor, but confirm PoE injector capacity if daisy-chaining multiple cameras on a single switch port.

The O4VD2G is a solid choice when NDAA compliance is mandatory and your deployment geometry accommodates a fixed-lens camera. The WDR and IR pairing handles real-world lighting variability effectively, and the ONVIF interface ensures long-term VMS flexibility.
