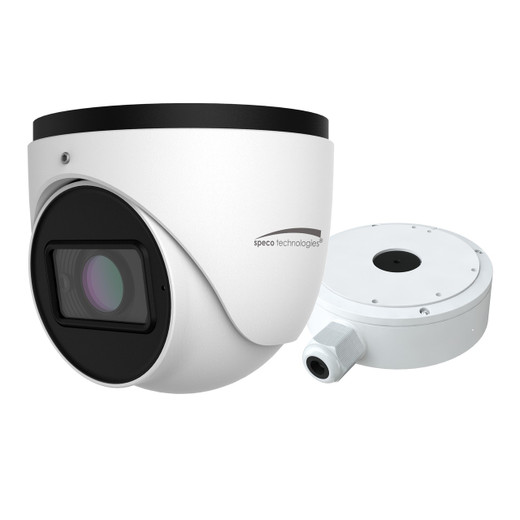

Speco O4T7MN 4MP H.265 IR Turret Camera 2.8-12mm

Speco Technologies O4T7MN 4MP H.265 IR Turret Camera

Overview

The Speco O4T7MN is a fixed turret-style IP camera designed for outdoor surveillance installations requiring true day/night imaging, reliable low-light performance, and compact mounting flexibility. This 4MP camera delivers 2592×1520 resolution at 30 fps using efficient H.265 video compression, reducing bandwidth and storage demands across your network. The integrated 2.8–12mm motorized varifocal lens provides flexible framing for diverse deployment scenarios, while the included junction box simplifies field installation and wiring management. Built to IP67 specifications, the O4T7MN operates reliably in wet, dusty, and challenging outdoor environments across a wide temperature range from −40°F to 140°F.

When this is the correct choice

Select the O4T7MN when your project requires a compact outdoor turret with motorized zoom capability and no additional housing or dome required. The camera's 165 ft infrared range, true day/night sensor switching, and H.265 encoding make it well-suited for mid-range facility perimeter monitoring, parking areas, loading docks, and mixed indoor/outdoor installations where PoE power delivery is available. Its ONVIF Profile T compliance ensures broad VMS and third-party recorder compatibility. The included junction box eliminates the need for separate terminal enclosures, streamlining rough-in and reducing parts inventory.

When to choose a different model

If your installation requires extreme weather hardening (IK vandal rating), consider a purpose-built vandal dome or turret with higher impact ratings. For applications needing pan-tilt-zoom (PTZ) control, explore motorized PTZ camera lines. If your network infrastructure cannot deliver PoE power, confirm 12V DC availability or select an alternative power architecture.

Optics and field of view

The motorized varifocal 2.8–12mm lens allows integrators to adjust horizontal field of view in the field, reducing the need for multiple fixed-lens SKUs. Wider framing at 2.8mm supports entrance monitoring and large perimeter areas, while the 12mm setting provides detailed facial recognition and license plate capture at distance. Smooth manual or remote focus adjustment accommodates varying installation heights and scene depth.

Imaging performance and low light

The 1/3" CMOS sensor with true day/night capability switches between color mode during daylight and monochrome during low-light conditions, maximizing usable image detail when illumination drops. The integrated 165 ft infrared (IR) illuminator provides active nighttime surveillance without external lighting infrastructure. True wide dynamic range (WDR) processing balances bright and dark areas within a single frame, ideal for scenes with mixed sunlight and shadow or backlit subjects. Frame rate remains constant at 30 fps across all resolution and compression modes.

Analytics and edge capabilities

The O4T7MN includes face detection analytics, enabling basic facial region identification and alarm triggers at the camera edge. This reduces reliance on backend processing and allows local recording of high-confidence events without constant full-resolution archival.

Video encoding and streaming

Support for H.265 (HEVC), H.264 (AVC), and MJPEG compression formats provides integration flexibility across VMS platforms and legacy systems. H.265 encoding delivers approximately 50% better compression than H.264 at equivalent quality, lowering bandwidth consumption and storage footprint—a significant operational advantage for multi-camera deployments or bandwidth-constrained networks.

Network and security

The O4T7MN complies with ONVIF Profile T, ensuring standardized API compatibility with leading video management systems and recording platforms. Integrated microphone and speaker enable two-way audio communication and alarm notification from the camera location. Wired network connectivity eliminates wireless interference and unauthorized access vectors common in WiFi deployments. NDAA compliance confirms the product meets U.S. federal procurement standards for critical infrastructure and defense-adjacent applications.

Environmental and durability ratings

IP67 rating guarantees protection against dust ingress and immersion up to 1 meter for 30 minutes, meeting outdoor installation requirements across coastal, industrial, and high-moisture environments. Operating temperature range of −40°F to 140°F ensures functionality in extreme climates without performance degradation or sensor drift. The compact turret housing and corrosion-resistant materials support long-term reliability in salt spray, chemical exposure, and temperature cycling scenarios.

Power and installation notes

The O4T7MN accepts power via high-power PoE (802.3af) or standard 12V DC input, offering installation flexibility across single-cable (PoE) and dual-wire (DC) architectures. At 1.47 lbs, the camera is lightweight for wall, ceiling, or corner-mount applications. The included junction box provides integrated terminal blocks and strain relief, eliminating field-fabricated connection enclosures and reducing installation labor. Motorized lens adjustment can be controlled via camera web interface, VMS application, or local potentiometer, accommodating diverse workflow preferences.

What is included

• Speco O4T7MN turret camera body
• 2.8–12mm motorized varifocal lens
• Integrated junction box with terminal blocks
• Mounting hardware (hardware kit contents available upon request)

Marty Allison

I evaluated the Speco O4T7MN during a mixed indoor/outdoor facility upgrade. The motorized lens and included junction box streamlined both rough-in and final commissioning. At 4MP with H.265 encoding, the O4T7MN delivers solid resolution and compression efficiency without requiring oversized storage or dedicated bandwidth appliances typical of higher-megapixel cameras.

Technical Highlights:

• 165 ft IR range: Provides active nighttime surveillance in completely dark perimeter environments without external lighting, reducing infrastructure costs and power draw at remote locations.
• H.265 compression: Cuts bitrate by ~50% versus H.264, directly lowering NVR/cloud storage costs across multi-camera deployments.
• Motorized 2.8–12mm lens: Eliminates field inventory of multiple fixed focal lengths; adjust framing in the camera for entrance portals, wide perimeter, and detailed facial recognition in a single SKU.
• True day/night with WDR: Automatic sensor mode switching and frame balancing ensure usable detail in sunrise/sunset scenes and high-contrast mixed lighting without image ghosting or lag.

Deployment Considerations:

• IP67 durability and −40°F to 140°F temperature tolerance support outdoor installations in coastal, industrial, and northern climates; verify final mount location supports turret orientation without obstructions.
• NDAA compliance simplifies procurement for government and critical infrastructure contracts; confirm end-customer compliance requirements early in the design phase.
• Junction box inclusion reduces BOM complexity and installation time; pre-terminate during rough-in for faster final camera connection.

The O4T7MN is a reliable workhorse for multi-building facilities, retail perimeter coverage, and small municipal deployments. Solid encoder performance, flexible optics, and field-friendly inclusion of terminal blocks make it a practical choice for integrators balancing cost, performance, and installation efficiency.
