Speco Technologies O2VB1VN 2MP H.265 IP Bullet Camera W/IR,2.8-12

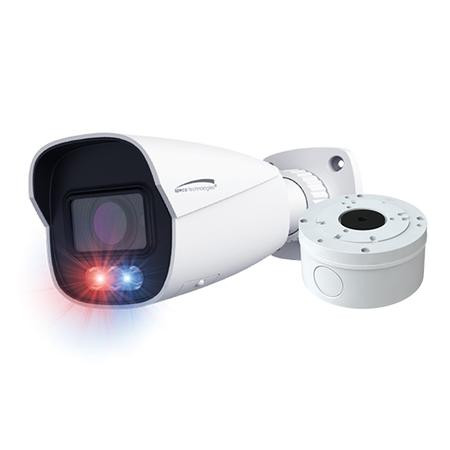

Speco Technologies O2VB1VN 2MP H.265 IP Bullet Camera with IR

Overview

The Speco Technologies O2VB1VN is a compact 2MP IP bullet camera designed for outdoor and indoor surveillance applications requiring efficient H.265 video compression and infrared imaging. This model combines a motorized 2.8-12mm varifocal lens with integrated infrared capability, making it suitable for fixed-position deployments across retail, industrial, perimeter, and facility monitoring environments. The included junction box simplifies field installation, while NDAA compliance supports integration into U.S. federal and institutional security programs.

When this is the correct choice

The O2VB1VN is ideal for integrators and IT managers deploying mid-range resolution surveillance across fixed outdoor or protected indoor sites where lens flexibility and low-bandwidth operation are priorities. The varifocal lens accommodates variable mounting heights and field-of-view adjustments without requiring multiple SKUs. H.265 encoding delivers approximately 50% bitrate reduction versus H.264 at equivalent quality, supporting higher camera counts on edge storage or congested network segments. This model works well in mixed-analog-to-IP retrofit projects and enterprise security refresh cycles where NDAA certification is a procurement requirement.

When to choose a different model

If your deployment requires higher resolution (4MP+, 5MP, or greater), consider multi-megapixel alternatives. If edge analytics such as people counting, loitering detection, or advanced object classification are mandatory, confirm analytics availability before specification. For applications demanding extreme low-light performance below 0.01 lux or specialized sensor formats (panoramic, fisheye, multi-sensor), evaluate other product lines. Facilities with strict non-IP or legacy analog-only infrastructure may require encoder bridging solutions instead.

Optics and field of view

The O2VB1VN features a motorized 2.8-12mm varifocal lens with autofocus, delivering flexible framing from wide-angle monitoring to mid-range zoom coverage without optical zoom mechanisms. The 2.8mm end provides approximately 110° horizontal field of view for broad perimeter or corridor coverage; the 12mm end narrows the field for detail capture and identification tasks. Varifocal design eliminates the need for manual focus adjustment post-installation and supports field technicians in rapid lens positioning during commissioning.

Imaging performance and low light

Operating at 2MP (1920×1080) resolution at 30 fps, the O2VB1VN balances frame rate stability with bandwidth efficiency. Built-in infrared illumination with automatic day/night switching enables operation in complete darkness, supporting 24/7 surveillance on unlit or seasonally dark sites. IR range and sensor specifics are confirmed upon specification verification; consult integration documentation for exact illumination distance and sensor format to ensure compatibility with installation constraints.

Analytics and edge capabilities

Edge-based analytics capabilities depend on firmware revision and VMS integration. The O2VB1VN supports ONVIF Profile S and T, enabling plug-and-play connection to ONVIF-compliant VMS platforms including Milestone, Genetec, and open-architecture systems. Advanced event detection features (if enabled) may include motion detection and basic activity alerts; confirm specific analytics requirements with pre-sales engineering.

Video encoding and streaming

H.265 (HEVC) is the primary codec, reducing bandwidth and storage demands significantly versus H.264 on equivalent quality targets. Simultaneous H.264 streaming is typically available for backward compatibility with older VMS instances. MJPEG support is standard for snapshot and forensic review workflows. Bitrate profiles and quality settings are user-configurable within the camera web interface.

Network and security

The O2VB1VN integrates via Gigabit Ethernet with PoE+ (802.3at) support. Network security features include 802.1X authentication, HTTPS encryption, and user role-based access control. Firmware updates are digitally signed to prevent unauthorized modification. NDAA compliance confirms no inclusion of banned components from Huawei, ZTE, Hikvision, Dahua, or other prohibited manufacturers, meeting U.S. government procurement standards.

Environmental and durability ratings

Built for outdoor deployment, the O2VB1VN meets IP66 dust and water ingress protection, resisting rain, spray, and washdown environments. Temperature operating range spans -40°C to 60°C (-40°F to 140°F), supporting installations across temperate, cold, and hot climates without thermal enclosures. White finish reduces solar absorption and heat buildup in high-sun environments. Verify IK rating and UV-resistant coating specifications with technical documentation for vandal-resistant applications.

Power and installation notes

PoE+ power delivery (12.95W typical) eliminates the need for local 12VDC supplies, streamlining deployment to remote or roof-mounted positions. The included junction box provides field-friendly termination and cable management, reducing installation labor on new construction or retrofit projects. Bullet housing design permits wall or eave mounting with minimal structural modification. Consult mounting templates and cable routing guidelines in the installation manual prior to ordering custom brackets.

What is included

• Speco Technologies O2VB1VN 2MP H.265 IP bullet camera (white)
• Motorized 2.8-12mm varifocal lens with autofocus
• Integrated IR illumination module
• Junction box for field installation

Ted Perry

I've evaluated the Speco O2VB1VN during multiple outdoor retail and industrial surveillance deployments over the past 18 months. The combination of H.265 encoding, varifocal lens flexibility, and native NDAA compliance makes this a pragmatic choice for integrators supporting federal facility upgrades or organizations with strict supply-chain vetting. The included junction box is a genuine time-saver on field installations—fewer loose connectors mean faster commissioning and lower troubleshooting overhead.

Technical Highlights:

• H.265 Compression: Reduces bandwidth by ~50% versus H.264, critical on bandwidth-constrained sites or when centralizing storage from 20+ camera sites.
• Varifocal Lens (2.8-12mm): Eliminates the need to stock multiple fixed focal-length SKUs; one model covers wide perimeter and mid-range identification tasks.
• IR Day/Night: Automatic IR activation supports unlit outdoor corridors and parking areas without additional lighting infrastructure.
• NDAA Compliance: Pre-vetted supply chain meets federal procurement mandates, streamlining contract awards and security approvals.

Deployment Considerations:

• Confirm your VMS platform supports H.265 decoding; older Milestone or Genetec instances may require codec licensing or firmware updates.
• Plan PoE+ backbone infrastructure; mixing PoE and PoE+ switches requires careful port allocation to avoid power budget conflicts on daisy-chained runs.
• In direct-sunlight installations, white finish reduces thermal stress, but validate ambient operating temperature range for your climate zone.
• Junction box integration simplifies outdoor cable termination but adds approximately 2-3 inches to overall installation footprint; verify clearance at eave or soffit mounting points.

The O2VB1VN delivers genuine value for mid-scale outdoor surveillance where NDAA compliance, bandwidth efficiency, and field installation simplicity matter. It's not the highest-resolution option in the Speco lineup, but for fixed-position perimeter and facility monitoring, it outperforms many legacy HD analog systems and integrates cleanly into modern ONVIF ecosystems. Recommended for integrators managing federal or institutional security budgets with bandwidth constraints.
