Speco ACKIT2DRB 2 Door Access Control Kit Bundle

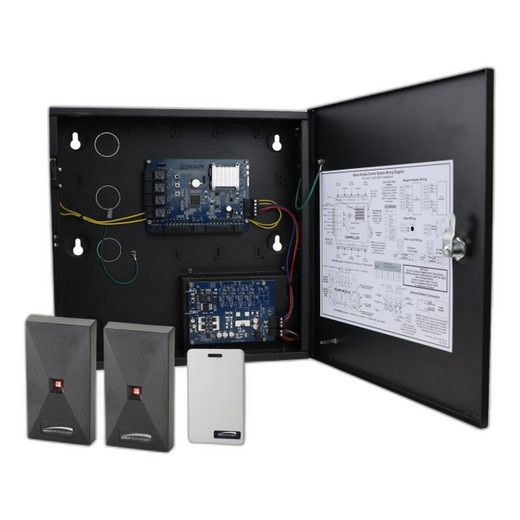

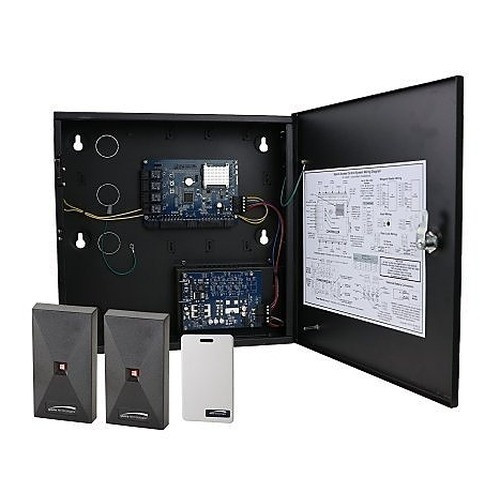

The Speco ACKIT2DRB is a foundational two-door access control system built on the A2E4 controller, delivering embedded Linux-based authentication and lock management for small to mid-scale deployments. The ACKIT2DRB bundle includes the core controller with integrated power supply, two Wiegand readers (one per door), and relay outputs for electric lock and auxiliary control. This system processes over 45 transactions per second and supports expansion to four doors through the optional A2M expansion board, making it suitable for facilities requiring scalable access infrastructure.
Key Features
- Quad Core Cortex processor running at 1.5 GHz with 1GB DDR3 memory and 8GB eMMC storage
- Embedded Linux operating system with 5-year warranty coverage
- Two integrated door controllers with four total Wiegand readers (in/out per door)
- Dual Form C relays for lock control and auxiliary outputs rated at 24V @ 2.0A each
- Three input types per door: Request to Exit (REX), Door Position Status (DPS), and general-purpose auxiliary inputs
- Tamper and power fault detection via digital inputs
- UL listed (294 Series 7) and NDAA compliant
- Expandable to four doors with optional A2M expansion board
Applications
- Small office and commercial building access control for dual entry points
- Warehouse or manufacturing facility personnel authentication at loading docks or secure areas
- Educational institutions managing controlled access between departments or secure storage
- Multi-tenant facilities requiring independent reader assignment per tenant space
Specifications
- Model: ACKIT2DRB (based on A2E4 controller)
- Processor: Quad Core Cortex, 1.5 GHz
- Memory: 1GB DDR3 & 8GB eMMC
- Operating System: Embedded Linux
- Transaction Rate: 45+ per second
- System Power: 115VAC @ 1.5A
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- Enclosure Dimensions: 14.25 x 14.25 x 3.75 inches (362 x 362 x 95mm)
- Readers: 4 total Wiegand (one in/out per door), 300mA @ 12V max per reader, 1000mA @ 12V system maximum
- Relay Outputs: 2 Form C lock relays + 2 Form C auxiliary relays, 24V @ 2.0A each
- Battery Backup: Supports 12V, 7AH sealed lead acid (not included); 400mA @ 12V standby requirement
- Warranty: 5 years
- Compliance: UL 294 Series 7, NDAA Section 889 Part B
