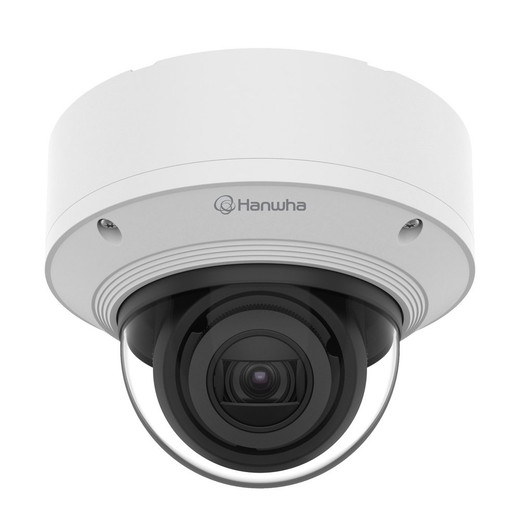

Hanwha XND-6081V RB Vandal Dome Camera

Hanwha XND-6081V RB Overview

The Hanwha XND-6081V RB is a 2MP full HD (1080p) indoor vandal-resistant dome camera designed for deployments requiring robust construction and flexible optical performance. Built on the Wisenet X series Plus platform with Wisenet 5 engine, this modular camera combines a motorized 4.3x varifocal lens (2.8–12mm, 119.5°–27.9° FOV) with enterprise-grade video encoding, wide dynamic range processing, and integrated video analytics. The modular structure enables fast installation, configuration, and post-deployment service upgrades without removing the camera from its mount.

Hanwha XND-6081V RB Key Features

• Full HD 1080p @ 60 fps — captures smooth motion video at 2MP resolution with configurable frame rates to balance bandwidth and responsiveness.
• Motorized 4.3x Varifocal Lens (2.8–12mm) — delivers 119.5° wide to 27.9° narrow field of view, enabling flexible framing without reinstalling the camera body.
• Triple Codec Support with WiseStream II — H.265, H.264, and MJPEG compression with WiseStream II intelligent bitrate optimization to reduce storage and bandwidth consumption while maintaining image quality.
• 150dB WDR (Wide Dynamic Range) — processes scenes with extreme brightness variation, recovering detail in both bright and shadow areas simultaneously.
• Advanced Video Analytics — integrated sound classification, shock detection, and business analytics enable intelligent event-driven recordings and forensic review.
• Day/Night True D/N with Hallway View — automatic IR cutoff filter and hallway view mode optimize performance in both low-light and high-brightness scenarios; defog detection compensates for lens fogging.
• Gyro-based Digital Image Stabilization (DIS) — compensates for minor vibration and camera movement using built-in gyroscope for steadier video in challenging mounting conditions.
• Dual SD Card Slots — local backup storage via microSD cards (not included) for redundant edge recording and extended retention.
• Built-in Microphone and Audio Playback — captures ambient sound and enables remote audio announcement, supporting two-way voice communication scenarios.
• IP52 and IK10 Rated — IP52 protects against dust and water splash; IK10 vandal rating withstands significant impact (up to 20 joules), suitable for public or semi-public indoor spaces.
• PoE and 12VDC Power — flexible power delivery via standard PoE (802.3af) or 12VDC, simplifying integration with existing infrastructure.
• Modular Design with Included Skins — white color standard with ivory skin included; optional black skin cover allows quick aesthetic customization without replacing the camera core.
• USB Port for Configuration — streamlines initial setup and firmware updates directly from the dome without requiring network access or external encoders.

Hanwha XND-6081V RB Integration & Compatibility

The XND-6081V RB is ONVIF-compliant and integrates with standard IP video management systems supporting ONVIF Profile S. The modular architecture follows Hanwha's standardized interface, enabling rapid deployment by security integrators familiar with the Wisenet X ecosystem. The built-in video analytics (sound classification, shock detection, business analytics) operate locally on the device, reducing reliance on external analytics servers. USB configuration port enables offline setup before network deployment. Consult the manufacturer's integration guide for VMS-specific codec support and ONVIF profile compatibility with your recording platform.

Hanwha XND-6081V RB Package Contents

• XND-6081V RB Camera Module (white color)
• Ivory Skin Cover
