Hanwha XNP-C8303RW RB Overview
The Hanwha XNP-C8303RW RB is a professional-grade network PTZ camera engineered for demanding outdoor surveillance deployments requiring extended range, intelligent video analytics, and extreme environmental durability. Delivering 6MP resolution at 30 fps with a motorized 5mm–150mm (30x) zoom lens, this camera combines optical reach with AI-powered object detection and behavior analytics to enable proactive security monitoring across sprawling perimeters, parking facilities, and critical infrastructure sites. Built to IP66 and IK10 standards with NEMA4X and NEMA-TS 2 ratings, the unit operates reliably in temperatures ranging from −40°C to +55°C and is equipped with integrated lens heater, motorized wiper, and 200m adaptive Wise IR for day and night surveillance without blind spots.
Hanwha XNP-C8303RW RB Key Features
- 6MP @ 30 fps Resolution: Captures sharp, high-detail video at 3328×1872 across all focal ranges, enabling positive identification and forensic review in both live and recorded content.
- 30x Motorized Zoom Lens (5mm–150mm): Continuous zoom range enables operators to acquire distant targets, frame-fill subjects from near and far distances, and reduce overall camera count in large-scale deployments.
- 200m Adaptive Wise IR & Day/Night ICR: Dual-spectrum imaging with automatic infrared cut filter (ICR) switching delivers continuous surveillance across lighting transitions; 200m IR reach eliminates dark zones in outdoor environments.
- Extreme 120dB WDR (Wide Dynamic Range): Simultaneous capture of detail in backlit, silhouetted, and brightly illuminated scenes; critical for scenes with mixed sunlight and shadow or glass reflections.
- AI-Powered Object Detection & Tracking: Built-in analytics engine identifies Person, Face, Vehicle, and License Plate in real-time; auto-tracking follows moving subjects with target lock capability for hands-free monitoring.
- Intelligent Video Analytics (IVA): Virtual line crossing, area intrusion, loitering detection, direction analysis, and enter/exit event generation enable rule-based alarms without external VMS overhead.
- Defocus, Motion, Tampering, Fog & Audio Detection: Supplementary analytics flags focus drift, scene obstruction, physical interference, and sound events; optional sound classification via compatible I/O box.
- H.265, H.264, and MJPEG Codec Support: Flexible compression from efficient H.265 for bandwidth-constrained links to MJPEG for motion-rich scenes and low-latency playback.
- IP66 / IK10 Rated Enclosure with Motorized Wiper & Lens Heater: Sealed against dust and rain; mechanical wiper removes water and debris; lens heater prevents frost and condensation in sub-zero environments. NEMA4X and NEMA-TS 2 ratings ensure long service life in harsh industrial and coastal climates.
- High-Power PoE with Integrated HPoE Injector: Powered entirely over single Ethernet cable; bundled HPoE injector simplifies field deployment without additional DC power runs or external switches.
- BLC, HLC, and SSDR Processing: Backlight compensation, highlight compensation, and Super Sensor Dynamic Range algorithms preserve image detail across extreme exposure scenarios.
- FIPS 140-2 Certification & Enterprise Security: Hardware-enforced cryptographic compliance suitable for federal and critical infrastructure deployments; signed firmware and secure authentication protocols protect against unauthorized access and tampering.
Hanwha XNP-C8303RW RB Integration & Compatibility

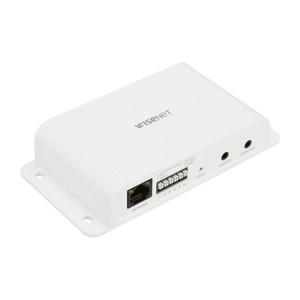

The XNP-C8303RW RB integrates with SUNAPI (HTTP API) for custom automation and third-party VMS integration via ONVIF Profile S/T/G. IPv4 and IPv6 dual-stack networking support 802.1X EAP-TLS and EAP-LEAP authentication for enterprise network enforcement. Compatible with the SPM-4210 Network I/O Box for remote alarm input/output and audio connection without direct camera-to-sensor wiring, simplifying multi-sensor deployments and enabling distributed I/O architecture across large sites.
Hanwha XNP-C8303RW RB Package Contents
- Hanwha XNP-C8303RW RB PTZ Camera
- High-Power PoE (HPoE) Injector
