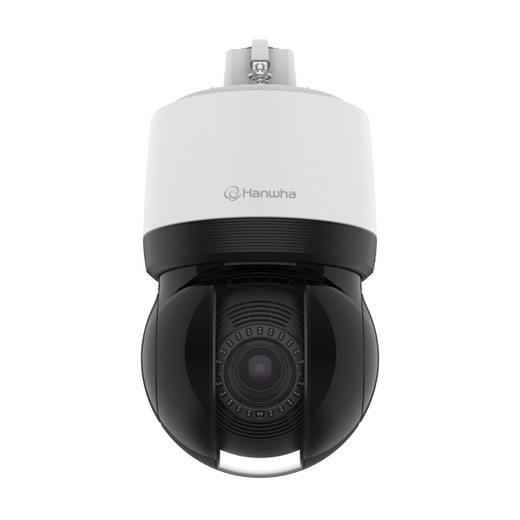

Hanwha XNP-C6403R RB Overview
The Hanwha XNP-C6403R RB is a robust outdoor PTZ camera engineered for demanding surveillance environments where extended range, precision tracking, and intelligent analytics are essential. Equipped with 2MP resolution at 60fps, 40x optical zoom optics (4.25mm–170mm), and 200-meter adaptive IR, this camera delivers clear detail across expansive coverage areas in day and night conditions. Purpose-built for security integrators deploying critical infrastructure, transportation, and perimeter monitoring solutions, the XNP-C6403R RB combines mechanical reliability with AI-powered analytics and extreme environmental durability.
Hanwha XNP-C6403R RB Key Features
- High-Speed 2MP Capture with 60fps Performance: Delivers smooth video at 2 megapixel resolution with full 60fps frame rate, enabling crisp motion capture for fast-moving subjects and reducing motion blur in critical security applications.
- 40x Optical Zoom with Precision Optics: 4.25mm–170mm lens provides extensive focal range from wide-angle environmental monitoring to tight facial detail capture, eliminating the need for multiple fixed cameras in wide-area deployments.
- Extreme WDR Technology (150dB): Dynamic range of 150dB accommodates simultaneous backlit and shadow areas—critical for entrance monitoring, parking structures, and scenes with extreme lighting contrast; available in both Day/Night ICR and BLC/HLC modes for maximum scene clarity.
- Adaptive Wise IR with 200m Range: Built-in infrared with 200-meter effective range adapts to distance and scene reflectivity, delivering usable night-vision imagery across extended perimeters without washing out reflective surfaces.
- AI-Powered Object Detection & Tracking: Native AI engine identifies Person, Face, Vehicle, and License Plate objects; supports automatic object auto-tracking and target lock for continuous subject monitoring; integrates with intelligent video analytics (IVA) for virtual line crossing, area intrusion, loitering detection, and directional analysis.
- Comprehensive Video Analytics Suite: Includes motion detection, tampering alerts, defocus detection, and fog detection; sound classification available with optional SPM-4210 Network I/O Box for audio-triggered alarms.
- Multi-Codec Support for Bandwidth Optimization: Native H.265, H.264, and MJPEG encoding allows flexible bitrate control; H.265 reduces bandwidth by up to 50% vs. H.264 for high-frame-rate deployments.
- IP66/IK10 Rugged Construction with Integrated Heater: Sealed to IP66 (dust/water ingress) and IK10 (vandal impact resistance); integrated lens heater automatically removes water droplets and snow accumulation, critical for exposed outdoor locations.
- NEMA 4X and TS 2 Compliance: Stainless-steel construction or equivalent corrosion resistance; meets NEMA 4X (outdoor enclosure) and NEMA-TS 2 (2.2.8, 2.2.9) standards for severe weather and salt-spray environments.
- FIPS 140-2 Cryptographic Security: Firmware-level encryption and secure authentication protect against unauthorized access; supports 802.1X network authentication for enterprise integration.
- HPoE Powered with Included Injector: Operates on High Power over Ethernet (HPoE); HPoE injector included in package, eliminating separate power supply installation at remote mounting locations.
- Extended Operating Temperature Range: Functional from −40°C to +55°C (−40°F to +131°F), enabling reliable deployment in arctic, desert, and thermal cycling environments without seasonal disengagement.
Hanwha XNP-C6403R RB Integration & Compatibility
The XNP-C6403R RB integrates with the SPM-4210 Network I/O Box (sold separately) to extend alarm and audio connectivity via PoE, eliminating the need to run dedicated control wiring to the camera location. The SPM-4210 provides 4 configurable I/O ports, audio input/output, and PoE-powered operation (max 4.5W), with support for G.711/G.726 audio compression and industry-standard protocols including ONVIF, RTSP, HTTP/HTTPS, 802.1X, and SUNAPI HTTP API. This modular approach simplifies integration into existing VMS platforms and enables distributed alarm management across multi-site surveillance networks. Compatible NVR and VMS systems supporting ONVIF Profile S/T should reference manufacturer documentation for specific certification status.
Hanwha XNP-C6403R RB Package Contents
- Hanwha XNP-C6403R RB PTZ Camera
- HPoE Injector
