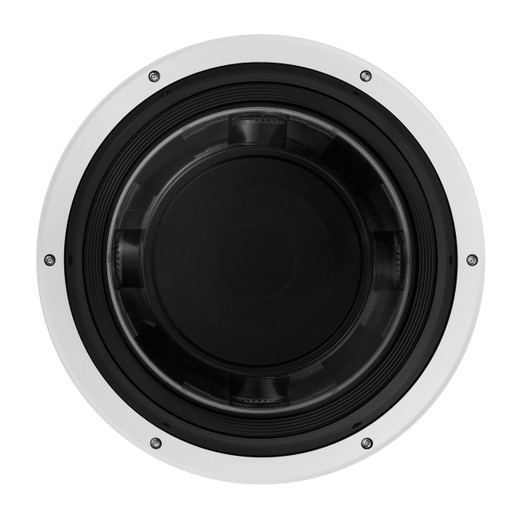

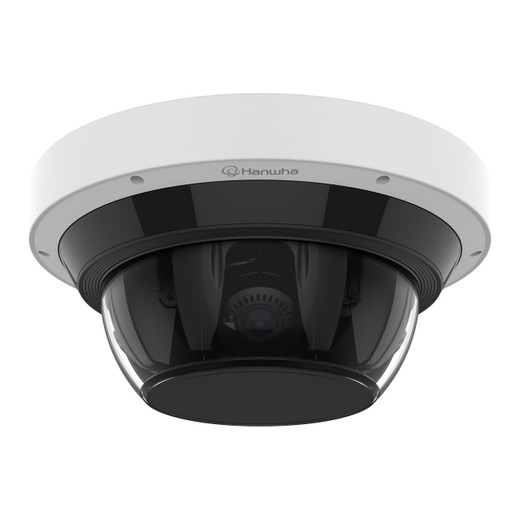

Hanwha PNM-9085RQZ1S RB Overview
The Hanwha PNM-9085RQZ1S RB is an NSF-certified, multi-sensor network dome camera engineered for outdoor vandal-resistant surveillance. This 5MP, 4-channel multi-directional camera delivers simultaneous coverage from a single compact dome housing, making it ideal for perimeter, entrance, and multi-zone coverage in retail, transportation, hospitality, and critical infrastructure environments. The RB rebox configuration provides NSF certification for food service and hygienic deployment scenarios.
Hanwha PNM-9085RQZ1S RB Key Features
- 5MP Multi-Directional 4-Channel Architecture: Four independent 5MP sensor streams enable simultaneous multi-directional surveillance from a single mounting point, reducing installation complexity and infrastructure costs while maintaining full resolution coverage across multiple zones.
- Motorized Pan-Tilt-Roll-Zoom (PTRZ) Support: Integrated motorized control enables dynamic scene composition and real-time repositioning without additional PTZ actuators, allowing operators to adjust coverage on demand.
- 4.13–9.4mm Motorized Varifocal Lens with 2.3x Zoom: Motorized lens adjustment optimizes field of view for each directional sensor without manual intervention, accommodating variable deployment distances and scene requirements within a single unit.
- 30-Meter IR Illumination Range: Built-in infrared lighting extends surveillance capability into complete darkness, supporting continuous monitoring across 24-hour operations and low-light perimeter applications.
- Advanced Video Compression with WiseStream II: Dual H.265 and H.264 codec support combined with WiseStream II intelligent bitrate optimization reduces storage demand while maintaining forensic image quality at 30 fps at 5MP resolution.
- 120dB Wide Dynamic Range (WDR): Extreme WDR processing preserves detail in scenes with severe backlighting, reflections, and mixed lighting conditions—critical for entrance monitoring, parking structures, and retail corridors with variable illumination.
- True Day/Night Capability with Hallway View and HLC: Automatic infrared cut filter (ICR) switching enables seamless color-to-monochrome transition; Hallway View optimizes aspect ratio for corridor deployments; High Light Compensation (HLC) prevents blooming in bright zones.
- Built-In Video Analytics and Defocus Detection: Native on-camera analytics enable motion detection, tampering alerts, and defocus warnings without external processing, reducing VMS load and enabling rapid response to coverage loss or environmental obstruction.
- IP66 Weatherproof / IK10 Vandal-Resistant / NEMA 4X Corrosion Resistant: Sealed housing rated IP66 (dust- and jet-water-tight), IK10 impact resistance (20 joule rated), and NEMA 4X stainless-steel construction withstand harsh outdoor environments, salt air exposure, and physical tampering attempts.
- Extended Operating Temperature Range: Rated –40°C to +55°C (–40°F to +131°F) ensures reliable operation across extreme climates from arctic facilities to desert locations without performance degradation.
- 4x microSD Card Slots for Distributed Edge Storage: Independent microSD expansion on each directional channel enables local recording and redundancy, supporting backup recording and extended offline retention without reliance on centralized NVR.
- Bi-Directional Audio with Alarm I/O: Integrated microphone and speaker support two-way communication for access control integration, emergency announcements, and real-time operator interaction; 1/1 alarm input/output connections enable integration with door controllers, strobes, and external sensors.
- HPoE Injector Included: Hanwha High Power over Ethernet injector supplied with camera eliminates separate midspan procurement, simplifying deployment and reducing bill-of-materials cost.
Hanwha PNM-9085RQZ1S RB Integration and Deployment
The PNM-9085RQZ1S RB operates as an ONVIF-compliant network camera, integrating with standards-based VMS platforms and control systems. The 4-channel multi-directional architecture streams independent RTSP feeds, allowing each directional view to be assigned to separate recording streams, analytics rules, and display layouts within compatible NMS/VMS environments. Motorized lens and PTRZ functions are controllable via standard PTZ protocols (Pelco-P/D, ONVIF PTZ), enabling remote scene adjustment and zoom control from operator workstations. The camera supports both H.265 and H.264 compression with MJPEG fallback, ensuring compatibility with legacy and modern recording infrastructure. Alarm relay outputs interface with external devices (door strikes, gate operators, alarm panels), while audio input/output enables integration with public address systems and two-way intercom solutions. Mounting orientation supports ceiling, wall, and pendant installation; the compact dome form factor minimizes visual footprint while the vandal-resistant shell resists ball-peen hammer impacts and physical abuse common in high-security or high-traffic environments.
Hanwha PNM-9085RQZ1S RB Package Contents
- PNM-9085RQZ1S RB multi-sensor dome camera
- High Power over Ethernet (HPoE) injector
