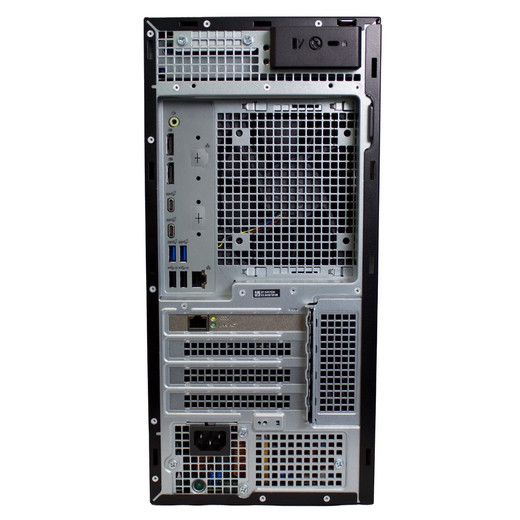

Hanwha WRT-P-3104W-16TB RB Rebox: Mini-tower form factor WAVE

Hanwha WRT-P-3104W-16TB RB Overview

The Hanwha WRT-P-3104W-16TB RB is a compact mini-tower form factor Wisenet WAVE Network Video Recorder designed for single-site deployment or as a scalable addition to existing Wisenet WAVE systems. This pre-configured appliance combines server and client functionality in a single unit, managing up to 170 Mbps of recording throughput across up to 64 channels with 16TB of raw storage capacity. It arrives with Wisenet WAVE VMS and 4 Professional licenses included, enabling rapid deployment with minimal configuration overhead.

Hanwha WRT-P-3104W-16TB RB Key Features

• Dual-Purpose Server/Client Architecture: Runs Wisenet WAVE VMS natively on Windows 11 IoT Enterprise 2024 or Ubuntu Linux 22.04 LTS, supporting both recording and client functionality within a single compact appliance.
• Up to 64-Channel Capacity: Manage up to 64 IP camera channels through a single unified Wisenet WAVE system, scalable for small to mid-sized deployments or distributed multi-site installations.
• 170 Mbps Recording Bandwidth: Handles simultaneous multi-camera HD and 4K stream recording at full throughput, ensuring no bottleneck for high-resolution or high-frame-rate camera configurations.
• 16TB Raw Storage Expansion: Ships with single 3.5-inch SATA HDD bay pre-populated with 16TB capacity; up to 3 total 3.5-inch SATA HDD slots support additional storage scaling without external enclosures.
• Intel Core i3 14th Generation Processor: 14th Gen Intel Core i3 with 16GB DDR4 RAM and 256GB M.2 SSD OS drive ensure smooth multi-stream decoding, live playback, and analytics processing for enterprise-class surveillance workflows.
• Dual Gigabit Ethernet NICs: Two 1GbE RJ45 ports (one onboard, one PCIe NIC) enable network redundancy, separate management and recording traffic segmentation, and resilience against single-link failure.
• Comprehensive Video Output Options: Two DisplayPort outputs with one DP-to-HDMI adapter included for dual-monitor multi-screen wall layouts, live monitoring walls, or evidence review stations without external converters.
• Rich USB Connectivity: Four USB 3.2 Gen 2 ports (two rear standard, two Type-C), two USB 3.2 Gen 2x2 Type-C ports on front, plus two USB 2.0 rear and two USB 3.2 Gen 1 front ports for keyboard, mouse, external drives, and forensic evidence export.
• Integrated Audio Support: 3.5mm universal audio input on front and 3.5mm audio output on back support integrated microphone and speaker functionality for audio analytics, event confirmation, and two-way communication scenarios.
• 500W 80 Plus Platinum Power Supply: Highly efficient single power supply rated to 500W maximum draw with 80 Plus Platinum certification reduces operational cost and heat output in 24/7 surveillance deployments.
• Enterprise-Ready Form Factor: Compact 14.68-inch height, 6.81-inch width, 16.54-inch depth mini-tower design fits standard server racks, under-desk mounting, or secure closet deployment in space-constrained facilities without requiring external rackmount conversion.
• Wide Operating Range: Supports 50°F to 95°F (10°C to 35°C) operating temperature with -40°F to 149°F (-40°C to 65°C) storage range, suitable for climate-controlled control rooms and edge deployments in thermally variable environments.

Hanwha WRT-P-3104W-16TB RB Integration & Compatibility

The WRT-P-3104W-16TB RB ships with Wisenet WAVE VMS pre-installed and 4 Professional licenses, eliminating software acquisition and licensing delays. The dual GbE NIC architecture supports network segregation for security-focused deployments where recording and management traffic require isolation. Windows 11 IoT Enterprise 2024 and Ubuntu Linux 22.04 LTS options provide platform flexibility for existing IT infrastructure alignment. DisplayPort dual-output capability integrates with standard commercial displays and video walls without proprietary adapters. The unit operates as both recording server and client within the Wisenet WAVE ecosystem, allowing local review, playback, and event investigation without requiring separate client licensing.

Hanwha WRT-P-3104W-16TB RB Package Contents

• WRT-P-3104W-16TB RB mini-tower chassis with 1x 16TB 3.5-inch SATA HDD pre-installed
• Intel Core i3 14th Gen processor, 16GB DDR4 RAM, 256GB M.2 SSD OS drive
• Wisenet WAVE VMS software pre-installed
• 4x Wisenet WAVE Professional licenses
• Keyboard and mouse
• DisplayPort to HDMI adapter (qty 1)
• 500W 80 Plus Platinum power supply with AC power cable
