Hanwha XNV-8083RZ/KEX Powered by WN7

Hanwha XNV-8083RZ/KEX Overview

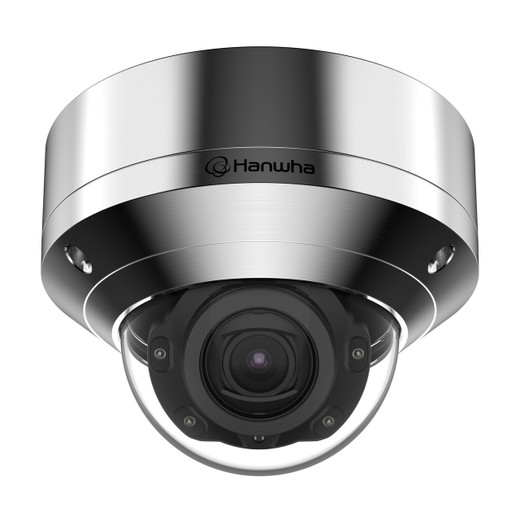

The Hanwha XNV-8083RZ/KEX is a 6MP outdoor vandal-resistant AI IR dome camera designed for demanding surveillance applications requiring robust construction and advanced analytics. Featuring a 4.4–9.3mm motorized varifocal lens (4.3x zoom), this camera delivers high-resolution capture across variable focal lengths, supported by 30m IR LED range for night operation and extremeWDR technology rated at 120dB for high-contrast environments. Built on Hanwha's WN7 AI platform, the XNV-8083RZ/KEX integrates real-time object and face detection, vehicle and license plate recognition, and virtual line/area analytics for perimeter security and traffic monitoring.

Hanwha XNV-8083RZ/KEX Key Features

• 6MP resolution at 30 fps — Captures fine detail across 6-megapixel sensor with maximum 30fps frame rate in H.265, H.264, or MJPEG compression, supporting both real-time streaming and efficient bandwidth utilization.
• 4.3x motorized varifocal lens with remote PTRZ adjustment — 4.4–9.3mm lens with powered zoom, focus, and pan/tilt control enables installers to adjust coverage remotely after deployment without physical site visits.
• 30m IR LED range with Day/Night ICR — Delivers 15m baseline and up to 30m IR viewable length depending on scene reflectivity; automatic infrared cut filter (ICR) switches between color and monochrome for optimized low-light and nighttime surveillance.
• extremeWDR 120dB dynamic range — Processes extreme lighting contrasts (sunrise/sunset, backlit scenes, mixed indoor/outdoor transition zones) to maintain detail in both bright and shadow areas simultaneously.
• AI-powered analytics on NPU engine — Detects persons, faces, vehicles, and license plates; generates virtual line crossing, area intrusion, loitering, direction analysis, and enter/exit events for proactive alerting and forensic review without server-side processing overhead.
• Triple codec support (H.265/H.264/MJPEG) — Flexible compression options optimize for bandwidth, storage, or compatibility requirements; H.265 delivers up to 50% bandwidth reduction versus H.264 at equivalent quality.
• Vandal-resistant IK10+ rated dome with hard-coated bubble — Constructed for IP6K9K water jet and IK10+ impact resistance; hard-coated dome provides optical clarity while resisting scratching and vandalism in public or high-risk deployments.
• IP66/IP67/IP6K9K environmental sealing with NEMA 4X — Rated for dustproof, high-pressure water jet, and corrosive salt-fog environments; suitable for coastal, industrial, and open-air installations.
• PoE+ power with optional 12VDC — Single PoE+ (802.3at Class 4) connection supports typical 12.1W operation with 22.5W maximum draw; alternative 12VDC option for specialized power architectures.
• Dual microSD card slots (512GB × 2) — Up to 1TB onboard edge storage for continuous or event-triggered recording; eliminates dependency on centralized NVR for critical retention periods.
• Advanced motion and event detection — Monitors defocus, tampering, fog, shock, audio detection, sound classification (via NW I/O box), and object appear/disappear events for comprehensive facility monitoring.
• Wide operating temperature -50°C to +55°C — Rated for extreme cold and heat; suitable for outdoor perimeter, parking, transportation hubs, and international deployments across climate zones.

Hanwha XNV-8083RZ/KEX Integration & Compatibility

The XNV-8083RZ/KEX supports ONVIF standards for VMS integration with Milestone, Axis Camera Station, and third-party platforms. Firmware updates are available via Hanwha Vision CloudConnector. Remote configuration, lens adjustment, and analytics tuning are managed through standard IP-based management interfaces. Metal-shielded RJ-45 connector with PoE+ input supports both standard network infrastructure and industrial-grade twisted-pair cabling. USB port facilitates firmware installation and local diagnostics during commissioning.

Hanwha XNV-8083RZ/KEX Environmental & Security Certifications

Certifications include FCC 47 CFR 15 Subpart B Class A, CE/UKCA EN55032 Class A, UL 62368-1, IEC 62471, and FIPS 140-2 for cryptographic operations. Meets ISO 20653 IP6K9K high-pressure water jet and IEC 62262 IK10+ mechanical impact standards. Storage temperature rated -50°C to +60°C with 0–90% non-condensing humidity tolerance.
