Powered by WN7, 1/2.3 12MP CMOS

Hanwha XNF-9013RV/KEX Overview

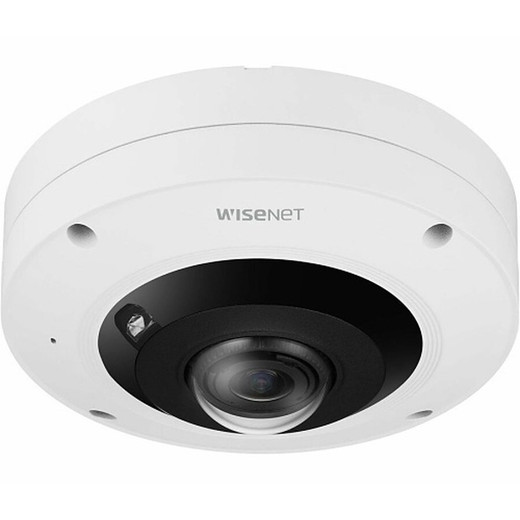

The Hanwha XNF-9013RV/KEX is a 12MP fixed fisheye network camera engineered for indoor surveillance deployments requiring wide-angle coverage and AI-driven video intelligence. This model combines high-resolution CMOS imaging with infrared capability and runs on Hanwha's WN7 platform, delivering native support for advanced analytics, secure architecture, and seamless integration into enterprise surveillance ecosystems.

Hanwha XNF-9013RV/KEX Key Features

• 12MP High-Resolution Capture: 1/2.3-inch CMOS sensor delivers 12MP resolution, ideal for wide-area monitoring with sufficient pixel density to identify individuals and assets across extended coverage zones.
• AI Analytics & Fisheye Optics: Fisheye form factor provides 360-degree hemispherical coverage, enabling single-camera deployment across large open areas. AI processing support enables intelligent video analytics including object detection and event-driven alerts.
• IR Night Vision: Integrated infrared illumination ensures 24/7 surveillance capability in low-light and dark environments without requiring external lighting infrastructure.
• WN7 AI Platform: Native support for Hanwha Vision's WN7 AI engine enables edge-based video analytics, reducing bandwidth overhead and central processing load while accelerating intelligent event detection.
• PoE Powered (IEEE 802.3af/at): Supports both standard PoE (IEEE 802.3af, Class 3; max 12.95W) and PoE+ (IEEE 802.3at, Class 4; max 23.0W), or optional 12VDC auxiliary power. Typical power draw of 9.0–9.4W enables efficient power-budget deployment.
• Advanced Compression & Streaming: Supports H.265, H.264, and MJPEG codec options with configurable bitrate profiles. Up to 10 simultaneous streaming profiles accommodate unicast delivery to 20 users and multicast streaming for bandwidth optimization.
• Enterprise-Grade Security: TPM 2.0 with FIPS 140-2 Level 2 certification, encrypted firmware, secure boot, signed firmware validation, and IEEE 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2). HTTPS, WSS (WebSocket Secure), and SRTP encryption protect data in transit. Digest authentication with brute-force attack prevention secures user access.
• Storage & Edge Computing: 4GB RAM and 512MB flash support local processing. Dual microSD/SDHC/SDxC card slots (max 512GB each; 1TB total) enable extended on-camera recording and edge analytics retention without central NVR dependency.
• ONVIF Compliance: Full ONVIF S, G, T, and M profile support ensures compatibility with third-party VMS platforms, NVRs, and ecosystem applications. SUNAPI HTTP API and Hanwha Vision Open Platform deliver programmatic integration options.
• Wide Operating Range: Operates reliably across -40°C to +60°C (-40°F to +140°F) environmental conditions, supporting deployment in non-climate-controlled spaces, warehouses, and harsh indoor environments.
• Cloud & Remote Management: Direct cloud connection support via Hanwha Vision CloudConnector enables secure remote monitoring, firmware updates, and analytics deployment without on-premises gateway infrastructure.

Hanwha XNF-9013RV/KEX Integration & Compatibility

The XNF-9013RV/KEX integrates natively with ONVIF-compliant VMS platforms including Milestone, Axis Camera Station, and third-party NVR systems via ONVIF Profile S (streaming), G (analytics), T (PTZ control), and M (metadata) profiles. SUNAPI and Hanwha Vision Open Platform APIs enable custom application development and system-level control. CloudConnector software (v2.11.04+) provides cloud-native integration and remote device management. The camera supports IPv4 and IPv6 protocols, DHCP auto-configuration, DDNS for dynamic IP environments, and UPnP/Bonjour discovery for simplified network integration. QoS and LLDP support ensure network prioritization and switch interoperability in managed enterprise environments.
