PNM-C7083RVD RB

Hanwha PNM-C7083RVD RB Overview

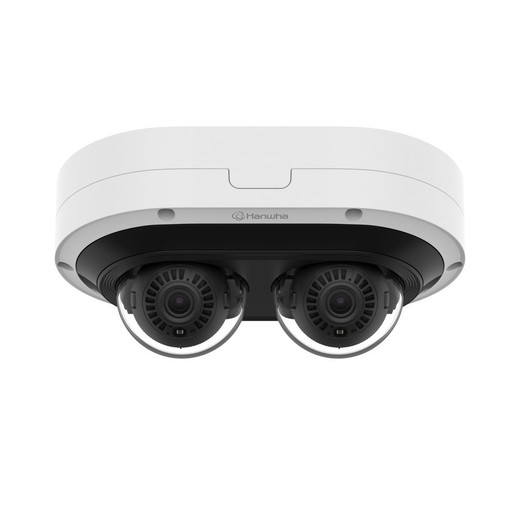

The Hanwha PNM-C7083RVD RB is a dual-channel 2MP outdoor vandal-rated network dome camera engineered for security integrators and facility managers requiring AI-driven analytics and infrared surveillance in harsh environments. This fixed multi-directional dome delivers simultaneous 1080p video from two independent 1/2.8" CMOS sensors, each equipped with 3–6mm motorized varifocal optics and 25-meter IR illumination, making it ideal for building perimeters, parking areas, and outdoor entry points where object detection, license plate recognition, and line-crossing analytics are operationally critical.

Hanwha PNM-C7083RVD RB Key Features

• Dual 2MP Sensors at 30 fps — Two independent 1/2.8" CMOS imagers each capture 1920x1080 resolution at 30 fps (25 fps PAL), with multiple output resolutions from 1920x1080 down to 320x240 for flexible bandwidth management and edge processing.
• 3–6mm Motorized Varifocal Lens per Channel — 2x motorized zoom on each sensor provides 107° to 56.3° field of view range, enabling security integrators to adapt coverage during commissioning without lens swaps and supporting both wide perimeter and focused identification modes from a single fixture.
• 25-Meter IR LED Range with Day/Night ICR — Integrated IR illumination extends night detection to 82 feet; automatic Day/Night (ICR) switching preserves color during daylight and switches to grayscale for maximum IR efficiency in darkness, supported by extreme WDR (120 dB dynamic range) for high-contrast outdoor scenes.
• AI-Driven Object & License Plate Detection — TPM 2.0 secure processing enables onboard Person, Face, Vehicle, and License Plate detection without cloud dependency; handover analytics automatically trigger system events and integrator notifications based on AI confidence thresholds.
• Advanced Video Analytics Engine — Virtual line crossing, area intrusion, loitering detection, direction tracking, defocus detection, motion, tampering, audio detection, and sound classification provide layered alerting for perimeter security, anti-theft, and facility monitoring use cases.
• Triple Codec Support (H.265/H.264/MJPEG) — H.265 main-profile compression reduces bandwidth by up to 50% versus H.264 without sacrificing quality; MJPEG fallback ensures compatibility with legacy VMS platforms; selectable encoding per channel accommodates bandwidth-constrained network environments.
• PoE+ Powered with Micro USB Installation Port — Single PoE+ (IEEE 802.3at Class 4) connection delivers up to 20W (typical 15.5W) eliminating separate power runs; USB micro-B port simplifies initial setup, lens focus adjustment, and troubleshooting on-site.
• IP66/NEMA 4X/IK10 Ruggedized Design — Hard-coated polycarbonate dome resists vandalism (IK10: 20J impact rating) and environmental ingress; IP66 sealing and NEMA 4X corrosion resistance certified for coastal, industrial, and high-temperature mounting; operates reliably from –40°C to +55°C (–40°F to +131°F).
• Edge Storage with AES-256 Encryption — microSD/SDHC/SDxC card slot supports up to 512GB local recording; SD card partition encryption (AES-256) and TPM 2.0 secure storage protect footage from unauthorized access; Hanwha-certified cards recommended for reliability.
• Enterprise Cybersecurity Certification — FIPS 140-2 Level 2 TPM, signed firmware, secure boot, IEEE 802.1X network authentication (EAP-TLS, EAP-PEAP), and HTTPS/SRTP encrypted streams meet federal and commercial security baselines; TAA-compliant model (PNM-C7083RVD/KEX) available for U.S. federal procurement.
• ONVIF Profile S & T Compatibility — Supports standardized ONVIF streaming, imaging, and device management protocols ensuring vendor-neutral VMS integration; Hanwha Vision Open Platform APIs and SUNAPI (HTTP API) enable custom application development and third-party system bridging.
• Multiple Streaming Profiles & Unicast/Multicast — Up to 5 simultaneous video profiles per channel support legacy single-stream recording, modern H.265 surveillance, and mobile viewing from one camera; multicast delivery reduces network overhead for large deployments.

Hanwha PNM-C7083RVD RB Integration & Compatibility

The PNM-C7083RVD RB integrates with ONVIF Profile S and Profile T compliant VMS platforms including Milestone Xprotect, Hanwha Vision SmartLog, and third-party ecosystems via standardized RTSP/RTP streaming. IPv4 and IPv6 networking with DHCP, DNS, DDNS, and UPnP enable rapid deployment in mixed network environments. The camera supports Hanwha Vision's CloudConnector service for direct cloud edge recording and remote management. Mounting compatibility is standard dome format; integrators should verify conduit hole sizing and bracket specifications during planning. ONVIF and REST API access via HTTP/HTTPS allows integration with access control, event management, and NVR systems without proprietary gateways.
