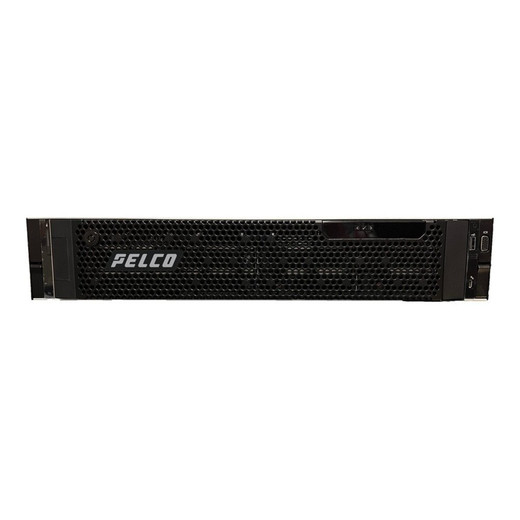

Pelco VXP-P3-48-5N VideoXpert Pro 48Ch NVR Server

Pelco VXP-P3-48-5N VideoXpert Pro 48Ch NVR Server

The Pelco VXP-P3-48-5N is a professional-grade network video recorder delivering 48-channel surveillance capability with 5TB raw RAID 5 storage. Built on Windows Server 2019 architecture, this enterprise NVR integrates seamlessly with Active Directory environments, enabling centralized user management, group policy enforcement, and domain-joined operations—critical for organizations requiring IT governance and compliance standards.

Key Features

• 48-channel video recording capacity
• 5TB raw storage configured in RAID 5
• Windows Server 2019 operating system with Active Directory support
• Intel Xeon Silver processor for reliable performance
• 16GB RAM for multi-stream processing
• Dual 1GbE network interfaces for redundancy
• iDRAC remote management for out-of-band administration
• NDAA Section 889 compliant for federal procurement
• 5-year manufacturer warranty

Technical Specifications

The VXP-P3-48-5N operates on a robust Intel Xeon Silver processor platform with 16GB of system RAM, ensuring stable performance across 48 simultaneous video streams. Dual 1GbE network interfaces provide redundancy and load distribution across enterprise networks. iDRAC remote management enables IT teams to monitor system health, perform firmware updates, and troubleshoot issues without physical access. Windows Server 2019 licensing is verified for inclusion at deployment; confirm terms with your Pelco representative before installation.

Applications & Deployment

Ideal for large-scale surveillance deployments in commercial facilities, industrial sites, government installations, and regulated environments. The Active Directory integration makes this variant the preferred choice over the VXP-P3-48-5T when corporate IT policy mandates domain membership and centralized credential management. NDAA Section 889 compliance supports federal, state, and local government procurement requirements. Engineered for professional installation workflows and enterprise-grade operational standards.

Support & Warranty

Protected by Pelco's 5-year warranty, this NVR is supported through authorized distributor channels and Pelco's global service network. Enterprise customers benefit from priority technical support and expedited RMA processes through authorized resellers.
