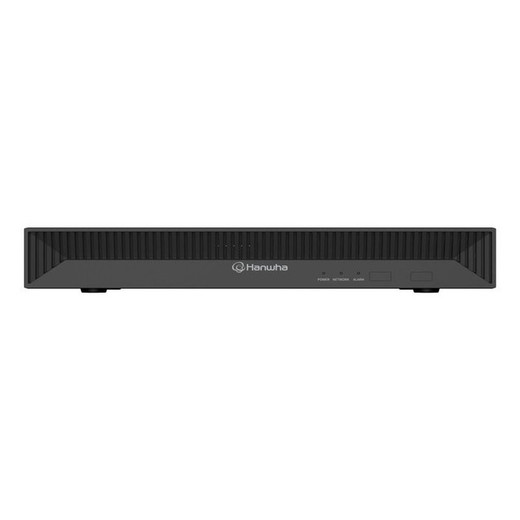

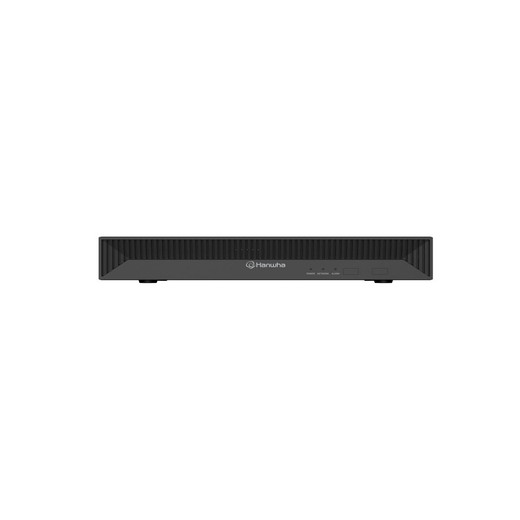

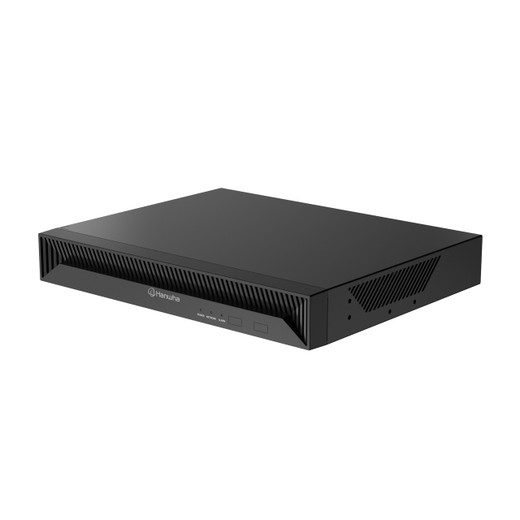

Hanwha AIB-800A-OP Open version AI appliance featuring NVIDIA

Hanwha AIB-800A-OP Overview

The Hanwha AIB-800A-OP is an 8-channel AI analytics appliance purpose-built for security integrators and system installers who need to deploy AI-powered video analysis without replacing existing cameras. Built around the NVIDIA Jetson Orin NX 8GB module with 256GB NVMe SSD storage and pre-installed NVIDIA JetPack v5.1.1, the AIB-800A-OP provides a ready-to-deploy foundation for custom AI software development and integration with third-party VMS platforms.

Hanwha AIB-800A-OP AI Deployment & Integration

The AIB-800A-OP transforms conventional surveillance systems into AI-enabled environments. It integrates with any ONVIF-compliant camera and popular VMS platforms including WAVE, Genetec, and Milestone, enabling forensic search and real-time analytics without system overhaul. Pre-installed JetPack v5.1.1 accelerates time-to-deployment for partners developing custom AI models and analytics pipelines.

Hanwha AIB-800A-OP Key Specifications

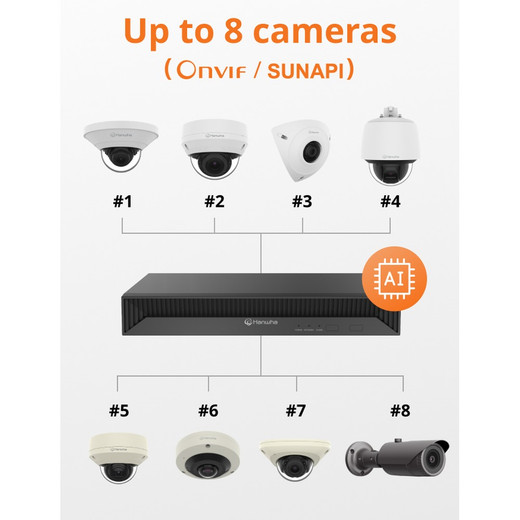

• 8-channel input capacity with AI engine support for motion detection, object detection (person, face, vehicle, license plate)
• Processor: NVIDIA Jetson Orin NX 8GB System-on-Module (SOM)
• Storage: 256GB NVMe SSD
• Network: 1 × Gigabit Ethernet (RJ-45); ONVIF Protocol; TCP/IP, UDP/IP, RTP, RTSP, HTTP, HTTPS, DHCP, DNS, DDNS, SNMP support
• Alarm I/O: 8 alarm inputs (terminal block), 4 relay outputs with NO/NC/COM configurations
• Power: 12V, 4A adapter; 28W typical consumption; 100-240VAC ±10%, 50/60Hz input
• Operating Temperature: 0°C to 40°C (32°F to 104°F); Humidity: 20-85% RH
• Mounting: 1U rack-mount brackets included
• Dimensions: 300 × 47.6 × 240.9 mm (11.81 × 1.87 × 9.48 in); Weight: 1.39 kg (3.06 lbs)
• OS Support: Windows 11/10, macOS 10.13+
• Web Browser: Google Chrome, Microsoft Edge, macOS Safari
• USB: 1 × USB 3.0 (rear, debug)
• LED Status Indicators: Power, Network, Alarm

Hanwha AIB-800A-OP Package Contents

• AIB-800A-OP appliance with pre-installed NVIDIA JetPack v5.1.1
• 1U rack-mount brackets
• Power supply (12V, 4A adapter)
