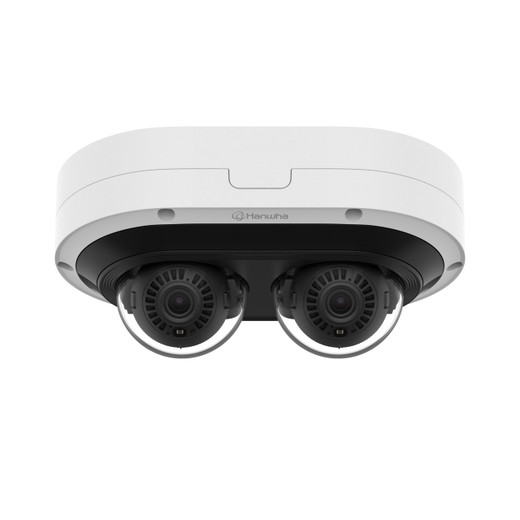

Hanwha PNM-12082RVDB Overview
The Hanwha PNM-12082RVDB is an outdoor network dome camera purpose-built for vandal-resistant surveillance in harsh environments. Featuring dual 6MP sensors (12MP aggregate output) with a motorized varifocal lens spanning 3.4–6.8mm (95.08–47.64° field of view), this camera delivers high-resolution imaging with flexible focal length adjustment. With 25m infrared illumination, extremeWDR up to 120dB, and IK10 impact resistance, the PNM-12082RVDB is engineered for vulnerable outdoor installations requiring both image clarity and rugged durability.
Hanwha PNM-12082RVDB Key Features
- Dual 6MP Sensor Array (12MP Total): Two independent 6MP sensors deliver 12MP aggregate resolution at 15 fps, providing redundancy and enhanced spatial coverage in a compact dome form factor.
- Motorized Varifocal Lens (3.4–6.8mm): Dual motorized varifocal lenses enable remote focus and zoom adjustment without physical access, reducing on-site installation time and allowing post-deployment framing refinement across a 95.08° to 47.64° viewing angle.
- 25m IR Illumination with Day/Night (ICR): Integrated 25m infrared range with automatic infrared cut filter (ICR) and manual switching ensures continuous operation across lighting conditions; 82 ft IR visibility supports perimeter and entry monitoring in complete darkness.
- Extreme WDR (120dB Dynamic Range): 120dB wide dynamic range processing handles simultaneous backlighting and shadow detail, critical for mixed-lighting environments such as parking structures, loading docks, and building perimeters with reflective surfaces.
- Triple Codec Support (H.265/H.264/MJPEG): Configurable codec selection—including H.265 for bandwidth efficiency and H.264 for universal compatibility—accommodates diverse NVR and VMS requirements without transcoding overhead.
- IK10 Vandal Resistance with Hard-Coated Dome: IK10 impact rating and hard-coated polycarbonate bubble withstand physical tampering and intentional strikes, suitable for high-risk outdoor perimeters, critical infrastructure, and unattended facilities.
- IP66 and NEMA4X Weatherproofing: Full dust and water ingress protection rated IP66 and NEMA4X accommodates coastal salt spray, heavy rain, and temperature extremes from –40°C to +55°C (–40°F to +131°F) without enclosure modifications.
- Advanced Analytics Event Suite: Embedded analytics include defocus detection, directional detection, motion detection, appear/disappear events, enter/exit triggers, loitering detection, tampering alerts, virtual line crossing, audio detection, and sound classification for automated incident response and forensic review.
- Digital Image Stabilization (DIS): DIS compensates for camera vibration and building sway, preserving sharp imagery in installations on moving platforms or flexible mounting structures.
- PoE+ Power with Metal-Shielded RJ-45: Single 802.3at PoE+ cable delivers power and data; metal-shielded RJ-45 connector provides EMI immunity in electrically noisy environments (HVAC, motor-driven equipment, high-voltage systems).
- USB Port for Simplified Installation: USB connectivity streamlines firmware updates and configuration without requiring network access, reducing commissioning time on new deployments.
- microSD Card Storage (Up to 512GB): Onboard microSD slot supports up to 512GB local recording, enabling edge storage for bandwidth-constrained sites or as failsafe backup independent of central NVR infrastructure.
- FIPS 140-2 Cryptographic Compliance: FIPS 140-2 certification ensures secure communication and credential protection, meeting government procurement and enterprise security policy requirements.
Hanwha PNM-12082RVDB Integration & Compatibility
The PNM-12082RVDB is ONVIF-compatible, ensuring integration with standards-based video management systems and third-party NVRs without proprietary gateway requirements. The camera supports multiple codec streams simultaneously, allowing mixed H.265/H.264 output to different recording and viewing clients. Metal-shielded Ethernet connectors and USB port facilitate plug-and-play deployment in security integrator workflows. Firmware updates via USB or network eliminate on-site reconfiguration visits. The compact dome form factor mounts to standard ceiling and wall surfaces using industry-standard brackets, supporting horizontal and pendant installations typical of outdoor canopy, soffit, and overhang applications.
