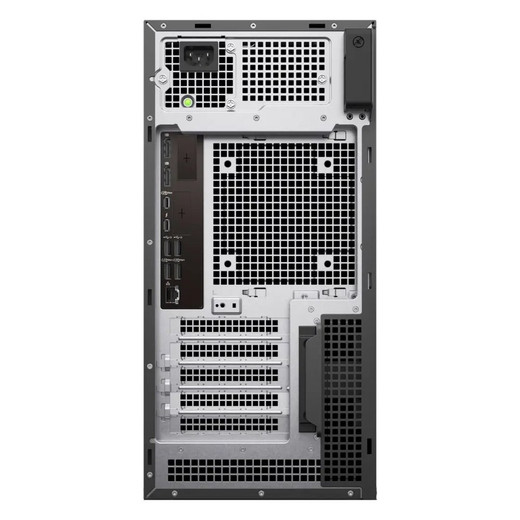

Hanwha WRT-P-5205L-4TB Mini-tower form factor WAVE Network Video

Hanwha WRT-P-5205L-4TB Overview

The Hanwha WRT-P-5205L-4TB is a compact mini-tower network video recording server purpose-built for enterprise surveillance deployments requiring integrated Wisenet WAVE video management system functionality. Shipped with Wisenet WAVE pre-installed and configured, this recorder delivers 470 Mbps recording throughput with 4TB raw storage capacity and supports up to 64 channels of ONVIF-conformant and Wisenet IP camera feeds. Designed for integration-ready indoor deployments, the WRT-P-5205L-4TB combines processing power, network flexibility, and license-included architecture to eliminate software provisioning delays.

Hanwha WRT-P-5205L-4TB Key Features

• Wisenet WAVE Pre-Installed & Licensed: Ships with Wisenet WAVE video management system pre-loaded and configured on Ubuntu 22.04 LTS, plus (4) Wisenet WAVE Professional licenses included—eliminating software procurement and activation delays for initial deployments
• High-Throughput Recording Architecture: Delivers up to 470 Mbps recording bandwidth capacity, enabling simultaneous ingest from multiple high-resolution IP cameras without bottleneck constraints typical of smaller recorders
• Scalable Raw Storage: Configured with 4TB raw storage in this model; expandable architecture supports up to 36TB raw capacity via (3) front hot-swappable 3.5-inch drive bays, allowing retention scaling without hardware replacement
• Dual Network Interface Design: Includes (1) 1 GbE NIC and (1) 5 GbE NIC, enabling segregated management and recording traffic paths for improved network isolation and throughput utilization in carrier-grade deployments
• Professional-Grade Processor & Memory: Intel Core Ultra 5 processor with 16GB RAM and 512GB M.2 SSD OS drive provide responsive performance for real-time playback, search, and VMS operations across 64-channel channel capacity
• Universal IP Camera Compatibility: Supports both Wisenet proprietary cameras and ONVIF Profile S conformant IP cameras, ensuring flexibility to mix vendor equipment and protect existing camera investments
• Comprehensive Display & I/O: Dual DisplayPort video outputs (with DisplayPort-to-HDMI adapter included) accommodate multi-monitor control room setups; front-panel USB 3.2 Gen1/Gen2 and rear USB ports enable rapid evidence export and peripheral integration
• Enterprise-Class Power & Thermal Design: Single 1500W 80 Plus Platinum power supply with wide voltage tolerance (100–240 VAC) and operating temperature range of 50°F to 95°F support data center and non-climate-controlled network closet installations
• 5-Year Hardware Warranty: Includes 5-Year Next Business Day Keep Your Hard Drive Warranty, minimizing service risk and downtime exposure in continuous operation environments
• Complete Package with Control Interface: Includes USB keyboard and mouse to enable immediate operational deployment without additional peripheral procurement

Hanwha WRT-P-5205L-4TB Integration & Compatibility

The WRT-P-5205L-4TB operates as a native Wisenet WAVE appliance and maintains full ONVIF Profile S compliance for third-party camera integration. The dual network interface architecture (1 GbE + 1 5 GbE) enables deployment strategies that isolate recording traffic from management VLANs, supporting enterprise security policies requiring network segmentation. Ubuntu 22.04 LTS operating system provides long-term stability and community security support through Canonical, with ability to integrate into standard IT infrastructure management workflows. The system supports up to 64 concurrent camera channels, making it suitable for small-to-mid-scale multi-site deployments or high-density single-site implementations.

Hanwha WRT-P-5205L-4TB Package Contents

• WRT-P-5205L-4TB mini-tower recording server with 4TB raw storage
• Wisenet WAVE VMS pre-installed and configured
• (4) Wisenet WAVE Professional licenses
• (1) DisplayPort to HDMI adapter
• USB keyboard
• USB mouse
